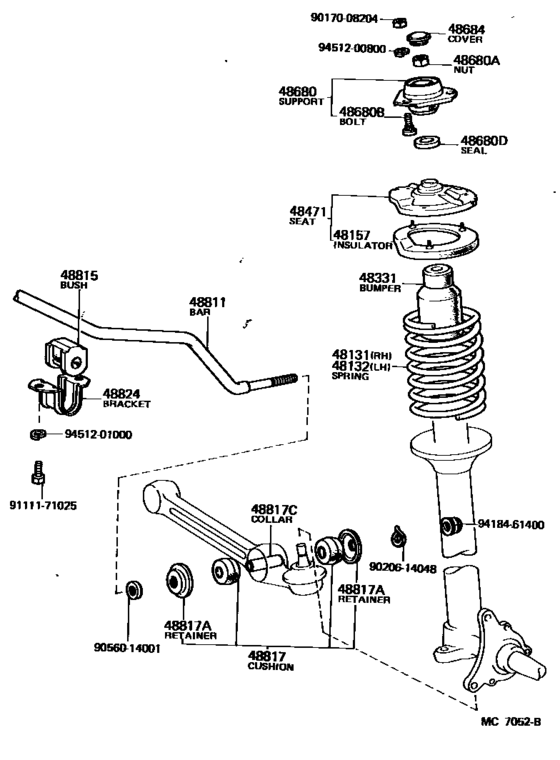

Front Spring & Shock Absorber ([08.1980 - ] (8008- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-10110 Spring, Front Coil, RhFRONT COIL, RH [08.1982 - 12.1983] KP61 |
48131-10110 |
US $103.38 |
||
| replacement | |||||
|
48131
|
48131
48132-10110
Spring, Front Coil, Rh
[08.1982 - 12.1983] KP61 |
48132-10110 |
— | ||
|
48131
|
48131
48131-10140 Spring, Front Coil, RhFRONT COIL, RH [08.1980 - 08.1982] KP61..USA W/AIR CONDITIONING |
48131-10140 |
US $107.74 |
||
|
48131
|
48131
48132-10120 Spring, Front Coil, RhFRONT COIL, RH [08.1980 - 08.1982] KP61 |
48132-10120 |
US $107.74 |
||
|
48132
|
48132
48131-10140 Spring, Front Coil, RhFRONT COIL, RH [08.1980 - 08.1982] KP61 |
48131-10140 |
US $107.74 |
||
|
48132
|
48132
48131-10150 Spring, Front Coil, LhFRONT COIL, LH [08.1980 - 08.1982] KP61..USA W/AIR CONDITIONING |
48131-10150 |
US $122.30 |
||
|
48132
|
48132
48131-10160 Spring, Front Coil, RhFRONT COIL, RH [08.1982 - 12.1983] KP61 |
48131-10160 |
US $115.02 |
||
|
48157
|
48157
48157-10010
Insulator, Front Coil Spring, Upper
[08.1980 - 12.1983] KP61 |
48157-10010 |
— | ||
|
48331
|
48331
48331-10050 Bumper, Front Spring, No.1FRONT SPRING, NO.1 [08.1980 - 12.1983] KP61 |
48331-10050 |
US $15.72 |
||
|
48471
|
48471
48045-10020
Seat, Front Spring, Upper
[08.1980 - 12.1983] KP61 |
48045-10020 |
— | ||
|
48680
|
48680
48680-10040
Support Assy, Front Suspension
[08.1980 - 12.1983] KP61 |
48680-10040 |
— | ||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[08.1980 - 12.1983] KP61 |
94182-11400 |
US $4.96 |
||
|
48680B
|
48680B
90114-08055 Bolt, Serration(For Front Support)SERRATION(FOR FRONT SUPPORT) [08.1980 - 12.1983] KP61 |
90114-08055 |
US $2.33 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[08.1980 - 12.1983] KP61 |
90303-22049 |
from US $4.02 |
||
|
48684
|
48684
48684-10010 Cover, Bearing Dust[08.1980 - 12.1983] KP61 |
48684-10010 |
from US $1.27 |
||
|
48811
|
48811
48811-10100 Bar, Stabilizer, FrontSTABILIZER, FRONT [08.1980 - 12.1983] KP61..USA |
48811-10100 |
US $247.52 |
||
|
48815
|
48815
48815-10060
Bush, Front Stabilizer Bar, No.1
[08.1980 - 12.1983] KP61 |
48815-10060 |
— | ||
|
48817
|
48817
48674-19065 Cushion, Front StabilizerFRONT STABILIZER [08.1980 - 12.1983] KP61 |
48674-19065 |
US $16.77 |
||
|
48817A
|
48817A
90948-02046 Retainer, Cushion, No.1(For Front Stabilizer Bar)CUSHION, NO.1(FOR FRONT STABILIZER BAR) [08.1980 - 12.1983] KP61 |
90948-02046 |
US $4.95 |
||
|
48817C
|
48817C
90387-14001
Collar(For Stabilizer Bar)
[08.1980 - 12.1983] KP61 |
90387-14001 |
— | ||
|
48824
|
48824
48824-10030
Bracket, Stabilizer, Front
[08.1980 - 12.1983] KP61 |
48824-10030 |
— | ||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.82 |
||
|
9020614048
|
9020614048
90206-14048 Washer, Wave(For Camshaft Drive Gear Set) |
90206-14048 |
US $1.40 |
||
|
9056014001
|
9056014001
90560-14001
New Genuine Part
|
90560-14001 |
— | ||
|
9111171025
|
9111171025
91111-71025
Bolt(For Strut Bar Setting)
|
91111-71025 |
— | ||
|
9418461400
|
9418461400
94184-61400 Nut(For Idler Arm Support) |
94184-61400 |
US $3.84 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
