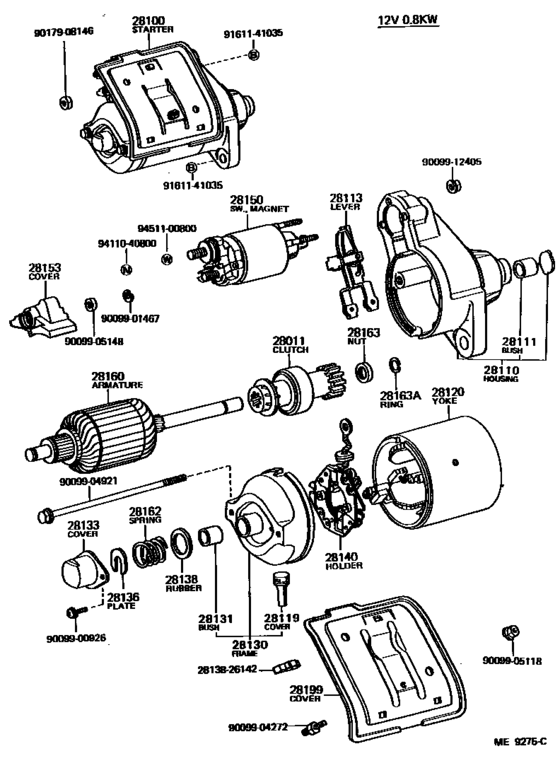

Starter ([08.1980 - 01.1983] (8008-8301)) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-15010 Clutch Sub-Assy, Starter[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28011-15010 |
US $69.01 |
||
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[08.1980 - 12.1983] 4K#..KP61 12V 1.0KW |
28011-26042 |
— | ||
|
28100
|
28100
28100-13010 Starter Assy[08.1980 - 12.1983] 4K#..KP61 12V 1.0KW,12V 1.0KW |
28100-13010 |
US $1,236.14 |
||
|
28100
|
28100
28100-13020 Starter Assy[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW,12V 0.8KW |
28100-13020 |
US $984.26 |
||
|
28110
|
28110
28110-13010 Housing Assy, Starter Drive[08.1980 - 12.1983] 4K#..KP61 12V 1.0KW |
28110-13010 |
US $80.08 |
||
|
28110
|
28110
28110-13020 Housing Assy, Starter Drive[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28110-13020 |
US $71.78 |
||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[08.1981 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28111-51011 |
— | ||
|
28113
|
28113
28113-15011 Lever, Starter Pinion Drive[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28113-15011 |
US $16.45 |
||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[08.1982 - 01.1983] 4KE..KP61..USA 12V 0.8KW |
28199-77090 |
— | ||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[03.1982 - 12.1983] 4K#..KP61 12V 1.0KW |
28120-26071 |
— | ||
|
28120
|
28120
28120-26140
Yoke Assy, Starter
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28120-26140 |
— | ||
|
28130
|
28130
28130-13010 Frame Assy, Starter Commutator End[08.1980 - 12.1983] 4K#..KP61 12V 1.0KW |
28130-13010 |
US $21.11 |
||
|
28130
|
28130
28130-13020 Frame Assy, Starter Commutator End[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28130-13020 |
US $33.78 |
||
|
28131
|
28131
90099-10134
Bearing, Starter Flange
[08.1981 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
90099-10134 |
— | ||
|
28133
|
28133
28132-15010
Cover, Starter Bearing(For Drive Housing)
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28132-15010 |
— | ||
| replacement | |||||
|
28133
|
28133
28132-15011
Cover, Bearing(For End Frame)
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28132-15011 |
— | ||
|
28136
|
28136
28136-15010
Plate, Starter Lock
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28136-15010 |
— | ||
|
28138
|
28138
28138-15010
Rubber(For Starter Bearing Cover)
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28138-15010 |
— | ||
|
28140
|
28140
28140-15010
Holder Assy, Starter Brush
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28140-15010 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1980 - 12.1983] 4K#..KP61 12V 1.0KW |
28140-26070 |
from US $16.77 |
||
|
28150
|
28150
28150-13011 Switch Assy, Magnet Starter[07.1981 - 12.1983] 4K#..KP61 12V 1.0KW |
28150-13011 |
US $347.98 |
||
|
28150
|
28150
28150-15012
Switch Assy, Magnet Starter
[08.1981 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28150-15012 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[08.1981 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28150-37011 |
— | ||
|
28153
|
28153
28159-15010
Cover, Magnet Switch
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28159-15010 |
— | ||
|
28160
|
28160
28160-15010 Armature Assy, Starter[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28160-15010 |
US $230.05 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[08.1980 - 12.1983] 4K#..KP61 12V 1.0KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1980 - 12.1983] 4K#..KP61 12V 1.0KW |
28160-26071 |
— | ||
|
28162
|
28162
28162-15010
Spring, Starter Brake
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28162-15010 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
90099-07047 |
— | ||
|
28199
|
28199
28199-13011
Cover, Starter
[07.1981 - 12.1983] 4K#..KP61 12V 1.0KW |
28199-13011 |
— | ||
|
28199
|
28199
28199-26131
Cover, Starter
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28199-26131 |
— | ||
| replacement | |||||
|
28199
|
28199
28199-15110
Cover, Starter
[08.1980 - 01.1983] 4K#..KP61..USA 12V 0.8KW |
28199-15110 |
— | ||
|
2813826142
|
2813826142
28138-26142
Rubber(for Starter Bearing Cover)
|
28138-26142 |
— | ||
|
9009900926
|
9009900926
90099-00926
New Genuine Part
|
90099-00926 |
— | ||
|
9009901467
|
9009901467
90099-01467
New Genuine Part
|
90099-01467 |
— | ||
|
9009904272
|
9009904272
90099-04272
New Genuine Part
|
90099-04272 |
— | ||
|
9009904921
|
9009904921
90099-04921
New Genuine Part
|
90099-04921 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9009915148
|
9009915148
90099-15148
New Genuine Part
|
90099-15148 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161141035
|
9161141035
91611-41035
New Genuine Part
|
91611-41035 |
— | ||
| replacement | |||||
|
9161141035
|
9161141035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
