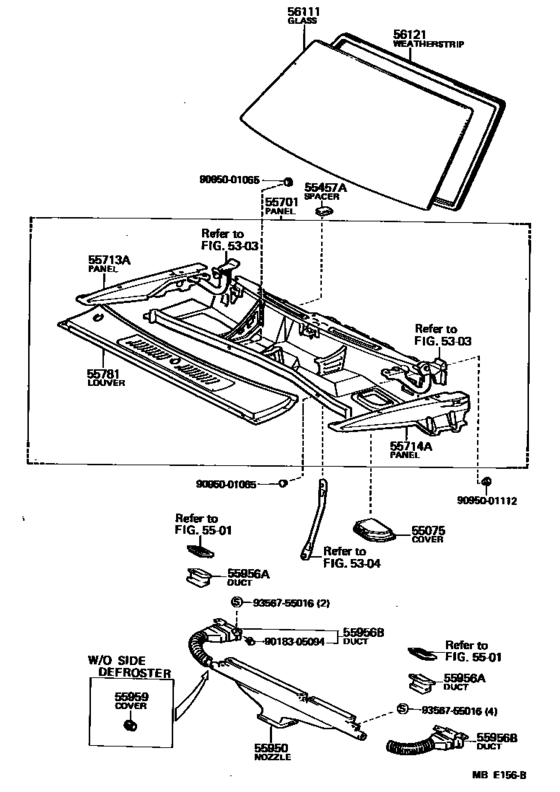

Cowl Panel & Windshield Glass ([08.1982 - ] (8208- )) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55457A
|
55457A
55457-10030
Spacer, Instrument Panel Safety Pad
[08.1982 - 09.1984] KP6# |
55457-10030 |
— | ||
|
55701
|
55701
55700-10050
Panel Sub-Assy, Cowl
[05.1980 - 08.1982] KP6#..LHD *GIS |
55700-10050 |
— | ||
| replacement | |||||
|
55701
|
55701
55700-10060
Panel Sub-Assy, Cowl
[05.1980 - 08.1982] KP6#..LHD *GIS |
55700-10060 |
— | ||
|
55701
|
55701
55700-10061
Panel Sub-Assy, Cowl
[08.1982 - 12.1983] KP6#..LHD *GIS |
55700-10061 |
— | ||
|
55713A
|
55713A
55713-10031
Panel, Cowl Top Side, Rh
[05.1980 - 09.1984] KP6# |
55713-10031 |
— | ||
|
55714A
|
55714A
55714-10021
Panel, Cowl Top Side, Lh
[05.1980 - 09.1984] KP6# |
55714-10021 |
— | ||
|
55781
|
55781
55711-10061
Louver, Cowl Ventilator
[05.1980 - 09.1984] KP6#..LHD |
55711-10061 |
— | ||
|
55950
|
55950
55950-10020
Nozzle Assy, Defroster
[08.1982 - 09.1984] KP6#..LHD |
55950-10020 |
— | ||
|
55956A
|
55956A
55970-10010 Duct, Side Defroster Nozzle, No.1SIDE DEFROSTER NOZZLE, NO.1 [08.1982 - 09.1984] KP6# RH |
55970-10010 |
US $10.34 |
||
|
55956A
|
55956A
55980-10010 Duct, Side Defroster Nozzle, No.1SIDE DEFROSTER NOZZLE, NO.1 [08.1982 - 09.1984] KP6# LH |
55980-10010 |
US $10.34 |
||
|
55956B
|
55956B
55093-10010
Duct, Side Defroster Nozzle, No.2
[08.1982 - 09.1984] KP6# RH |
55093-10010 |
— | ||
|
55956B
|
55956B
55094-10010
Duct, Side Defroster Nozzle, No.2
[08.1982 - 09.1984] KP6# LH |
55094-10010 |
— | ||
|
56111
|
56111
56111-10161
Glass, Windshield
[05.1980 - 09.1984] KP6# *LAM,T=5.3 |
56111-10161 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-10171
Glass, Windshield
[05.1980 - 09.1984] KP6# *LAM,T=5.3 |
56111-10171 |
— | ||
|
56121
|
56121
56121-10100
Weatherstrip, Windshield
[02.1978 - 08.1982] KP6# W/MOULDING |
56121-10100 |
— | ||
|
56121
|
56121
56121-10110
Weatherstrip, Windshield
[02.1978 - 08.1982] KP6# W/O MOULDING |
56121-10110 |
— | ||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9095001065
|
9095001065
90950-01065 Plug, Hole(For Front Fender Apron) |
90950-01065 |
US $4.48 |
||
|
9095001112
|
9095001112
90950-01112 Plug, Hole(For Heater Control Cable Hole) |
90950-01112 |
US $1.49 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
