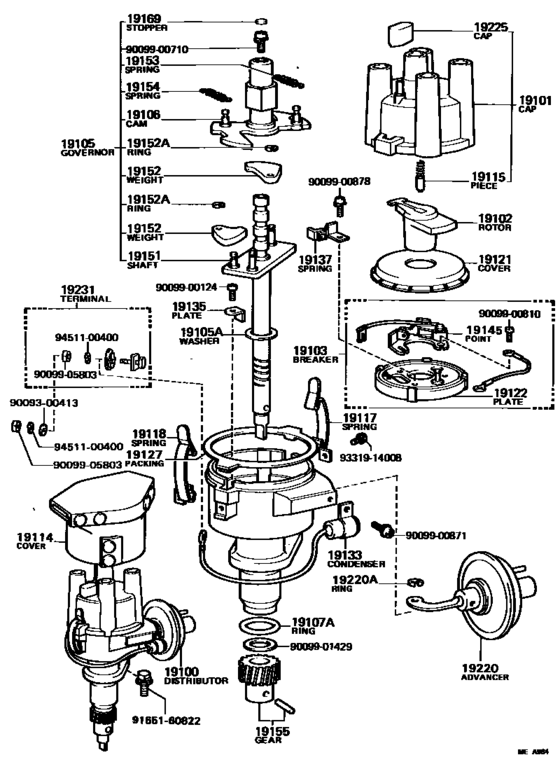

Distributor ([08.1981 - ] (8108- )4KC) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-13180
Distributor Assy
[08.1981 - 08.1982] 4KC..KP61 |
19100-13180 |
— | ||
|
19100
|
19100
19100-13310 Distributor Assy[08.1982 - 09.1984] 4KC..KP61 |
19100-13310 |
US $460.10 |
||
|
19101
|
19101
19101-25070 Cap Sub-Assy, Distributor[08.1981 - 08.1982] 4K#..KP61 |
19101-25070 |
US $38.44 |
||
|
19102
|
19102
19102-26150
Rotor Sub-Assy, Distributor
[08.1981 - 08.1982] 4K#..KP61 |
19102-26150 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-26151 Rotor Sub-Assy, Distributor[08.1981 - 08.1982] 4K#..KP61 |
19102-26151 |
US $17.33 |
||
|
19103
|
19103
19103-13070 Breaker Sub-Assy, Distributor[08.1981 - 08.1982] 4K#..KP61 |
19103-13070 |
US $61.44 |
||
|
19105
|
19105
19105-13030 Governor Sub-Assy[08.1981 - 09.1984] 4KC..KP61 |
19105-13030 |
US $99.01 |
||
|
19105A
|
19105A
90099-01385
Washer(For Governor Shaft Thrust)
[08.1981 - 08.1982] 4K#..KP61 T=2.5,T=2.5 |
90099-01385 |
— | ||
|
19105A
|
19105A
90099-01386
Washer(For Governor Shaft Thrust)
[08.1981 - 08.1982] 4K#..KP61 T=2.7,T=2.7 |
90099-01386 |
— | ||
|
19105A
|
19105A
90099-01387
Washer(For Governor Shaft Thrust)
[08.1981 - 08.1982] 4K#..KP61 T=2.9,T=2.9 |
90099-01387 |
— | ||
|
19105A
|
19105A
90099-01412
Washer(For Governor Shaft Thrust)
[08.1981 - 08.1982] 4K#..KP61 T=2.3,T=2.3 |
90099-01412 |
— | ||
|
19106
|
19106
19106-34013 Cam Sub-Assy, DistributorDISTRIBUTOR [11.1981 - 09.1984] 4KC..KP61 |
19106-34013 |
US $39.17 |
||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[02.1978 - 09.1984] 2K,3K#,4K#..KP6# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[02.1978 - 09.1984] 2K,3K#,4K#..KP6# |
90099-14090 |
from US $2.80 |
||
|
19114
|
19114
19114-24020
Cover, Water Proof(For Distributor)
[08.1981 - 08.1982] 4KC..KP61 |
19114-24020 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[02.1978 - 09.1984] 2K,3K#,4K#..KP6# |
19115-50010 |
— | ||
|
19117
|
19117
19117-24080
Spring, Distributor Cap, A
[08.1981 - 08.1982] 4K#..KP61 |
19117-24080 |
— | ||
|
19118
|
19118
19117-24080
Spring, Distributor Cap, A
[08.1981 - 08.1982] 4K#..KP61 |
19117-24080 |
— | ||
|
19121
|
19121
19121-38030
Cover, Dust Proof
[08.1981 - 08.1982] 4K#..KP61 |
19121-38030 |
— | ||
|
19122
|
19122
19122-13070
Plate, Stationary, Distributor
[08.1981 - 08.1982] 4K#..KP61 |
19122-13070 |
— | ||
|
19127
|
19127
19127-15010
Packing, Dust Proof
[08.1981 - 08.1982] 4K#..KP61 |
19127-15010 |
— | ||
|
19133
|
19133
90099-52059 Condenser, Distributor[08.1981 - 08.1982] 4K#..KP61 |
90099-52059 |
from US $6.59 |
||
|
19135
|
19135
19135-24080
Plate, Holder
[08.1981 - 08.1982] 4K#..KP61 |
19135-24080 |
— | ||
|
19137
|
19137
19137-33012
Spring Sub-Assy, Damper
[08.1981 - 08.1982] 4K#..KP61 |
19137-33012 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[02.1978 - 09.1984] 2K,3K#,4K#..KP6# |
19145-26060 |
from US $13.75 |
||
|
19151
|
19151
19151-24081 Shaft, Governor[08.1981 - 08.1982] 4K#..KP61 |
19151-24081 |
US $44.12 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[08.1981 - 08.1982] 4K#..KP61 |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[08.1981 - 08.1982] 4K#..KP61 |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[08.1981 - 08.1982] 4K#..KP61 |
90099-07109 |
— | ||
|
19153
|
19153
19153-13030 Spring, Governor, AGOVERNOR, A [08.1981 - 09.1984] 4KC..KP61 |
19153-13030 |
US $5.24 |
||
|
19154
|
19154
19154-13030 Spring, Governor, BGOVERNOR, B [08.1981 - 09.1984] 4KC..KP61 |
19154-13030 |
US $5.24 |
||
|
19155
|
19155
19195-24081 Gear, Spiral, Distributor[08.1981 - 08.1982] 4K#..KP61 |
19195-24081 |
US $44.84 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[08.1981 - 08.1982] 4K#..KP61 |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1981 - 08.1982] 4K#..KP61 |
19169-63011 |
— | ||
|
19220
|
19220
19220-13032 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1981 - 08.1982] 4KC..KP61 |
19220-13032 |
US $49.36 |
||
|
19220
|
19220
19220-13310 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1982 - 09.1984] 4KC..KP61 |
19220-13310 |
US $96.10 |
||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[08.1981 - 08.1982] 4K#..KP61 |
90099-07109 |
— | ||
|
19225
|
19225
19225-25070
Cap, Rubber
[08.1981 - 08.1982] 4K#..KP61 |
19225-25070 |
— | ||
|
19231
|
19231
19231-38011
Terminal, Distributor
[08.1981 - 08.1982] 4K#..KP61 |
19231-38011 |
— | ||
|
9009300413
|
9009300413
90093-00413
New Genuine Part
|
90093-00413 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900810
|
9009900810
90099-00810
SCREW
|
90099-00810 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009901429
|
9009901429
90099-01429
Washer, No.2(For Governor Shaft Thrust)
|
90099-01429 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9165160822
|
9165160822
91651-60822
New Genuine Part
|
91651-60822 |
— | ||
| replacement | |||||
|
9165160822
|
9165160822
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
