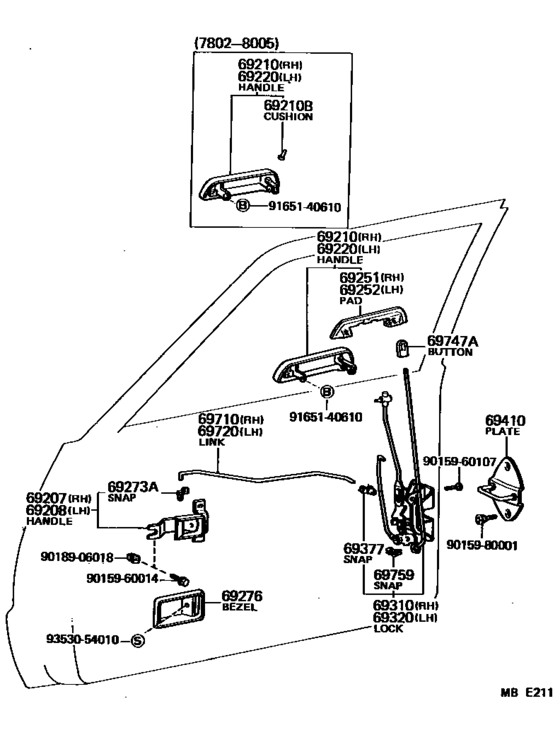

Front Door Lock & Handle ([02.1978 - ] (7802- )4D,5D) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69207
|
69207
69205-10020-01 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [12.1978 - 08.1982] KP6#..4D,5D BLACK,BLACK,TRIM2# |
69205-10020-01 |
US $25.33 |
||
|
69207
|
69207
69205-10020-02
Handle Sub-Assy, Front Door Inside, Rh
[08.1982 - 09.1984] KP6#..5D..(DLX,STD) DARK WINE,RED/MAROON,TRIM3# |
69205-10020-02 |
— | ||
|
69207
|
69207
69205-10020-03
Handle Sub-Assy, Front Door Inside, Rh
[08.1982 - 09.1984] KP6#..4D,5D GRAY,GRAY,TRIM1# |
69205-10020-03 |
— | ||
|
69207
|
69207
69205-10020-04
Handle Sub-Assy, Front Door Inside, Rh
[05.1980 - 08.1982] KP6#..5D BLUE,BLUE,TRIM8# |
69205-10020-04 |
— | ||
|
69207
|
69207
69205-10020-06
Handle Sub-Assy, Front Door Inside, Rh
[05.1980 - 08.1982] KP6#..4D,5D LIGHT BROWN,BROWN,TRIM4# |
69205-10020-06 |
— | ||
| replacement | |||||
|
69207
|
69207
69205-10020-16 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [05.1980 - 08.1982] KP6#..4D,5D LIGHT BROWN,BROWN,TRIM4# |
69205-10020-16 |
US $25.33 |
||
|
69207
|
69207
69205-10020-16 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [08.1982 - 09.1984] KP6#..(4D,5D)..(DLX,STD) BROWN,BROWN,TRIM4# |
69205-10020-16 |
US $25.33 |
||
|
69208
|
69208
69206-10020-01
Handle Sub-Assy, Front Door Inside, Lh
[12.1978 - 08.1982] KP6#..4D,5D BLACK,BLACK,TRIM2# |
69206-10020-01 |
— | ||
|
69208
|
69208
69206-10020-02
Handle Sub-Assy, Front Door Inside, Lh
[08.1982 - 09.1984] KP6#..5D..(DLX,STD) DARK WINE,RED/MAROON,TRIM3# |
69206-10020-02 |
— | ||
|
69208
|
69208
69206-10020-03 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [08.1982 - 09.1984] KP6#..4D,5D GRAY,GRAY,TRIM1# |
69206-10020-03 |
US $25.33 |
||
|
69208
|
69208
69206-10020-04
Handle Sub-Assy, Front Door Inside, Lh
[05.1980 - 08.1982] KP6#..5D BLUE,BLUE,TRIM8# |
69206-10020-04 |
— | ||
|
69208
|
69208
69206-10020-06 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [05.1980 - 08.1982] KP6#..4D,5D LIGHT BROWN,BROWN,TRIM4# |
69206-10020-06 |
US $25.33 |
||
| replacement | |||||
|
69208
|
69208
69206-10020-16 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [05.1980 - 08.1982] KP6#..4D,5D LIGHT BROWN,BROWN,TRIM4# |
69206-10020-16 |
US $25.33 |
||
|
69208
|
69208
69206-10020-16 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [08.1982 - 09.1984] KP6#..(4D,5D)..(DLX,STD) BROWN,BROWN,TRIM4# |
69206-10020-16 |
US $25.33 |
||
|
69210
|
69210
69210-10041
Handle Assy, Front Door, Outside Rh
[05.1980 - 09.1984] KP6# BLACK |
69210-10041 |
— | ||
|
69220
|
69220
69220-10041
Handle Assy, Front Door Outside, Lh
[05.1980 - 09.1984] KP6# BLACK |
69220-10041 |
— | ||
|
69251
|
69251
69241-10030
Pad, Front Door Outside Handle, Front Rh
[05.1980 - 09.1984] KP6# |
69241-10030 |
— | ||
|
69252
|
69252
69241-10030
Pad, Front Door Outside Handle, Front Rh
[05.1980 - 09.1984] KP6# |
69241-10030 |
— | ||
|
69276
|
69276
69276-10012-01
Bezel, Front Door Inside Handle
[02.1978 - 08.1982] KP6#..4D,5D BLACK,BLACK,TRIM2# |
69276-10012-01 |
— | ||
|
69276
|
69276
69276-10012-02
Bezel, Front Door Inside Handle
[08.1982 - 09.1984] KP6#..5D..(DLX,STD) DARK WINE,RED/MAROON,TRIM3# |
69276-10012-02 |
— | ||
|
69276
|
69276
69276-10012-03 Bezel, Front Door Inside HandleFRONT DOOR INSIDE HANDLE [08.1982 - 09.1984] KP6#..4D,5D GRAY,GRAY,TRIM1# |
69276-10012-03 |
US $6.99 |
||
| replacement | |||||
|
69276
|
69276
69276-10012-13 Bezel, Rear Door Inside Handle[08.1982 - 09.1984] KP6#..4D,5D GRAY,GRAY,TRIM1# |
69276-10012-13 |
US $6.99 |
||
|
69276
|
69276
69276-10012-04
Bezel, Front Door Inside Handle
[05.1980 - 08.1982] KP6#..4D,5D BLUE,BLUE,TRIM8# |
69276-10012-04 |
— | ||
| replacement | |||||
|
69276
|
69276
69276-10012-01
Bezel, Front Door Inside Handle
[05.1980 - 08.1982] KP6#..4D,5D BLUE,BLUE,TRIM8# |
69276-10012-01 |
— | ||
|
69276
|
69276
69276-10012-10
Bezel, Front Door Inside Handle
[08.1982 - 09.1984] KP6#..(4D,5D)..(DLX,STD) BROWN,BROWN,TRIM4# |
69276-10012-10 |
— | ||
|
69276
|
69276
69276-10012-46 Bezel, Front Door Inside HandleFRONT DOOR INSIDE HANDLE [05.1980 - 08.1982] KP6#..4D,5D LIGHT BROWN,BROWN,TRIM4# |
69276-10012-46 |
US $6.99 |
||
| replacement | |||||
|
69276
|
69276
69276-10012-10
Bezel, Front Door Inside Handle
[05.1980 - 08.1982] KP6#..4D,5D LIGHT BROWN,BROWN,TRIM4# |
69276-10012-10 |
— | ||
|
69310
|
69310
69310-10071 Lock Assy, Front Door, RhFRONT DOOR, RH [06.1981 - 09.1984] KP6#..4D,5D |
69310-10071 |
US $75.71 |
||
|
69320
|
69320
69320-10071 Lock Assy, Front Door, LhFRONT DOOR, LH [06.1981 - 09.1984] KP6#..4D,5D |
69320-10071 |
US $75.71 |
||
|
69377
|
69377
69377-30020
Snap, Door Lock Control Rod
[02.1978 - 09.1984] KP6# |
69377-30020 |
— | ||
|
69410
|
69410
69410-10020
Plate Assy, Front Door Lock Striker
[10.1982 - 09.1984] KP6# |
69410-10020 |
— | ||
|
69410
|
69410
69410-22020 Plate Assy, Front Door Lock Striker[02.1978 - 10.1982] KP6# |
69410-22020 |
US $14.71 |
||
| replacement | |||||
|
69410
|
69410
69410-89103
Plate Assy, Front Door Lock Striker
[02.1978 - 10.1982] KP6# |
69410-89103 |
— | ||
|
69710
|
69710
69711-10020
Link Assy, Front Door Open Control, Rh
[02.1978 - 09.1984] KP6#..4D,5D |
69711-10020 |
— | ||
|
69720
|
69720
69712-10030
Link Assy, Front Door Open Control, Lh
[02.1978 - 09.1984] KP6#..4D,5D |
69712-10030 |
— | ||
|
69747A
|
69747A
69741-20020-01
Knob, Front Door Lock Control
[02.1978 - 09.1984] KP6#..4D,5D BLACK |
69741-20020-01 |
— | ||
| replacement | |||||
|
69747A
|
69747A
69741-32010-20 Knob, Front Door Lock Control[02.1978 - 09.1984] KP6#..4D,5D BLACK |
69741-32010-20 |
US $4.89 |
||
|
69759
|
69759
69759-12030 Snap, Door Lock Control Link, No.1[02.1978 - 09.1984] KP6# |
69759-12030 |
US $2.77 |
||
|
9015960014
|
9015960014
90159-60014 New Genuine Part |
90159-60014 |
US $2.18 |
||
|
9015960107
|
9015960107
90159-60107 New Genuine Part |
90159-60107 |
US $0.73 |
||
|
9015980001
|
9015980001
90159-80001
SCREW
|
90159-80001 |
— | ||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.80 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
