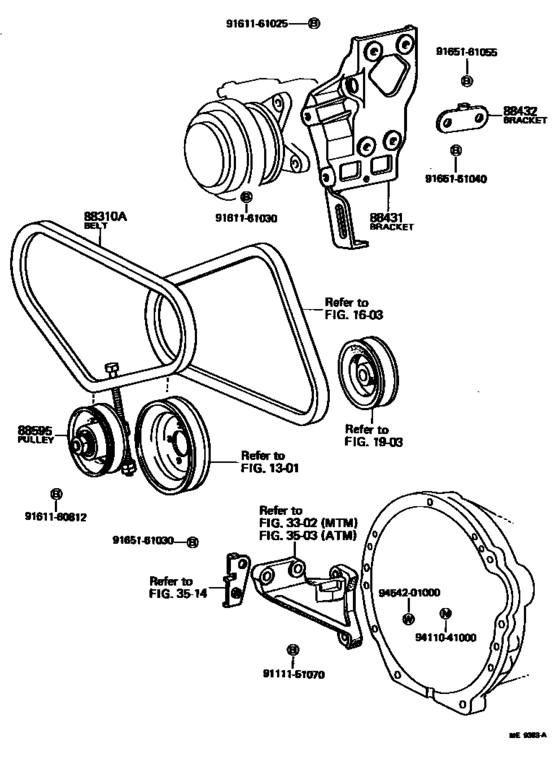

Heating & Air Conditioning - Compressor ([05.1980 - ] (8005- )) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9111151070
|
9111151070
91111-51070 Shaft, Clutch Pedal |
91111-51070 |
US $2.18 |
||
| replacement | |||||
|
9111151070
|
9111151070
91111-61070
Shaft, Brake Pedal
|
91111-61070 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9165161030
|
9165161030
91651-61030 Bolt (For Transfer Case) |
91651-61030 |
from US $1.48 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $1.92 |
||
|
9165161055
|
9165161055
91651-61055 New Genuine Part |
91651-61055 |
US $2.62 |
||
| replacement | |||||
|
9165161055
|
9165161055
91651-61060 New Genuine Part |
91651-61060 |
US $0.96 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9454201000
|
9454201000
94542-01000 New Genuine Part |
94542-01000 |
US $2.33 |
||
