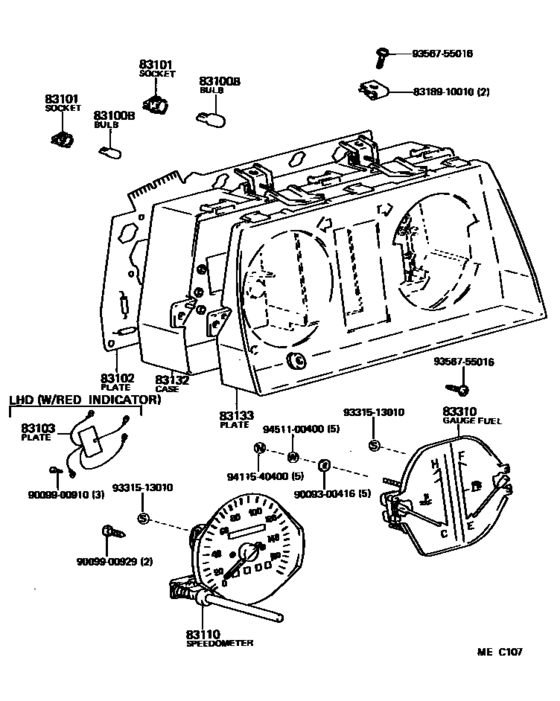

Meter ([08.1982 - ] (8208- )) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1980 - 08.1982] KP6#..SED 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[02.1978 - 09.1984] KP6# 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[02.1978 - 09.1984] KP6# 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[02.1978 - 09.1984] KP6# 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1980 - 08.1982] KP6#..SED 12V 1.4W,W/TACHOMETER |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-10090
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1980 - 08.1982] KP6#..SED..LHD W/TACHOMETER |
83247-10090 |
— | ||
|
83102
|
83102
83247-10130
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1981 - 08.1982] KP61..LHD KM; KP60,62..LHD..GEN MILE & KM |
83247-10130 |
— | ||
|
83102
|
83102
83247-10610
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1982 - 09.1984] KP6#..SED..LHD..DLX |
83247-10610 |
— | ||
|
83110
|
83110
83110-10460 Speedometer Assy[05.1980 - 08.1982] KP6#..SED..LHD W/TACHOMETER,KM |
83110-10460 |
US $275.18 |
||
|
83110
|
83110
83110-10520
Speedometer Assy
[08.1981 - 08.1982] KP61..LHD KM |
83110-10520 |
— | ||
|
83110
|
83110
83110-10760
Speedometer Assy
[08.1982 - 05.1983] KP6#..LHD..DLX KM |
83110-10760 |
— | ||
|
83110
|
83110
83110-10761
Speedometer Assy
[05.1983 - 09.1984] KP6#..LHD..DLX KM |
83110-10761 |
— | ||
|
83132
|
83132
83132-10031
Case, Combination Meter
[05.1980 - 08.1982] KP6#..LHD |
83132-10031 |
— | ||
|
83132
|
83132
83132-10040
Case, Combination Meter
[05.1980 - 08.1982] KP6#..SED..LHD W/TACHOMETER |
83132-10040 |
— | ||
|
83132
|
83132
83132-10390
Case, Combination Meter
[08.1982 - 09.1984] KP6#..SED..LHD..DLX |
83132-10390 |
— | ||
|
83133
|
83133
83133-10510
Plate, Combination Meter, No.1
[08.1982 - 09.1984] KP61..SED..LHD..(DLX,S) W/TACHOMETER |
83133-10510 |
— | ||
|
83133
|
83133
83133-10570
Plate, Combination Meter, No.1
[08.1982 - 09.1984] KP6#..LHD..DLX |
83133-10570 |
— | ||
|
83310
|
83310
83243-10031 Gage Assy, Fuel ReceiverFUEL RECEIVER [05.1980 - 08.1982] KP6#..LHD |
83243-10031 |
US $42.37 |
||
|
83310
|
83310
83243-10050
Gage Assy, Fuel Receiver
[05.1980 - 08.1982] KP6#..SED..LHD W/TACHOMETER |
83243-10050 |
— | ||
|
83310
|
83310
83243-10090 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1982 - 09.1984] KP6#..SED W/TACHOMETER |
83243-10090 |
US $42.22 |
||
|
83310
|
83310
83243-10190 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1982 - 09.1984] KP6#..LHD EXCL/*ME |
83243-10190 |
US $82.99 |
||
|
8318910010
|
8318910010
83189-10010
Bracket, Meter
|
83189-10010 |
— | ||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9331513010
|
9331513010
93315-13010 New Genuine Part |
93315-13010 |
US $1.44 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
