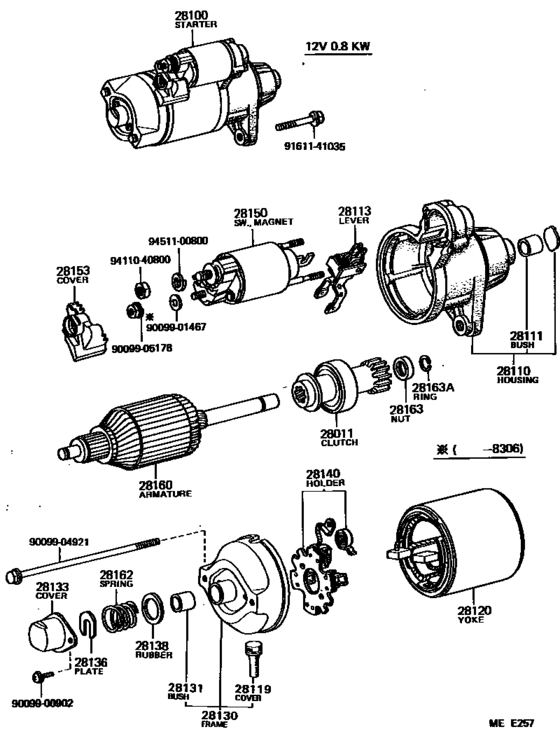

Starter ([05.1980 - ] (8005- )2K,3K#,4K#..EUR) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-22020
Clutch Sub-Assy, Starter
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28011-22020 |
— | ||
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28011-26042 |
— | ||
|
28100
|
28100
28100-13010 Starter Assy[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW,12V 1.0KW |
28100-13010 |
US $1,236.14 |
||
|
28100
|
28100
28100-24070
Starter Assy
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28100-24070 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-13130
Starter Assy
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28100-13130 |
— | ||
|
28110
|
28110
28110-13010 Housing Assy, Starter Drive[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28110-13010 |
US $80.08 |
||
|
28110
|
28110
28110-24010
Housing Assy, Starter Drive
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28110-24010 |
— | ||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28111-51011 |
— | ||
|
28113
|
28113
28113-41011
Lever, Starter Pinion Drive
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28113-41011 |
— | ||
|
28120
|
28120
28120-22011
Yoke Assy, Starter
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28120-22011 |
— | ||
|
28120
|
28120
28120-26070
Yoke Assy, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28120-26070 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28120-26071 |
— | ||
|
28130
|
28130
28130-13010 Frame Assy, Starter Commutator End[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28130-13010 |
US $21.11 |
||
|
28130
|
28130
28130-21011
Frame Assy, Starter Commutator End
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28130-21011 |
— | ||
|
28131
|
28131
28131-20010
Bush, Commutator End Frame
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW STD |
28131-20010 |
— | ||
|
28131
|
28131
90099-10039
Bush, Commutator End Frame
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW U/S 0.3 |
90099-10039 |
— | ||
|
28131
|
28131
90099-10040
Bush, Commutator End Frame
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW U/S 0.5 |
90099-10040 |
— | ||
|
28133
|
28133
28132-41011
Cover, Bearing(For End Frame)
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28132-41011 |
— | ||
|
28136
|
28136
28136-41011
Plate, Starter Lock
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28136-41011 |
— | ||
|
28138
|
28138
28138-41011
Rubber(For Starter Bearing Cover)
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28138-41011 |
— | ||
|
28140
|
28140
28140-22011
Holder Assy, Starter Brush
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28140-22011 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28140-26070 |
from US $16.77 |
||
|
28150
|
28150
28150-13011 Switch Assy, Magnet Starter[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28150-13011 |
US $347.98 |
||
|
28150
|
28150
28150-24070 Switch Assy, Magnet StarterMAGNET STARTER [08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28150-24070 |
US $125.22 |
||
| replacement | |||||
|
28150
|
28150
28150-24071 Switch Assy, Magnet StarterMAGNET STARTER [08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28150-24071 |
US $139.78 |
||
|
28160
|
28160
28160-22011 Armature Assy, Starter[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28160-22011 |
US $237.33 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28160-26071 |
— | ||
|
28162
|
28162
28162-41011
Spring, Starter Brake
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28162-41011 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW,0.8KW |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW,0.8KW |
90099-07047 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009901467
|
9009901467
90099-01467
New Genuine Part
|
90099-01467 |
— | ||
|
9009904921
|
9009904921
90099-04921
New Genuine Part
|
90099-04921 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9161141035
|
9161141035
91611-41035
New Genuine Part
|
91611-41035 |
— | ||
| replacement | |||||
|
9161141035
|
9161141035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
