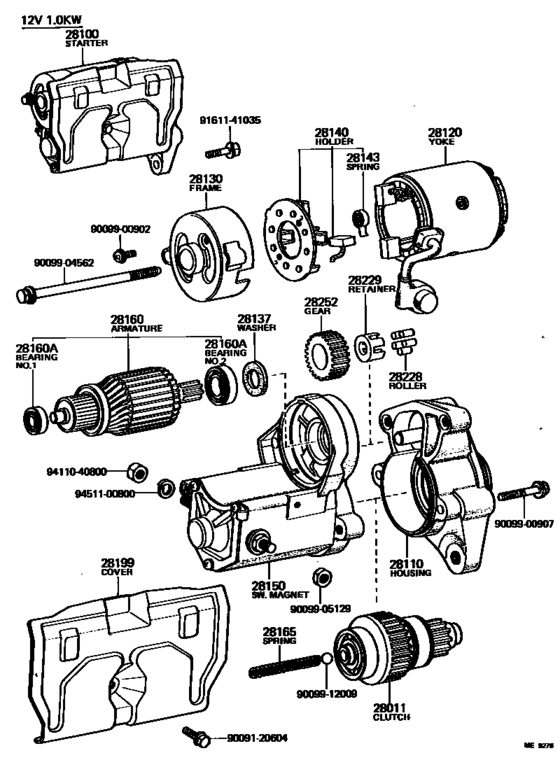

Starter ([08.1981 - ] (8108- )4K#) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-22020
Clutch Sub-Assy, Starter
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28011-22020 |
— | ||
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28011-26042 |
— | ||
|
28100
|
28100
28100-13010 Starter Assy[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW,12V 1.0KW |
28100-13010 |
US $1,236.14 |
||
|
28100
|
28100
28100-24070
Starter Assy
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28100-24070 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-13130
Starter Assy
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28100-13130 |
— | ||
|
28110
|
28110
28110-13010 Housing Assy, Starter Drive[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28110-13010 |
US $80.08 |
||
|
28110
|
28110
28110-24010
Housing Assy, Starter Drive
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28110-24010 |
— | ||
|
28120
|
28120
28120-22011
Yoke Assy, Starter
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28120-22011 |
— | ||
|
28120
|
28120
28120-26070
Yoke Assy, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28120-26070 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28120-26071 |
— | ||
|
28130
|
28130
28130-13010 Frame Assy, Starter Commutator End[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28130-13010 |
US $21.11 |
||
|
28130
|
28130
28130-21011
Frame Assy, Starter Commutator End
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28130-21011 |
— | ||
|
28137
|
28137
90099-02323
Washer, Felt, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
90099-02323 |
— | ||
|
28140
|
28140
28140-22011
Holder Assy, Starter Brush
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28140-22011 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28140-26070 |
from US $16.77 |
||
|
28143
|
28143
28143-40010
Spring, Starter Brush
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28143-40010 |
— | ||
| replacement | |||||
|
28143
|
28143
28143-40040
Spring, Starter Brush
[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28143-40040 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-13011 Switch Assy, Magnet Starter[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28150-13011 |
US $347.98 |
||
|
28150
|
28150
28150-24070 Switch Assy, Magnet StarterMAGNET STARTER [08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28150-24070 |
US $125.22 |
||
| replacement | |||||
|
28150
|
28150
28150-24071 Switch Assy, Magnet StarterMAGNET STARTER [08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28150-24071 |
US $139.78 |
||
|
28160
|
28160
28160-22011 Armature Assy, Starter[08.1982 - 09.1984] 2K,4K#..KP6# 12V 0.6KW |
28160-22011 |
US $237.33 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28160-26071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW,NO.1 |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW,NO.2 |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28165-26040 |
— | ||
|
28199
|
28199
28199-13011
Cover, Starter
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28199-13011 |
— | ||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28229-26040 |
— | ||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[08.1981 - 08.1982] 4K#..KP61 12V 1.0KW |
28254-45020 |
— | ||
|
9009120604
|
9009120604
90091-20604
New Genuine Part
|
90091-20604 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9161141035
|
9161141035
91611-41035
New Genuine Part
|
91611-41035 |
— | ||
| replacement | |||||
|
9161141035
|
9161141035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
