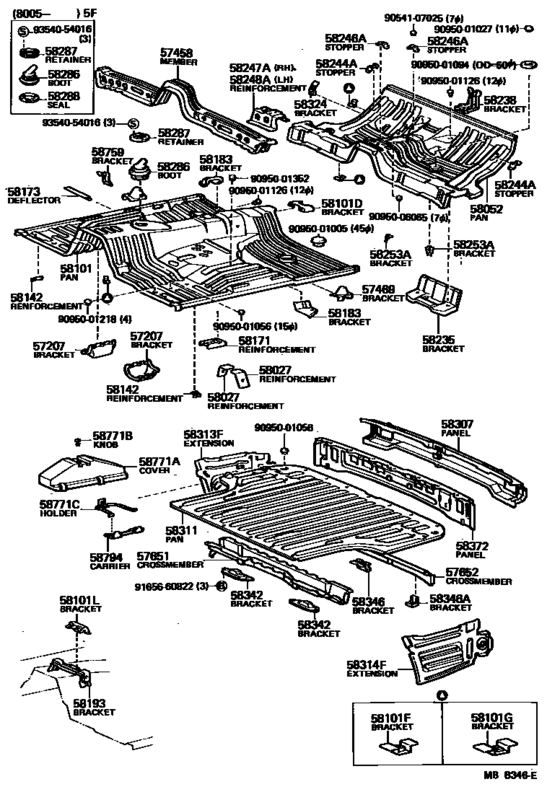

Floor Pan & Lower Back Panel ([10.1978 - ] (7810- )4D) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- WG
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57207
|
57207
57207-10012
Bracket Sub-Assy, Engine Rear Mounting Member
[08.1981 - 09.1984] KP6#..MTM RH |
57207-10012 |
— | ||
|
57207
|
57207
57208-10032
Bracket Sub-Assy, Engine Rear Mounting Member
[08.1981 - 09.1984] KP6#..MTM LH |
57208-10032 |
— | ||
|
57458
|
57458
57408-10030
Member, Front Floor Cross, No.1
[04.1981 - 08.1982] KP6# |
57408-10030 |
— | ||
|
57458
|
57458
57408-10040 Member, Front Floor Cross, No.1FRONT FLOOR CROSS, NO.1 [08.1982 - 09.1984] KP6# |
57408-10040 |
US $248.98 |
||
| replacement | |||||
|
57458
|
57458
57408-10031
Member, Front Floor Cross, No.1
[08.1982 - 09.1984] KP6# |
57408-10031 |
— | ||
|
57469
|
57469
57468-10011 Bracket, Front Seat, OutsideFRONT SEAT, OUTSIDE [05.1980 - 09.1984] KP6# RH |
57468-10011 |
US $20.09 |
||
|
57469
|
57469
57469-10011
Bracket, Front Seat, Outside
[05.1980 - 09.1984] KP6# LH |
57469-10011 |
— | ||
|
57651
|
57651
57606-96443 Crossmember, Rear Floor, FrontREAR FLOOR, FRONT [01.1982 - 09.1984] KP6#..4D |
57606-96443 |
US $174.72 |
||
| replacement | |||||
|
57651
|
57651
57606-96441
Crossmember, Rear Floor, Front
[01.1982 - 09.1984] KP6#..4D |
57606-96441 |
— | ||
|
57652
|
57652
57652-13021
Crossmember, Rear Floor, No.2
[10.1978 - 09.1984] KP6#..4D |
57652-13021 |
— | ||
|
58027
|
58027
58161-10021
Reinforcement, Belt Anchor To Floor Pan, No.1
[05.1980 - 09.1984] KP6# |
58161-10021 |
— | ||
|
58052
|
58052
58211-96440
Pan Sub-Assy, Center Floor
[10.1978 - 09.1984] KP6#..4D |
58211-96440 |
— | ||
|
58101
|
58101
58111-10042
Pan Sub-Assy, Front Floor
[08.1981 - 09.1984] KP6#..MTM |
58111-10042 |
— | ||
|
58101D
|
58101D
58264-10020
Bracket, Parking Brake Cable Guide
[02.1978 - 09.1984] KP6# |
58264-10020 |
— | ||
|
58101F
|
58101F
58236-14010 Bracket, Mounting, Floor, No.1[05.1980 - 09.1984] KP6# |
58236-14010 |
US $9.17 |
||
|
58101L
|
58101L
58991-10030
Bracket, Mounting, Floor, No.6
[08.1982 - 09.1984] KP6# |
58991-10030 |
— | ||
|
58142
|
58142
58141-10020
Reinforcement, Floor Side Member To Floor Pan
[02.1978 - 09.1984] KP6# |
58141-10020 |
— | ||
|
58171
|
58171
58171-12030
Reinforcement, Parking Brake Base
[02.1978 - 09.1984] KP6# |
58171-12030 |
— | ||
|
58173
|
58173
58173-10020
Deflector, Front Floor Stone
[02.1978 - 09.1984] KP6# |
58173-10020 |
— | ||
|
58183
|
58183
58183-10031
Bracket, Front Seat Mounting, Inner
[05.1980 - 09.1984] KP6# RH |
58183-10031 |
— | ||
|
58183
|
58183
58184-10031
Bracket, Front Seat Mounting, Inner
[05.1980 - 09.1984] KP6# LH |
58184-10031 |
— | ||
|
58193
|
58193
58193-10020
Bracket, Instrument Panel Brace Mounting
[08.1982 - 09.1984] KP6# |
58193-10020 |
— | ||
|
58235
|
58235
58235-96440
Bracket, Differential Carrier Bumper Mounting
[10.1978 - 09.1984] KP6#..4D |
58235-96440 |
— | ||
|
58238
|
58238
58238-96440
Bracket, Front Seat, Inner Rear Rh
[10.1978 - 09.1984] KP6#..4D..EUR |
58238-96440 |
— | ||
|
58244A
|
58244A
58244-96440
Stopper, Rear Seat Cushion Bracket
[10.1978 - 09.1984] KP6#..4D |
58244-96440 |
— | ||
|
58246A
|
58246A
58245-96440
Stopper, Rear Seat Cushion Bracket, Center
[10.1980 - 09.1984] KP6#..4D |
58245-96440 |
— | ||
|
58247A
|
58247A
58203-96441
Reinforcement, Rear Seat Cushion Hinge, Rh
[10.1980 - 09.1984] KP6#..4D |
58203-96441 |
— | ||
|
58248A
|
58248A
58204-96440
Reinforcement, Rear Seat Cushion Hinge, Lh
[10.1980 - 09.1984] KP6#..4D |
58204-96440 |
— | ||
|
58253A
|
58253A
58253-96440
Bracket, Parking Cable Clamp
[10.1978 - 09.1984] KP6#..4D |
58253-96440 |
— | ||
|
58286
|
58286
58286-10020 Boot, Shift & Select Lever, No.1SHIFT & SELECT LEVER, NO.1 [05.1980 - 09.1984] KP6#..5F |
58286-10020 |
US $32.47 |
||
|
58287
|
58287
58287-10020
Retainer, Shift Lever Boot
[02.1978 - 09.1984] KP6# |
58287-10020 |
— | ||
|
58288
|
58288
58288-10031
Seal, Shift Lever Boot
[08.1981 - 09.1984] KP6#..5F |
58288-10031 |
— | ||
|
58307
|
58307
58307-96440 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [10.1978 - 09.1984] KP6#..4D |
58307-96440 |
US $168.90 |
||
|
58311
|
58311
58311-96440
Pan, Rear Floor
[10.1978 - 09.1984] KP6#..4D |
58311-96440 |
— | ||
|
58313F
|
58313F
58313-96440
Extension, Rear Floor Pan To Quarter Panel, Rh
[10.1978 - 09.1984] KP6#..4D |
58313-96440 |
— | ||
|
58314F
|
58314F
58314-96440
Extension, Rear Floor Pan To Quarter Panel, Lh
[10.1978 - 09.1984] KP6#..4D |
58314-96440 |
— | ||
|
58324
|
58324
58326-13010
Bracket, Flexible Hose
[02.1978 - 09.1984] KP6#..4D |
58326-13010 |
— | ||
|
58342
|
58342
58341-96440
Bracket, Rear Absorber Mounting
[10.1978 - 09.1984] KP6#..4D RH |
58341-96440 |
— | ||
|
58342
|
58342
58342-96440
Bracket, Rear Absorber Mounting
[10.1978 - 09.1984] KP6#..4D LH |
58342-96440 |
— | ||
|
58346
|
58346
58345-96440
Bracket, Rear Floor Heat Insulator
[10.1978 - 09.1984] KP6#..4D |
58345-96440 |
— | ||
|
58346A
|
58346A
58346-96440
Bracket, Rear Floor Heat Insulator, No.2
[10.1978 - 09.1984] KP6#..4D |
58346-96440 |
— | ||
|
58372
|
58372
58308-96440 Panel, Body Lower Back, InnerBODY LOWER BACK, INNER [10.1978 - 09.1984] KP6#..4D |
58308-96440 |
US $177.63 |
||
|
58759
|
58759
58125-10031
Bracket, Cowl Top Inner Stay Mounting
[08.1981 - 08.1982] KP60,61..LHD..EUR |
58125-10031 |
— | ||
|
58771A
|
58771A
58442-96440-01
Cover, Jack
[10.1980 - 08.1982] KP6#..4D BLACK,BLACK,TRIM2# |
58442-96440-01 |
— | ||
|
58771A
|
58771A
58442-96440-03 Cover, JackJACK [08.1982 - 09.1984] KP6#..4D GRAY,GRAY,TRIM1# |
58442-96440-03 |
US $69.01 |
||
| replacement | |||||
|
58771A
|
58771A
58442-96440-01
Cover, Jack
[08.1982 - 09.1984] KP6#..4D GRAY,GRAY,TRIM1# |
58442-96440-01 |
— | ||
|
58771A
|
58771A
58442-96440-16
Cover, Jack
[10.1980 - 08.1982] KP6#..4D LIGHT BROWN,BROWN,TRIM4# |
58442-96440-16 |
— | ||
| replacement | |||||
|
58771A
|
58771A
58442-96440-01
Cover, Jack
[10.1980 - 08.1982] KP6#..4D LIGHT BROWN,BROWN,TRIM4# |
58442-96440-01 |
— | ||
|
58771A
|
58771A
58442-96440-26 Cover, JackJACK [08.1982 - 09.1984] KP6#..4D BROWN,BROWN,TRIM4# |
58442-96440-26 |
US $69.01 |
||
| replacement | |||||
|
58771A
|
58771A
58442-96440-01
Cover, Jack
[08.1982 - 09.1984] KP6#..4D BROWN,BROWN,TRIM4# |
58442-96440-01 |
— | ||
|
58771B
|
58771B
62506-91501 Knob, Jack CoverJACK COVER [10.1978 - 09.1984] KP6#..4D |
62506-91501 |
US $10.19 |
||
|
58771C
|
58771C
58704-13010 Holder Sub-Assy, Jack SupportJACK SUPPORT [10.1978 - 09.1984] KP6#..4D |
58704-13010 |
US $7.28 |
||
|
58794
|
58794
58791-96441
Carrier, Jack
[10.1978 - 09.1984] KP6#..4D |
58791-96441 |
— | ||
|
9054107025
|
9054107025
90541-07025 Cushion (For Rear Seat Cushion) |
90541-07025 |
US $2.91 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001094
|
9095001094
90950-01094
New Genuine Part
|
90950-01094 |
— | ||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9095001218
|
9095001218
90950-01218 New Genuine Part |
90950-01218 |
US $1.75 |
||
|
9095001352
|
9095001352
90950-01352 New Genuine Part |
90950-01352 |
US $4.32 |
||
|
9095006065
|
9095006065
90950-06065 New Genuine Part |
90950-06065 |
US $2.48 |
||
|
9165660822
|
9165660822
91656-60822
Bolt, Radiator Side Support Plate
|
91656-60822 |
— | ||
| replacement | |||||
|
9165660822
|
9165660822
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
from US $0.78 |
||
