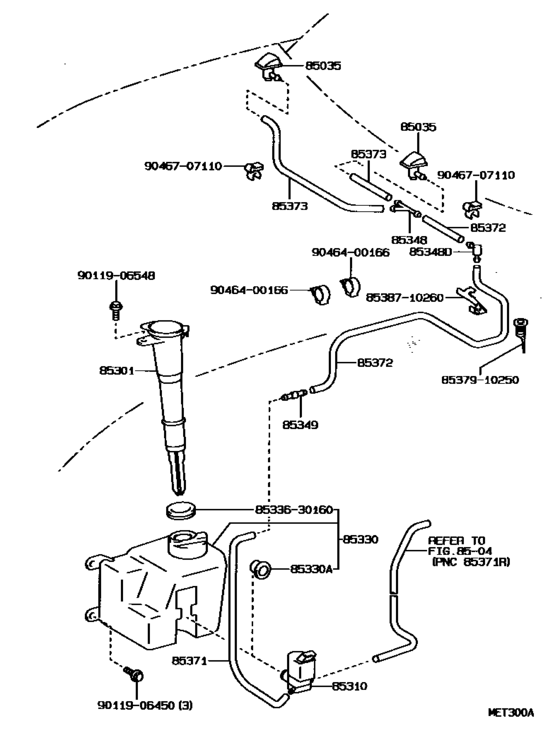

Windshield Washer ([01.1992 - 01.1996] ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) (9201-9601)NP80) Diagram Toyota STARLET
- Year
- 1992 - 1995
- Sales region
- Japan
- Frame
- NP80
- grade
- XLTD
- ENGINE
- 1N
- TRANSMISSION
- MTM
- From
- 01.1992
- To
- 09.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[01.1992 - 05.1994] EP8#,NP80 |
85381-12050 |
from US $17.28 |
||
| replacement | |||||
|
85035
|
85035
85381200201
Nozzle Fr Washer Rh
[01.1992 - 05.1994] EP8#,NP80 |
85381200201 |
— | ||
|
85035
|
85035
85381-30020
Nozzle Sub-Assy, Washer
[01.1992 - 05.1994] EP8#,NP80 ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
85381-30020 |
— | ||
|
85301
|
85301
85301-10020 Inlet Sub-Assy, Washer[01.1992 - 09.1995] NP80 |
85301-10020 |
US $52.27 |
||
|
85310
|
85310
85310-20170
Motor And Pump Assy, Windshield Washer
[12.1989 - 09.1992] EP82..(CAN,SOL)..EFI;EP85,NP80..S,SOLL,XLTD;EP82..CANSI,GI,GT,S,SI,X,XLTD ｱﾘ(*66) |
85310-20170 |
— | ||
|
85310
|
85310
85330-10220 Motor And Pump Assy, Windshield Washer[12.1989 - 09.1992] EP85;EP82,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD; EP82,NP80..SOL,SOLL ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
85330-10220 |
US $87.36 |
||
| replacement | |||||
|
85310
|
85310
85330-10221 Motor And Pump Assy, Windshield Washer[12.1989 - 09.1992] EP85;EP82,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD; EP82,NP80..SOL,SOLL ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
85330-10221 |
US $87.36 |
||
|
85310
|
85310
85330-10221 Motor And Pump Assy, Windshield Washer[09.1992 - 05.1994] EP8#,NP80..(4FC,5F)..(CAN,GI,GT,S,SOLL,XLTD); EP82,NP80..SOL,SOLL ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
85330-10221 |
US $87.36 |
||
|
85310
|
85310
85330-12280 Motor And Pump Assy, Windshield Washer[09.1992 - 05.1994] EP85,NP80..S,SOLL,XLTD;EP82..CAN,GI,GT,S,SOL,XLTD ｱﾘ(*66); NP80..SOL;EP82..SOLL ｱﾘ(*66 & ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
85330-12280 |
US $76.88 |
||
|
85330
|
85330
85315-10170
Jar Assy, Windshield Washer
[12.1989 - 05.1994] EP8#,NP80 |
85315-10170 |
— | ||
|
85330
|
85330
85315-10210 Jar Assy, Windshield Washer[01.1992 - 05.1994] NP80..XLTD ｱﾘ(*66); NP80..SOL ｱﾘ(*66 & ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
85315-10210 |
US $77.17 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[12.1989 - 01.1996] EP8#,NP80 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[12.1989 - 01.1996] EP8#,NP80 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[12.1989 - 01.1996] EP8#,NP80 |
90068-32002 |
US $7.46 |
||
|
85348
|
85348
85348-14390 Joint, Windshield Washer Hose, No.1[01.1992 - 01.1996] EP8#,NP80 |
85348-14390 |
from US $1.40 |
||
|
85348D
|
85348D
85376-10250 Joint, Windshield Washer Hose, No.1[01.1992 - 01.1996] EP8#,NP80 |
85376-10250 |
from US $2.28 |
||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[01.1992 - 05.1994] EP8#,NP80 |
85349-89122 |
from US $1.25 |
||
|
85349
|
85349
85375-10260 Joint, Windshield Washer Hose, No.1[01.1992 - 05.1994] EP8#,NP80 ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
85375-10260 |
from US $1.60 |
||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[12.1989 - 05.1994] EP85,NP80..S,SOLL,XLTD;EP82..(CAN,SOL,SOLL)..EFI;EP82..CANSI,GI,GT,S,SI,X,XLTD 長さ＝４５０,ｱﾘ(*66) |
90446-06013 |
from US $0.70 |
||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[01.1992 - 05.1994] EP82,NP80..SOL,SOLL; EP8#,NP80..(4FC,5F)..(CAN,GI,GT,S,SOLL,XLTD); EP82,NP80..SOL,SOLL ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
90446-07001 |
from US $2.10 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[01.1992 - 01.1996] EP8#,NP80 長さ＝４５０ |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[04.1990 - 05.1994] EP8#,NP80 |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.1992 - 01.1996] EP8#,NP80 Ｌ＝１４５０ |
90099-33080 |
US $9.43 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[01.1992 - 01.1996] EP8#,NP80 長さ＝４５０ |
90446-06013 |
from US $0.70 |
||
|
8533630160
|
8533630160
85336-30160 Bush, Windshield Washer Jar |
85336-30160 |
from US $3.32 |
||
|
8537910250
|
8537910250
85379-10250 Joint |
85379-10250 |
US $5.82 |
||
|
8538710260
|
8538710260
85387-10260 Clamp No.1 (for Windseield Washer) |
85387-10260 |
US $5.82 |
||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9011906548
|
9011906548
90119-06548 BOLT WWASHER |
90119-06548 |
from US $0.74 |
||
|
9046400166
|
9046400166
90464-00166 Clamp, Automatic Transmission Oil Cooler Tube, No.7 |
90464-00166 |
US $2.56 |
||
|
9046707110
|
9046707110
90467-07110 New Genuine Part |
90467-07110 |
US $3.20 |
||
