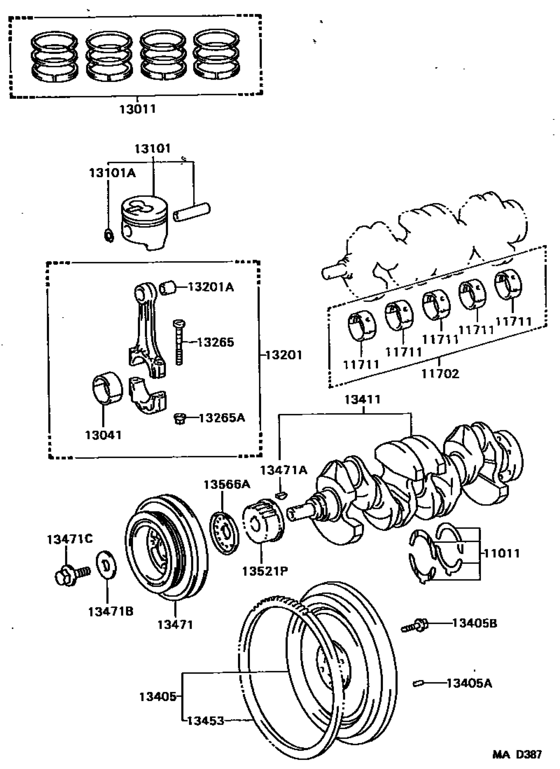

Crankshaft & Piston ([12.1989 - ] (8912- )1N) Diagram Toyota STARLET
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- NP80
- grade
- X
- ENGINE
- 1N
- TRANSMISSION
- ATM
- From
- 12.1989
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-22011
Washer Set, Crankshaft Thrust
[12.1989 - 09.1995] 1N..NP80 ＳＴＤ |
11011-22011 |
— | ||
|
11011
|
11011
11012-22011 Washer Set, Crankshaft Thrust[12.1989 - 09.1995] 1N..NP80 Ｏ／Ｓ ０．１２５ |
11012-22011 |
US $19.04 |
||
|
11011
|
11011
11013-22011 Washer Set, Crankshaft Thrust[12.1989 - 09.1995] 1N..NP80 Ｏ／Ｓ ０．２５０ |
11013-22011 |
US $18.05 |
||
|
11702
|
11702
11704-55020
Bearing Set, Crankshaft
[12.1989 - 09.1995] 1N..NP80 Ｕ／Ｓ ０．２５ |
11704-55020 |
— | ||
|
11702
|
11702
11705-55020 Bearing Set, Crankshaft[12.1989 - 09.1995] 1N..NP80 Ｕ／Ｓ ０．５０ |
11705-55020 |
US $260.62 |
||
|
11711
|
11711
11701-55020-01 Bearing, Crankshaft[12.1989 - 09.1995] 1N..NP80 MARK 1 |
11701-55020-01 |
US $26.79 |
||
|
11711
|
11711
11701-55020-02 Bearing, Crankshaft[12.1989 - 09.1995] 1N..NP80 MARK 2 |
11701-55020-02 |
from US $24.43 |
||
|
11711
|
11711
11701-55020-03 Bearing, Crankshaft[12.1989 - 09.1995] 1N..NP80 MARK 3 |
11701-55020-03 |
US $26.79 |
||
|
13011
|
13011
13011-55010 Ring Set, Piston[12.1989 - 04.1990] 1N..NP80 ＳＴＤ |
13011-55010 |
US $308.67 |
||
| replacement | |||||
|
13011
|
13011
13011-55011
Ring Set, Piston
[12.1989 - 04.1990] 1N..NP80 ＳＴＤ |
13011-55011 |
— | ||
|
13011
|
13011
13011-55011
Ring Set, Piston
[04.1990 - 09.1995] 1N..NP80 ＳＴＤ |
13011-55011 |
— | ||
|
13011
|
13011
13013-55010 Ring Set, Piston[12.1989 - 04.1990] 1N..NP80 Ｏ／Ｓ ０．５０ |
13013-55010 |
US $308.67 |
||
| replacement | |||||
|
13011
|
13011
13013-55011
Ring Set, Piston
[12.1989 - 04.1990] 1N..NP80 Ｏ／Ｓ ０．５０ |
13013-55011 |
— | ||
|
13011
|
13011
13013-55011
Ring Set, Piston
[04.1990 - 09.1995] 1N..NP80 Ｏ／Ｓ ０．５０ |
13013-55011 |
— | ||
|
13041
|
13041
13041-55020-01 Bearing, Connecting Rod[12.1989 - 09.1995] 1N..NP80 MARK 1 |
13041-55020-01 |
US $27.96 |
||
|
13041
|
13041
13041-55020-02 Bearing, Connecting Rod[12.1989 - 09.1995] 1N..NP80 MARK 2 |
13041-55020-02 |
US $5.25 |
||
|
13041
|
13041
13041-55020-03 Bearing, Connecting Rod[12.1989 - 09.1995] 1N..NP80 MARK 3 |
13041-55020-03 |
US $27.96 |
||
|
13101
|
13101
13101-55020-01
Piston Sub-Assy, W/pin
[12.1989 - 09.1995] 1N..NP80 ＳＴＤ,MARK1 |
13101-55020-01 |
— | ||
|
13101
|
13101
13101-55020-02
Piston Sub-Assy, W/pin
[12.1989 - 09.1995] 1N..NP80 ＳＴＤ,MARK2 |
13101-55020-02 |
— | ||
|
13101
|
13101
13101-55020-03
Piston Sub-Assy, W/pin
[12.1989 - 09.1995] 1N..NP80 ＳＴＤ,MARK3 |
13101-55020-03 |
— | ||
|
13101
|
13101
13103-55020
Piston Sub-Assy, W/pin
[12.1989 - 09.1995] 1N..NP80 Ｏ／Ｓ ０．５０ |
13103-55020 |
— | ||
|
13101A
|
13101A
90521-25003 Ring, Hole Snap(For Piston Pin)[12.1989 - 09.1995] 1N..NP80 |
90521-25003 |
US $2.33 |
||
|
13201
|
13201
13201-59075 Rod Sub-Assy, Connecting[12.1989 - 09.1995] 1N..NP80 |
13201-59075 |
US $192.19 |
||
|
13201A
|
13201A
90999-73109
Bush(For Connecting Rod Small End)
[12.1989 - 09.1995] 1N..NP80 |
90999-73109 |
— | ||
|
13265
|
13265
13265-55011 Bolt, Connecting Rod[12.1989 - 09.1995] 1N..NP80 |
13265-55011 |
US $7.43 |
||
|
13265A
|
13265A
90179-08118 Nut, Hexagon(For Connecting Rod Bolt)[12.1989 - 09.1995] 1N..NP80 |
90179-08118 |
from US $1.31 |
||
|
13411
|
13411
13411-55900 Crankshaft[12.1989 - 09.1995] 1N..NP80 |
13411-55900 |
US $1,499.68 |
||
|
13471
|
13471
13408-55010 Pulley, Crankshaft[12.1989 - 09.1995] 1N..NP80 |
13408-55010 |
US $247.52 |
||
|
13471A
|
13471A
95161-10519 Key(For Oil Pump Drive Spline)[12.1989 - 03.1992] 1N..NP80 |
95161-10519 |
from US $4.16 |
||
|
13471B
|
13471B
90201-13019
Washer, Plate(For Crankshaft Pulley Set)
[12.1989 - 09.1995] 1N..NP80 |
90201-13019 |
— | ||
|
13471C
|
13471C
90105-12060 Bolt(For Crankshaft Pulley Set)[12.1989 - 09.1995] 1N..NP80 |
90105-12060 |
US $3.20 |
||
|
13521P
|
13521P
13521-55010
Pulley, Crankshaft Timing
[12.1989 - 09.1995] 1N..NP80 |
13521-55010 |
— | ||
|
13566A
|
13566A
13566-55010 Guide, Timing Belt[12.1989 - 09.1995] 1N..NP80 |
13566-55010 |
US $6.99 |
||
