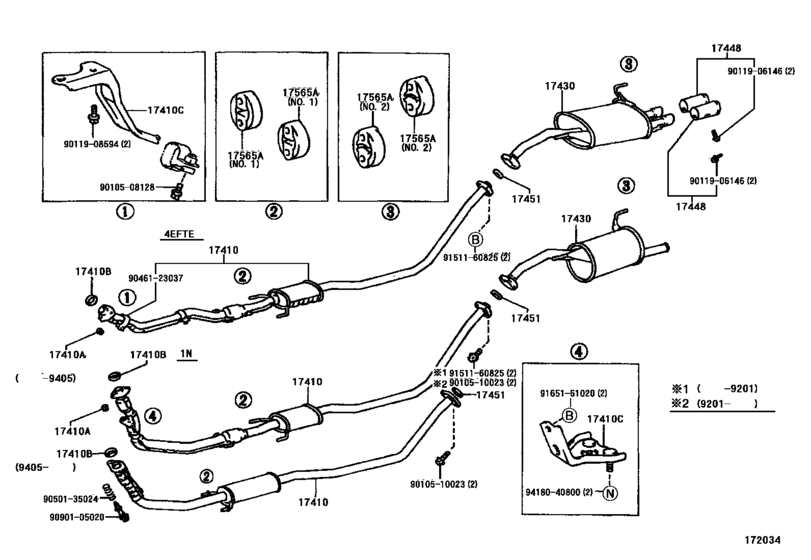

Exhaust Pipe ([12.1989 - ] (8912- )4EFTE,1N) Diagram Toyota STARLET
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- NP80
- grade
- X
- ENGINE
- 1N
- TRANSMISSION
- ATM
- From
- 12.1989
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-55050 Pipe Assy, Exhaust, Front[12.1989 - 01.1992] 1N..NP80 |
17410-55050 |
US $623.17 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[12.1989 - 05.1994] 4EF,4EFE,1N..EP8#,NP80 |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[12.1989 - 05.1994] 4EF,4EFE,1N..EP8#,NP80 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[12.1989 - 05.1994] 4EF,4EFE,1N..EP8#,NP80 |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-55020 Bracket, Exhaust Pipe Front (For Front)[12.1989 - 01.1992] 1N..NP80 |
17571-55020 |
US $25.77 |
||
|
17430
|
17430
17430-55030 Pipe Assy, Exhaust, Tail[12.1989 - 01.1992] 1N..NP80 |
17430-55030 |
US $479.02 |
||
|
17451
|
17451
90917-06060 Gasket, Exhaust Pipe, Center[12.1989 - 01.1996] 4EF,4EFE,1N..EP8#,NP80 |
90917-06060 |
from US $2.44 |
||
|
17565A
|
17565A
17565-11010 Bolt Or Ring, Exhaust Pipe Front (For Center)[12.1989 - 01.1992] 4EFTE,1N..EP82,NP80 ＮＯ．１ |
17565-11010 |
US $17.33 |
||
|
17565A
|
17565A
17565-63120 Bolt Or Ring, Exhaust Tail Pipe (For Rear)[12.1989 - 01.1992] 4EF#,1N..EP8#,NP80 ＮＯ．２ |
17565-63120 |
US $10.63 |
||
|
9010508128
|
9010508128
90105-08128
Bolt (For Front Oil Pump Setting)
|
90105-08128 |
— | ||
| replacement | |||||
|
9010508128
|
9010508128
91511-K0840 Bolt(For Crankshaft Bearing Cap Set) |
91511-K0840 |
US $2.72 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906146
|
9011906146
90119-06146 New Genuine Part |
90119-06146 |
US $1.02 |
||
|
9011908594
|
9011908594
90119-08594 BOLT |
90119-08594 |
from US $1.44 |
||
|
9046123037
|
9046123037
90461-23037 New Genuine Part |
90461-23037 |
US $4.02 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.52 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.08 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
