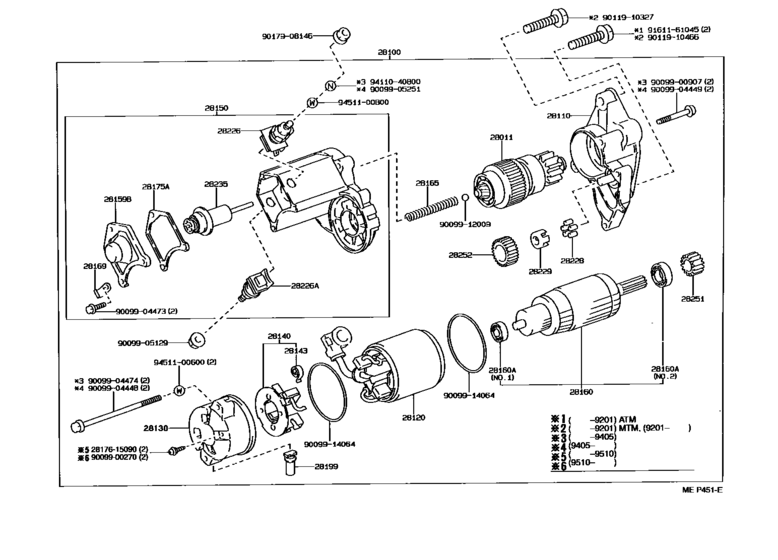

Starter ([12.1989 - 01.1996] 12V 1.4KW (8912-9601)1N) Diagram Toyota STARLET
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- NP80
- grade
- X
- ENGINE
- 1N
- TRANSMISSION
- ATM
- From
- 12.1989
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-55010 Clutch Sub-Assy, Starter[12.1989 - 03.1992] 1N..NP80 |
28011-55010 |
US $291.20 |
||
|
28011
|
28011
28011-55020 Clutch Sub-Assy, Starter[12.1989 - 05.1994] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28011-55020 |
US $291.20 |
||
|
28100
|
28100
28100-55010 Starter Assy[12.1989 - 01.1992] 1N..NP80 １２Ｖ １．４ＫＷ |
28100-55010 |
US $1,470.56 |
||
| replacement | |||||
|
28100
|
28100
28100-55020 Starter Assy[12.1989 - 01.1992] 1N..NP80 １２Ｖ １．４ＫＷ |
28100-55020 |
US $1,776.32 |
||
|
28100
|
28100
28100-55020 Starter Assy[12.1989 - 01.1992] 1N..NP80 １２Ｖ ２．０ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28100-55020 |
US $1,776.32 |
||
|
28110
|
28110
28110-55010 Housing Assy, Starter Drive[12.1989 - 03.1992] 1N..NP80 |
28110-55010 |
US $91.73 |
||
|
28110
|
28110
28115-55020
Housing Assy, Starter Drive
[12.1989 - 05.1994] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28115-55020 |
— | ||
|
28120
|
28120
28120-15090
Yoke Assy, Starter
[12.1989 - 03.1992] 1N..NP80 |
28120-15090 |
— | ||
|
28120
|
28120
28120-64020
Yoke Assy, Starter
[12.1989 - 05.1994] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28120-64020 |
— | ||
|
28130
|
28130
28130-55010 Frame Assy, Starter Commutator End[12.1989 - 03.1992] 1N..NP80 |
28130-55010 |
US $56.06 |
||
|
28140
|
28140
28140-15090
Holder Assy, Starter Brush
[12.1989 - 03.1992] 1N..NP80 |
28140-15090 |
— | ||
|
28140
|
28140
28140-54070
Holder Assy, Starter Brush
[12.1989 - 05.1994] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28140-54070 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[12.1989 - 09.1995] 1N..NP80 |
90099-17112 |
— | ||
|
28143
|
28143
90099-17115
Spring, Starter Brush
[12.1989 - 05.1994] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
90099-17115 |
— | ||
|
28150
|
28150
28150-55010 Switch Assy, Magnet Starter[12.1989 - 01.1992] 1N..NP80 |
28150-55010 |
US $346.53 |
||
|
28150
|
28150
28150-55020 Switch Assy, Magnet Starter[12.1989 - 01.1992] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28150-55020 |
US $346.53 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[12.1989 - 01.1992] 1N..NP80; 4EF#..EP8# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28159-10040 |
— | ||
|
28160
|
28160
28160-15091
Armature Assy, Starter
[12.1989 - 03.1992] 1N..NP80 |
28160-15091 |
— | ||
|
28160
|
28160
28160-54070 Armature Assy, Starter[12.1989 - 01.1992] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28160-54070 |
US $487.76 |
||
| replacement | |||||
|
28160
|
28160
28160-54071
Armature Assy, Starter
[12.1989 - 01.1992] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28160-54071 |
— | ||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[12.1989 - 05.1994] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,ＮＯ．１ |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10131 Bearing, Starter Armature[12.1989 - 05.1994] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,ＮＯ．２ |
90099-10131 |
US $7.43 |
||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[12.1989 - 03.1992] 1N..NP80 ＮＯ．２ |
90099-10143 |
— | ||
|
28160A
|
28160A
90099-10144
Bearing, Starter Armature
[12.1989 - 03.1992] 1N..NP80 ＮＯ．１ |
90099-10144 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[12.1989 - 03.1992] 1N..NP80; 4EF#..EP8# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28165-26040 |
— | ||
|
28169
|
28169
28169-10040
Clamp, Starter Motor Lead Wire
[12.1989 - 01.1992] 1N..NP80..4FC |
28169-10040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[12.1989 - 01.1992] 1N..NP80; 4EF#..EP8# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28175-10040 |
— | ||
|
28199
|
28199
28199-72020
Cover, Starter End Frame
[12.1989 - 03.1992] 1N..NP80 |
28199-72020 |
— | ||
|
28226
|
28226
28226-64110
Starter Kit, Battery Terminal
[12.1989 - 01.1992] 1N..NP80 |
28226-64110 |
— | ||
|
28226A
|
28226A
28226-54100
Starter Kit, Motor Terminal
[12.1989 - 01.1991] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28226-54100 |
— | ||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[12.1989 - 01.1992] 1N..NP80 |
28226-72010 |
from US $10.49 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[12.1989 - 09.1995] 1N..NP80 |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[12.1989 - 03.1992] 1N..NP80; 4EF#..EP8# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[12.1989 - 01.1992] 1N..NP80; 4EF#..EP8# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28235-35080 |
from US $25.68 |
||
|
28251
|
28251
28251-15090
Pinion, Starter Drive
[12.1989 - 03.1992] 1N..NP80 |
28251-15090 |
— | ||
|
28251
|
28251
28251-54070
Plate, Lead, Switch Connecting
[12.1989 - 05.1994] 1N..NP80 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28251-54070 |
— | ||
|
28252
|
28252
28254-54070
Pinion, Starter Drive
[12.1989 - 03.1992] 1N..NP80 |
28254-54070 |
— | ||
|
2817615090
|
2817615090
28176-15090
Screw, Starter
|
28176-15090 |
— | ||
| replacement | |||||
|
2817615090
|
2817615090
28176-87701
Screw, Starter
|
28176-87701 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9011910327
|
9011910327
90119-10327 New Genuine Part |
90119-10327 |
US $4.51 |
||
|
9011910466
|
9011910466
90119-10466
Bolt(For Transaxle & Engine Setting)
|
90119-10466 |
— | ||
| replacement | |||||
|
9011910466
|
9011910466
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.33 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.21 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
