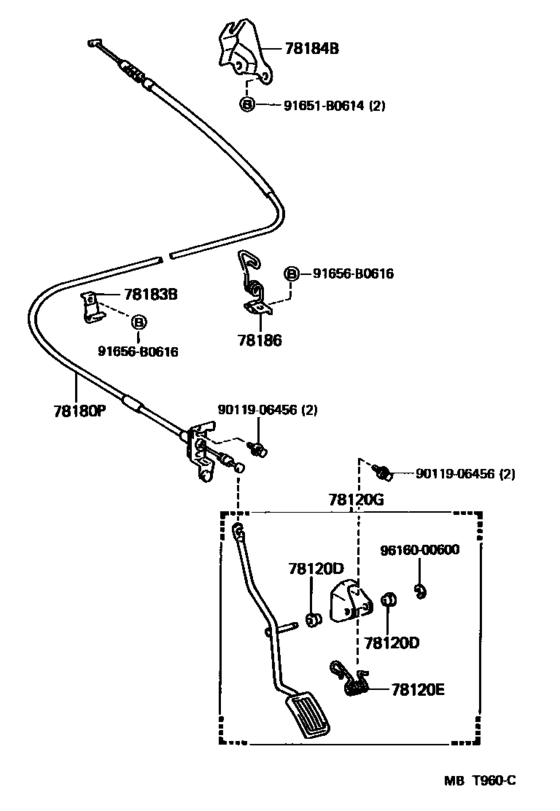

Accelerator Link ([12.1989 - ] (8912- )NP80) Diagram Toyota STARLET
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- NP80
- grade
- STD
- ENGINE
- 1N
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 05.1994
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78120D
|
78120D
90386-08003
Bush, Accelerator Bellcrank
[12.1989 - 01.1996] EP8#,NP80..LHD |
90386-08003 |
— | ||
|
78120E
|
78120E
90508-20111 Spring, Tension (For Accelerator Link Rod)TENSION (FOR ACCELERATOR LINK ROD) [12.1989 - 01.1996] EP8#,NP80..LHD |
90508-20111 |
US $2.48 |
||
|
78120G
|
78120G
78120-10070 Rod Assy, Accelerator PedalACCELERATOR PEDAL [12.1989 - 01.1996] EP8#,NP80..LHD |
78120-10070 |
US $49.21 |
||
|
78180P
|
78180P
78180-10540 Cable Assy, Accelerator ControlACCELERATOR CONTROL [12.1989 - 02.1992] NP80 |
78180-10540 |
US $52.71 |
||
| replacement | |||||
|
78180P
|
78180P
78180-10541 Cable Assy, Accelerator ControlACCELERATOR CONTROL [12.1989 - 02.1992] NP80 |
78180-10541 |
US $52.71 |
||
|
78180P
|
78180P
78180-10541 Cable Assy, Accelerator ControlACCELERATOR CONTROL [02.1992 - 01.1996] NP80 |
78180-10541 |
US $52.71 |
||
|
78183B
|
78183B
78183-10070 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [12.1989 - 01.1996] NP80 |
78183-10070 |
US $7.43 |
||
|
78184B
|
78184B
78024-10010 Bracket, Accelerator Control Cable[12.1989 - 01.1996] NP80 |
78024-10010 |
US $39.31 |
||
|
78186
|
78186
78186-10110 Support, Accelerator Control Cable, No.1[12.1989 - 01.1991] NP80 |
78186-10110 |
US $6.70 |
||
| replacement | |||||
|
78186
|
78186
78186-10150 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [12.1989 - 01.1991] NP80 |
78186-10150 |
US $6.84 |
||
|
78186
|
78186
78186-10150 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [01.1991 - 01.1996] NP80 |
78186-10150 |
US $6.84 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91656B0616
|
91656B0616
91656-B0616
New Genuine Part
|
91656-B0616 |
— | ||
| replacement | |||||
|
91656B0616
|
91656B0616
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011906456
|
9011906456
90119-06456 New Genuine Part |
90119-06456 |
US $0.42 |
||
| replacement | |||||
|
9011906456
|
9011906456
91653-A0620 New Genuine Part |
91653-A0620 |
US $0.96 |
||
|
9616008600
|
9616008600
96160-08600
New Genuine Part
|
96160-08600 |
— | ||
