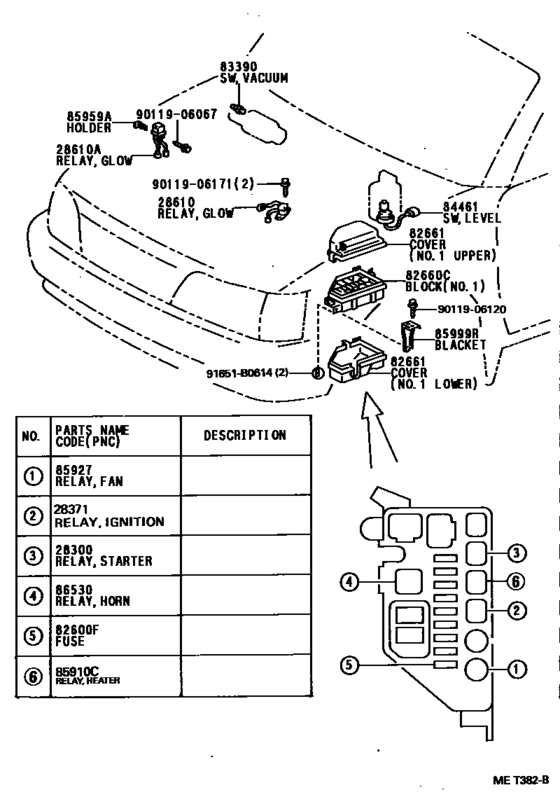

Switch & Relay & Computer ([01.1992 - 01.1996] (9201-9601)NP80) Diagram Toyota STARLET
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- NP80
- grade
- STD
- ENGINE
- 1N
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 05.1994
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[01.1992 - 01.1996] 1E,2E#,1N..EP8#,NP80 |
28300-10020 |
from US $53.76 |
||
|
28371
|
28371
90987-02006 Relay[12.1989 - 06.1991] 1E,2E#,1N..EP8#,NP80 |
90987-02006 |
from US $27.65 |
||
|
28610
|
28610
28610-54310
Relay Assy, Glow Plug
[12.1989 - 01.1992] 1N..NP80 |
28610-54310 |
— | ||
|
28610
|
28610
28610-54370
Relay Assy, Glow Plug
[01.1992 - 01.1996] 1N..NP80 |
28610-54370 |
— | ||
|
28610A
|
28610A
28610-64090 Relay Assy, Glow Plug[12.1989 - 01.1992] 1N..NP80 |
28610-64090 |
US $116.48 |
||
|
28610A
|
28610A
28610-64110 Relay Assy, Glow Plug[01.1992 - 01.1996] 1N..NP80 |
28610-64110 |
from US $66.03 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[12.1989 - 12.1990] EP8#,NP80 30A |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[12.1989 - 04.1990] EP80,NP80..LHD 10A,*FRG |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1989 - 06.1991] NP80;EP8#..RHD 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1989 - 12.1990] EP8#,NP80 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[04.1990 - 06.1991] EP8#,NP80 7.5A |
90982-09005 |
from US $0.99 |
||
|
82660C
|
82660C
82660-10110 Block Assy, Relay[12.1989 - 06.1991] EP8#,NP80 |
82660-10110 |
US $42.95 |
||
|
82660C
|
82660C
82660-10130
Block Assy, Relay
[01.1992 - 05.1994] EP8#,NP80 |
82660-10130 |
— | ||
|
82661
|
82661
82662-10060 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [12.1989 - 01.1992] NP80 *FRG,NO.1,UPPER |
82662-10060 |
US $41.64 |
||
|
82661
|
82661
82662-10070 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [12.1989 - 01.1992] NP80 NO.1,UPPER |
82662-10070 |
US $41.64 |
||
|
82661
|
82661
82662-10230 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [01.1992 - 05.1994] NP80 NO.1 UPPER |
82662-10230 |
US $41.20 |
||
| replacement | |||||
|
82661
|
82661
82662-10231 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [01.1992 - 05.1994] NP80 NO.1 UPPER |
82662-10231 |
US $41.06 |
||
|
82661
|
82661
82663-10010 Cover, Relay Block, No.1[12.1989 - 06.1991] EP8#,NP80 NO.1,LOWER |
82663-10010 |
US $26.35 |
||
|
82661
|
82661
82663-10040 Cover, Relay Block, No.1[01.1992 - 01.1996] EP8#,NP80..LHD NO.1 LOWER |
82663-10040 |
US $24.61 |
||
|
83390
|
83390
83390-27120 Switch Assy, Vacuum Warning[12.1989 - 01.1992] NP80 |
83390-27120 |
US $65.96 |
||
|
83390
|
83390
83390-30100 Switch Assy, Vacuum Warning[01.1992 - 01.1996] NP80 |
83390-30100 |
US $48.05 |
||
|
84461
|
84461
84461-35060 Level Warning Switch Assy[12.1989 - 01.1996] NP80 |
84461-35060 |
from US $85.82 |
||
|
85927
|
85927
90987-03001 Relay[12.1989 - 01.1996] EP8#,NP80 |
90987-03001 |
from US $33.90 |
||
|
85959A
|
85959A
85959-10020 Holder, RelayRELAY [01.1992 - 01.1996] NP80 |
85959-10020 |
US $5.82 |
||
|
85999R
|
85999R
85999-10130 Bracket, Relay, No.3[12.1989 - 06.1991] EP8#,NP80 |
85999-10130 |
US $9.03 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[12.1989 - 01.1996] EP8#,NP80 |
86530-20070 |
from US $12.19 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.08 |
||
