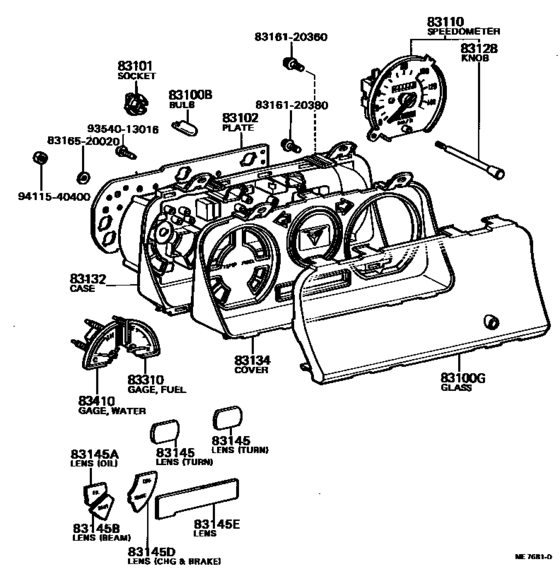

Meter ([03.1979 - 01.1982] (7903-8201)) Diagram Toyota STOUT
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- RK110
- body
- T1
- ENGINE
- 5R
- From
- 03.1979
- To
- 01.1982
- Vehicle Model
- STOUT
- Loading Capacity
- 175
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[03.1979 - 03.1986] RK11# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[03.1979 - 03.1986] RK11# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-89130
Glass, Combination Meter
[03.1979 - 01.1982] RK110 |
83138-89130 |
— | ||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[03.1979 - 03.1986] RK11# |
83101-20040 |
from US $1.77 |
||
|
83102
|
83102
83102-89130 Plate Sub-Assy, Combination Meter Circuit, No.1[03.1979 - 01.1982] RK110 |
83102-89130 |
US $58.39 |
||
| replacement | |||||
|
83102
|
83102
83102-89142
Plate Sub-Assy, Combination Meter Circuit, No.1
[03.1979 - 01.1982] RK110 |
83102-89142 |
— | ||
|
83110
|
83110
83110-89130 Speedometer Assy[03.1979 - 01.1982] RK110 |
83110-89130 |
US $391.66 |
||
|
83128
|
83128
83128-89130 Knob, Trip Counter[03.1979 - 03.1986] RK11# |
83128-89130 |
US $3.06 |
||
|
83132
|
83132
83132-89130 Case, Combination Meter[03.1979 - 01.1982] RK110 |
83132-89130 |
US $45.28 |
||
|
83134
|
83134
83134-89130 Cover, Combination Meter, No.1[03.1979 - 08.1980] RK110 |
83134-89130 |
US $50.81 |
||
|
83134
|
83134
83134-89204
Cover, Combination Meter, No.1
[08.1980 - 01.1982] RK110 |
83134-89204 |
— | ||
|
83145
|
83145
83145-89114
Lens, Meter, No.1
[03.1979 - 01.1982] RK110 TURN |
83145-89114 |
— | ||
|
83145A
|
83145A
83145-89113
Lens, Meter, No.2
[03.1979 - 08.1980] RK110 OIL |
83145-89113 |
— | ||
|
83145A
|
83145A
83145-89212
Lens, Meter, No.2
[08.1980 - 01.1982] RK110 OIL |
83145-89212 |
— | ||
|
83145B
|
83145B
83145-89112
Lens, Meter, No.3
[03.1979 - 08.1980] RK110 BEAM |
83145-89112 |
— | ||
|
83145B
|
83145B
83145-89213
Lens, Meter, No.3
[08.1980 - 01.1982] RK110 BEAM |
83145-89213 |
— | ||
|
83145D
|
83145D
83145-89111
Lens, Meter, No.5
[03.1979 - 08.1980] RK110 CHG & BRAKE |
83145-89111 |
— | ||
|
83145D
|
83145D
83145-89218
Lens, Meter, No.5
[08.1980 - 01.1982] RK110 CHG & BRAKE |
83145-89218 |
— | ||
|
83145E
|
83145E
83145-89119
Lens, Meter, No.6
[03.1979 - 01.1982] RK110 MEKURA |
83145-89119 |
— | ||
|
83310
|
83310
83310-89130
Gage Assy, Fuel Receiver
[03.1979 - 01.1982] RK110 |
83310-89130 |
— | ||
|
83410
|
83410
83410-89130
Gage Assy, Water Temperature Receiver
[03.1979 - 12.1979] RK110 |
83410-89130 |
— | ||
|
83410
|
83410
83410-89173
Gage Assy, Water Temperature Receiver
[12.1979 - 01.1982] RK110 |
83410-89173 |
— | ||
|
8316120360
|
8316120360
83161-20360 Case, Combination Meter Mirror, No.1 |
83161-20360 |
US $1.75 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316520020
|
8316520020
83165-20020 Mirror, Combination Meter, No.2 |
83165-20020 |
US $1.16 |
||
|
9354013016
|
9354013016
93540-13016
Bulb, Combination Meter, No.1
|
93540-13016 |
— | ||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
