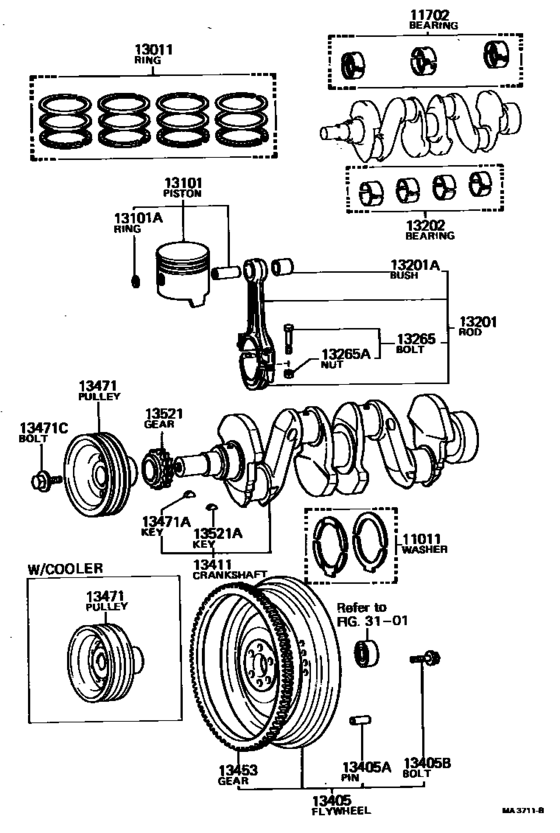

Crankshaft & Piston ([03.1979 - 09.1986] (7903-8609)) Diagram Toyota STOUT
- Year
- 1979 - 1986
- Sales region
- General
- Frame
- RK110
- body
- TW
- ENGINE
- 5R
- DESTINATION
- GEN
- From
- 03.1979
- To
- 09.1986
- Gear Shift Type
- 4H
- Vehicle Model
- STOUT
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-38010 Washer Set, Crankshaft Thrust[03.1979 - 09.1986] 5R..RK110 STD,STD |
11011-38010 |
US $49.65 |
||
| replacement | |||||
|
11011
|
11011
11011-35011 Washer Set, Crankshaft Thrust[03.1979 - 09.1986] 5R..RK110 STD,STD |
11011-35011 |
US $45.95 |
||
|
11011
|
11011
11012-38010 Washer Set, Crankshaft Thrust[03.1979 - 09.1986] 5R..RK110 O/S 0.125,O/S 0.125 |
11012-38010 |
US $57.66 |
||
| replacement | |||||
|
11011
|
11011
11012-35021 Washer Set, Crankshaft Thrust[03.1979 - 09.1986] 5R..RK110 O/S 0.125,O/S 0.125 |
11012-35021 |
US $55.04 |
||
|
11011
|
11011
11013-38010
Washer Set, Crankshaft Thrust
[03.1979 - 09.1986] 5R..RK110 O/S 0.250,O/S 0.250 |
11013-38010 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-35021 Washer Set, Crankshaft Thrust[03.1979 - 09.1986] 5R..RK110 O/S 0.250,O/S 0.250 |
11013-35021 |
US $55.04 |
||
|
11702
|
11702
11702-44021 Bearing Set, CrankshaftCRANKSHAFT [03.1979 - 09.1979] 5R..RK110 STD |
11702-44021 |
US $311.58 |
||
| replacement | |||||
|
11702
|
11702
11702-44040 Bearing Set, CrankshaftCRANKSHAFT [03.1979 - 09.1979] 5R..RK110 STD |
11702-44040 |
US $313.04 |
||
|
11702
|
11702
11702-44040 Bearing Set, CrankshaftCRANKSHAFT [09.1979 - 09.1986] 5R..RK110 STD |
11702-44040 |
US $313.04 |
||
|
11702
|
11702
11703-44021 Bearing Set, CrankshaftCRANKSHAFT [03.1979 - 09.1979] 5R..RK110 U/S 0.05 |
11703-44021 |
US $311.58 |
||
| replacement | |||||
|
11702
|
11702
11703-44040 Bearing Set, CrankshaftCRANKSHAFT [03.1979 - 09.1979] 5R..RK110 U/S 0.05 |
11703-44040 |
US $313.04 |
||
|
11702
|
11702
11703-44040 Bearing Set, CrankshaftCRANKSHAFT [09.1979 - 09.1986] 5R..RK110 U/S 0.05 |
11703-44040 |
US $313.04 |
||
|
11702
|
11702
11704-44021 Bearing Set, CrankshaftCRANKSHAFT [03.1979 - 09.1979] 5R..RK110 U/S 0.25 |
11704-44021 |
US $311.58 |
||
| replacement | |||||
|
11702
|
11702
11704-44040 Bearing Set, CrankshaftCRANKSHAFT [03.1979 - 09.1979] 5R..RK110 U/S 0.25 |
11704-44040 |
US $313.04 |
||
|
11702
|
11702
11704-44040 Bearing Set, CrankshaftCRANKSHAFT [09.1979 - 09.1986] 5R..RK110 U/S 0.25 |
11704-44040 |
US $313.04 |
||
|
11702
|
11702
11705-44021 Bearing Set, CrankshaftCRANKSHAFT [03.1979 - 09.1979] 5R..RK110 U/S 0.50 |
11705-44021 |
US $311.58 |
||
| replacement | |||||
|
11702
|
11702
11705-44040 Bearing Set, CrankshaftCRANKSHAFT [03.1979 - 09.1979] 5R..RK110 U/S 0.50 |
11705-44040 |
US $313.04 |
||
|
11702
|
11702
11705-44040 Bearing Set, CrankshaftCRANKSHAFT [09.1979 - 09.1986] 5R..RK110 U/S 0.50 |
11705-44040 |
US $313.04 |
||
|
13011
|
13011
13011-44043 Ring Set, PistonPISTON [03.1979 - 12.1984] 5R..RK110 STD |
13011-44043 |
US $241.70 |
||
| replacement | |||||
|
13011
|
13011
13011-44044 Ring Set, PistonPISTON [03.1979 - 12.1984] 5R..RK110 STD |
13011-44044 |
US $241.70 |
||
|
13011
|
13011
13011-44044 Ring Set, PistonPISTON [12.1984 - 09.1986] 5R..RK110 STD |
13011-44044 |
US $241.70 |
||
|
13011
|
13011
13013-44043 Ring Set, PistonPISTON [03.1979 - 12.1984] 5R..RK110 O/S 0.50 |
13013-44043 |
US $243.15 |
||
| replacement | |||||
|
13011
|
13011
13013-44044 Ring Set, PistonPISTON [03.1979 - 12.1984] 5R..RK110 O/S 0.50 |
13013-44044 |
US $244.61 |
||
|
13011
|
13011
13013-44044 Ring Set, PistonPISTON [12.1984 - 09.1986] 5R..RK110 O/S 0.50 |
13013-44044 |
US $244.61 |
||
|
13011
|
13011
13014-44043 Ring Set, PistonPISTON [03.1979 - 12.1984] 5R..RK110 O/S 0.75 |
13014-44043 |
US $243.15 |
||
| replacement | |||||
|
13011
|
13011
13014-44044 Ring Set, PistonPISTON [03.1979 - 12.1984] 5R..RK110 O/S 0.75 |
13014-44044 |
from US $199.89 |
||
|
13011
|
13011
13014-44044 Ring Set, PistonPISTON [12.1984 - 09.1986] 5R..RK110 O/S 0.75 |
13014-44044 |
from US $199.89 |
||
|
13011
|
13011
13015-44043 Ring Set, PistonPISTON [03.1979 - 12.1984] 5R..RK110 O/S 1.00 |
13015-44043 |
US $243.15 |
||
| replacement | |||||
|
13011
|
13011
13015-44044 Ring Set, PistonPISTON [03.1979 - 12.1984] 5R..RK110 O/S 1.00 |
13015-44044 |
US $244.61 |
||
|
13011
|
13011
13015-44044 Ring Set, PistonPISTON [12.1984 - 09.1986] 5R..RK110 O/S 1.00 |
13015-44044 |
US $244.61 |
||
|
13101
|
13101
13101-44015 Piston Sub-Assy, W/pinW/PIN [03.1979 - 04.1985] 5R..RK110 STD |
13101-44015 |
US $100.46 |
||
| replacement | |||||
|
13101
|
13101
13101-44016 Piston Sub-Assy, W/pinW/PIN [03.1979 - 04.1985] 5R..RK110 STD |
13101-44016 |
US $100.46 |
||
|
13101
|
13101
13101-44016 Piston Sub-Assy, W/pinW/PIN [04.1985 - 09.1986] 5R..RK110 STD |
13101-44016 |
US $100.46 |
||
|
13101
|
13101
13103-44015 Piston Sub-Assy, W/pinW/PIN [03.1979 - 01.1986] 5R..RK110 O/S 0.50 |
13103-44015 |
US $100.46 |
||
| replacement | |||||
|
13101
|
13101
13103-44016 Piston Sub-Assy, W/pinW/PIN [03.1979 - 01.1986] 5R..RK110 O/S 0.50 |
13103-44016 |
US $106.29 |
||
|
13101
|
13101
13103-44016 Piston Sub-Assy, W/pinW/PIN [01.1986 - 09.1986] 5R..RK110 O/S 0.50 |
13103-44016 |
US $106.29 |
||
|
13101
|
13101
13104-44015 Piston Sub-Assy, W/pinW/PIN [03.1979 - 01.1986] 5R..RK110 O/S 0.75 |
13104-44015 |
US $100.46 |
||
| replacement | |||||
|
13101
|
13101
13104-44016 Piston Sub-Assy, W/pinW/PIN [03.1979 - 01.1986] 5R..RK110 O/S 0.75 |
13104-44016 |
from US $86.35 |
||
|
13101
|
13101
13104-44016 Piston Sub-Assy, W/pinW/PIN [01.1986 - 09.1986] 5R..RK110 O/S 0.75 |
13104-44016 |
from US $86.35 |
||
|
13101
|
13101
13105-44015 Piston Sub-Assy, W/pinW/PIN [03.1979 - 01.1986] 5R..RK110 O/S 1.00 |
13105-44015 |
US $100.46 |
||
| replacement | |||||
|
13101
|
13101
13105-44016 Piston Sub-Assy, W/pinW/PIN [03.1979 - 01.1986] 5R..RK110 O/S 1.00 |
13105-44016 |
US $106.29 |
||
|
13101
|
13101
13105-44016 Piston Sub-Assy, W/pinW/PIN [01.1986 - 09.1986] 5R..RK110 O/S 1.00 |
13105-44016 |
US $106.29 |
||
|
13101A
|
13101A
90521-25052 Ring, Hole Snap(For Piston Pin)[03.1979 - 09.1986] 5R..RK110 |
90521-25052 |
US $2.48 |
||
|
13201
|
13201
13201-44013 Rod Sub-Assy, ConnectingCONNECTING [03.1979 - 09.1986] 5R..RK110 |
13201-44013 |
US $155.79 |
||
|
13201A
|
13201A
90999-73064 Bush(For Connecting Rod Small End)[03.1979 - 09.1986] 5R..RK110 |
90999-73064 |
US $9.76 |
||
|
13202
|
13202
13202-44012 Bearing Set, Connecting RodCONNECTING ROD [03.1979 - 09.1979] 5R..RK110 STD |
13202-44012 |
US $151.42 |
||
| replacement | |||||
|
13202
|
13202
13202-44040
Bearing Set, Connecting Rod
[03.1979 - 09.1979] 5R..RK110 STD |
13202-44040 |
— | ||
|
13202
|
13202
13202-44040
Bearing Set, Connecting Rod
[09.1979 - 09.1986] 5R..RK110 STD |
13202-44040 |
— | ||
|
13202
|
13202
13203-44012
Bearing Set, Connecting Rod
[03.1979 - 09.1979] 5R..RK110 U/S 0.05 |
13203-44012 |
— | ||
| replacement | |||||
|
13202
|
13202
13203-44040 Bearing Set, Connecting RodCONNECTING ROD [03.1979 - 09.1979] 5R..RK110 U/S 0.05 |
13203-44040 |
US $183.46 |
||
|
13202
|
13202
13203-44040 Bearing Set, Connecting RodCONNECTING ROD [09.1979 - 09.1986] 5R..RK110 U/S 0.05 |
13203-44040 |
US $183.46 |
||
|
13202
|
13202
13204-44012
Bearing Set, Connecting Rod
[03.1979 - 09.1979] 5R..RK110 U/S 0.25 |
13204-44012 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-44040 Bearing Set, Connecting RodCONNECTING ROD [03.1979 - 09.1979] 5R..RK110 U/S 0.25 |
13204-44040 |
US $183.46 |
||
|
13202
|
13202
13204-44040 Bearing Set, Connecting RodCONNECTING ROD [09.1979 - 09.1986] 5R..RK110 U/S 0.25 |
13204-44040 |
US $183.46 |
||
|
13202
|
13202
13205-44012
Bearing Set, Connecting Rod
[03.1979 - 09.1979] 5R..RK110 U/S 0.50 |
13205-44012 |
— | ||
| replacement | |||||
|
13202
|
13202
13205-44040 Bearing Set, Connecting RodCONNECTING ROD [03.1979 - 09.1979] 5R..RK110 U/S 0.50 |
13205-44040 |
US $183.46 |
||
|
13202
|
13202
13205-44040 Bearing Set, Connecting RodCONNECTING ROD [09.1979 - 09.1986] 5R..RK110 U/S 0.50 |
13205-44040 |
US $183.46 |
||
|
13265
|
13265
13265-49015 Bolt, Connecting Rod[03.1979 - 09.1986] 5R..RK110 |
13265-49015 |
from US $5.95 |
||
|
13265A
|
13265A
90170-10198 Nut, Hexagon(For Connecting Rod Bolt)[03.1979 - 09.1986] 5R..RK110 |
90170-10198 |
US $2.62 |
||
|
13405
|
13405
13405-49155 Flywheel Sub-Assy[03.1979 - 09.1986] 5R..RK110 N=115 |
13405-49155 |
US $374.19 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[03.1979 - 04.1988] 5R..RK110 L=23,OD=8,L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[03.1979 - 04.1988] 5R..RK110 *10-1.25PX26-18 |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-44900 Crankshaft[03.1979 - 09.1986] 5R..RK110 |
13411-44900 |
US $1,448.72 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[03.1979 - 04.1988] 5R..RK110 N=115 |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13407-44011 Pulley, CrankshaftCRANKSHAFT [03.1979 - 09.1986] 5R..RK110 |
13407-44011 |
US $106.29 |
||
|
13471
|
13471
13471-44080 Pulley, CrankshaftCRANKSHAFT [03.1979 - 09.1986] 5R..RK110 W/COOLER |
13471-44080 |
US $228.59 |
||
|
13471A
|
13471A
95161-10519 Key(For Oil Pump Drive Spline)[03.1979 - 09.1986] 5R..RK110 |
95161-10519 |
from US $2.03 |
||
|
13471C
|
13471C
90105-14048
Bolt(For Crankshaft Pulley Set)
[03.1979 - 09.1986] 5R..RK110 *14-1.5PX26-21 |
90105-14048 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[03.1979 - 04.1988] 5R..RK110 N=18 |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[03.1979 - 09.1986] 5R..RK110 |
95161-10519 |
from US $2.03 |
||
