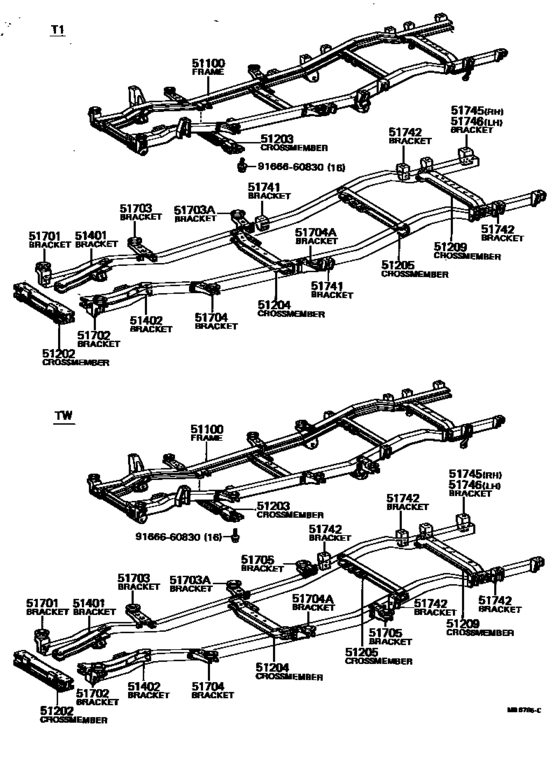

Frame ([03.1979 - 09.1986] (7903-8609)) Diagram Toyota STOUT
- Year
- 1979 - 1986
- Sales region
- General
- Frame
- RK110
- body
- TW
- ENGINE
- 5R
- DESTINATION
- GEN
- From
- 03.1979
- To
- 09.1986
- Gear Shift Type
- 4H
- Vehicle Model
- STOUT
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100
|
51100
51001-3D120
Frame Assy
[03.1979 - 09.1986] RK110..RHD..TW |
51001-3D120 |
— | ||
|
51202
|
51202
51201-35090
Crossmember Sub-Assy, Frame, No.1
[03.1979 - 09.1986] RK110 |
51201-35090 |
— | ||
|
51203
|
51203
51202-35140 Crossmember Sub-Assy, Frame, No.2FRAME, NO.2 [03.1979 - 04.1988] RK110 |
51202-35140 |
US $228.59 |
||
|
51204
|
51204
51203-35180 Crossmember Sub-Assy, Frame, No.3FRAME, NO.3 [03.1979 - 04.1988] RK110 |
51203-35180 |
US $96.10 |
||
|
51205
|
51205
51204-35170 Crossmember Sub-Assy, Frame, No.4FRAME, NO.4 [03.1979 - 04.1988] RK110 |
51204-35170 |
US $228.59 |
||
|
51209
|
51209
51209-35030
Crossmember Sub-Assy, Frame, No.8
[03.1979 - 06.1986] RK110 |
51209-35030 |
— | ||
|
51209
|
51209
51291-35030
Crossmember Sub-Assy, Frame, No.8
[06.1986 - 09.1986] RK110 |
51291-35030 |
— | ||
|
51401
|
51401
51025-35011
Bracket Sub-Assy, Engine Front Mounting, Rh
[03.1979 - 09.1986] RK110 |
51025-35011 |
— | ||
|
51402
|
51402
51026-35011
Bracket Sub-Assy, Engine Front Mounting, Lh
[03.1979 - 09.1986] RK110 |
51026-35011 |
— | ||
|
51701
|
51701
51701-35070 Bracket Sub-Assy, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [03.1979 - 04.1988] RK110 |
51701-35070 |
US $28.97 |
||
|
51702
|
51702
51702-35060 Bracket Sub-Assy, Cab Mounting, No.1 LhCAB MOUNTING, NO.1 LH [03.1979 - 04.1988] RK110 |
51702-35060 |
US $29.70 |
||
|
51703
|
51703
51703-35030 Bracket Sub-Assy, Cab Mounting, No.2, RhCAB MOUNTING, NO.2, RH [03.1979 - 04.1988] RK110 |
51703-35030 |
US $75.71 |
||
|
51703A
|
51703A
51705-35070 Bracket Sub-Assy, Cab Rear Mounting, RhCAB REAR MOUNTING, RH [03.1979 - 04.1988] RK110..TW |
51705-35070 |
US $84.45 |
||
|
51704
|
51704
51704-35050
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[03.1979 - 04.1988] RK110 |
51704-35050 |
— | ||
|
51704A
|
51704A
51706-35010 Bracket Sub-Assy, Cab Rear Mounting, LhCAB REAR MOUNTING, LH [03.1979 - 04.1988] RK110..TW |
51706-35010 |
US $84.45 |
||
|
51705
|
51705
51707-35010 Bracket, Rear Body Mounting, No.5REAR BODY MOUNTING, NO.5 [03.1979 - 04.1988] RK110..TW RH |
51707-35010 |
US $78.62 |
||
|
51705
|
51705
51708-35010 Bracket, Rear Body Mounting, No.5REAR BODY MOUNTING, NO.5 [03.1979 - 04.1988] RK110..TW LH |
51708-35010 |
US $78.62 |
||
|
51741
|
51741
51753-35010 Bracket, Body Mounting, No.2REAR BODY MOUNTING, NO.1 [03.1979 - 04.1988] RK110..TW |
51753-35010 |
US $35.53 |
||
|
51742
|
51742
51753-35010 Bracket, Body Mounting, No.2REAR BODY MOUNTING, NO.1 [03.1979 - 04.1988] RK110..TW |
51753-35010 |
US $35.53 |
||
|
51745
|
51745
51768-35010
Bracket, Body Mounting, No.5
[03.1979 - 04.1988] RK110 |
51768-35010 |
— | ||
|
51746
|
51746
51769-35010
Bracket, Body Mounting, No.6
[03.1979 - 04.1988] RK110 |
51769-35010 |
— | ||
|
9166660830
|
9166660830
91666-60830 New Genuine Part |
91666-60830 |
US $2.18 |
||
| replacement | |||||
|
9166660830
|
9166660830
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
