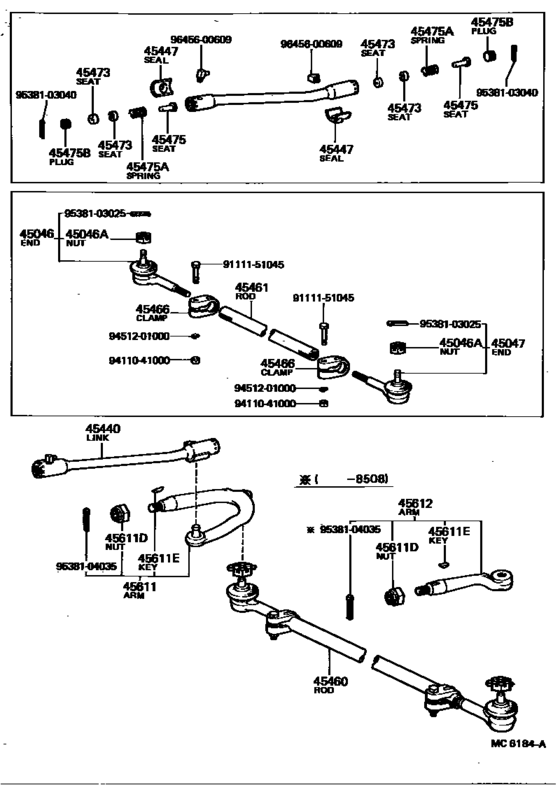

Front Steering Gear & Link ([03.1979 - ] (7903- )) Diagram Toyota STOUT
- Year
- 1979 - 1986
- Sales region
- General
- Frame
- RK110
- body
- TW
- ENGINE
- 5R
- DESTINATION
- GEN
- From
- 03.1979
- To
- 09.1986
- Gear Shift Type
- 4H
- Vehicle Model
- STOUT
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-29065 End Sub-Assy, Tie Rod, RhTIE ROD, RH [03.1979 - 04.1988] RK110 |
45046-29065 |
from US $55.76 |
||
|
45046A
|
45046A
90171-14041 Nut, Castle(For Tie Rod End)[03.1979 - 04.1988] RK110 |
90171-14041 |
US $3.93 |
||
|
45047
|
45047
45047-29025 End Sub-Assy, Tie Rod, LhTIE ROD, LH [03.1979 - 04.1988] RK110 |
45047-29025 |
US $55.76 |
||
|
45440
|
45440
45440-35050
Link Assy, Steering Drag
[03.1979 - 04.1982] RK110..RHD |
45440-35050 |
— | ||
|
45440
|
45440
45441-39125 Link Assy, Steering DragSTEERING DRAG [04.1982 - 10.1985] RK110..RHD |
45441-39125 |
US $126.67 |
||
|
45447
|
45447
45447-60010
Seal, Drag Link Dust
[03.1979 - 09.1986] RK110 |
45447-60010 |
— | ||
| replacement | |||||
|
45447
|
45447
45447-35020 Seal, Drag Link Dust[03.1979 - 09.1986] RK110 |
45447-35020 |
from US $15.50 |
||
|
45460
|
45460
45460-39105 Rod Assy, Tie, RhTIE, RH [03.1979 - 04.1988] RK110 |
45460-39105 |
from US $206.75 |
||
|
45461
|
45461
45461-35070 Rod, Steering TieSTEERING TIE [03.1979 - 04.1988] RK110 |
45461-35070 |
US $67.70 |
||
|
45466
|
45466
45466-55010 Clamp, Steering Relay Rod End[03.1979 - 04.1988] RK110 |
45466-55010 |
US $9.92 |
||
|
45473
|
45473
45473-35010 Seat, Ball Stud[03.1979 - 04.1988] RK110 |
45473-35010 |
from US $3.36 |
||
|
45475
|
45475
45475-35010 Seat, Steering Link Joint Spring[03.1979 - 04.1988] RK110 |
45475-35010 |
from US $3.52 |
||
|
45475A
|
45475A
90501-45114 Spring, Compression(For Steering Link Joint)[03.1979 - 04.1988] RK110 |
90501-45114 |
from US $2.08 |
||
|
45475B
|
45475B
90340-25001 Plug, Straight Screw(For Steering Link Joint)[03.1979 - 04.1988] RK110 |
90340-25001 |
from US $3.04 |
||
|
45611
|
45611
45601-39065 Arm, Steering Knuckle, RhSTEERING KNUCKLE, RH [03.1979 - 08.1985] RK110..RHD |
45601-39065 |
US $215.49 |
||
| replacement | |||||
|
45611
|
45611
45601-39165 Arm, Steering Knuckle, RhSTEERING KNUCKLE, RH [03.1979 - 08.1985] RK110..RHD |
45601-39165 |
US $215.49 |
||
|
45611
|
45611
45601-39165 Arm, Steering Knuckle, RhSTEERING KNUCKLE, RH [08.1985 - 04.1988] RK110..RHD |
45601-39165 |
US $215.49 |
||
|
45611D
|
45611D
90171-22038 Nut(For Steering Knuckle Arm)[03.1979 - 08.1985] RK110 |
90171-22038 |
US $7.72 |
||
|
45611D
|
45611D
90179-22007 Nut(For Steering Knuckle Arm)[08.1985 - 04.1988] RK110 |
90179-22007 |
US $4.08 |
||
|
45611E
|
45611E
90280-07012 Key, Woodruff(For Steering Idler Arm)[03.1979 - 04.1988] RK110 |
90280-07012 |
US $3.20 |
||
|
45612
|
45612
45612-39035 Arm, Steering Knuckle, LhSTEERING KNUCKLE, LH [03.1979 - 08.1985] RK110..RHD |
45612-39035 |
US $97.55 |
||
| replacement | |||||
|
45612
|
45612
45612-39145 Arm, Steering Knuckle, LhSTEERING KNUCKLE, LH [03.1979 - 08.1985] RK110..RHD |
45612-39145 |
US $100.46 |
||
|
45612
|
45612
45612-39145 Arm, Steering Knuckle, LhSTEERING KNUCKLE, LH [08.1985 - 04.1988] RK110..RHD |
45612-39145 |
US $100.46 |
||
|
9111151045
|
9111151045
91111-51045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91111-51045 |
— | ||
| replacement | |||||
|
9111151045
|
9111151045
91112-61045 Bolt(For Rear Stabilizer) |
91112-61045 |
from US $1.21 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
|
9538103040
|
9538103040
95381-03040 PINCOTTER |
95381-03040 |
US $1.28 |
||
|
9538104035
|
9538104035
95381-04035 PIN |
95381-04035 |
from US $0.80 |
||
|
9645600609
|
9645600609
96456-00609 FITTING GREASE |
96456-00609 |
US $3.84 |
||
