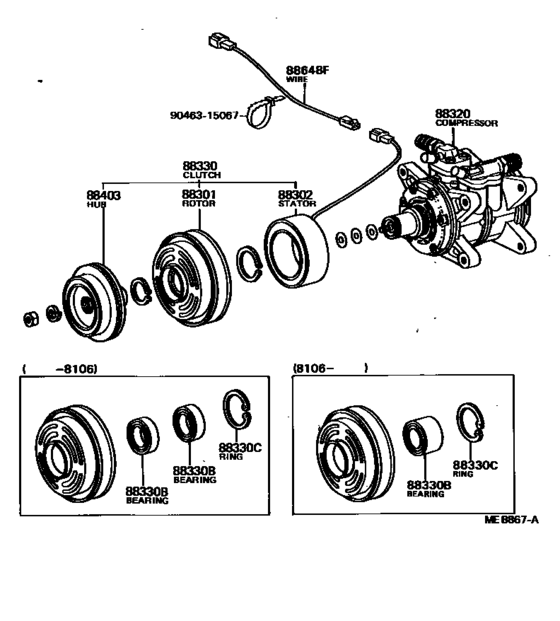

Heating & Air Conditioning - Compressor ([03.1979 - 09.1986] (7903-8609)GEN) Diagram Toyota STOUT
- Year
- 1979 - 1986
- Sales region
- General
- Frame
- RK110
- body
- TW
- ENGINE
- 5R
- DESTINATION
- GEN
- From
- 03.1979
- To
- 09.1986
- Gear Shift Type
- 4H
- Vehicle Model
- STOUT
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-12040
Rotor Sub-Assy, Magnet Clutch
[03.1979 - 06.1981] RK110..GEN |
88412-12040 |
— | ||
|
88301
|
88301
88412-14010
Rotor Sub-Assy, Magnet Clutch
[06.1981 - 09.1986] RK110..GEN |
88412-14010 |
— | ||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[06.1981 - 02.2000] RK110,YK110..GEN |
88411-14050 |
— | ||
|
88302
|
88302
88411-22040
Stator Sub-Assy, Magnet Clutch
[03.1979 - 06.1981] RK110..GEN |
88411-22040 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[03.1979 - 06.1981] RK110..GEN |
88411-14050 |
— | ||
|
88320
|
88320
88320-35020
Compressor Assy, Cooler
[03.1979 - 08.1981] RK110..GEN |
88320-35020 |
— | ||
|
88320
|
88320
88320-35021
Compressor Assy, Cooler
[08.1981 - 09.1986] RK110..GEN |
88320-35021 |
— | ||
|
88330
|
88330
88410-14090 Clutch Assy, Magnet[06.1981 - 09.1986] RK110..GEN |
88410-14090 |
US $551.82 |
||
|
88330
|
88330
88410-22060 Clutch Assy, Magnet[03.1979 - 06.1981] RK110..GEN |
88410-22060 |
US $582.40 |
||
| replacement | |||||
|
88330
|
88330
88410-14090 Clutch Assy, Magnet[03.1979 - 06.1981] RK110..GEN |
88410-14090 |
US $551.82 |
||
|
88330B
|
88330B
90099-10117
Bearing, Magnet Clutch
[03.1979 - 06.1981] RK110..GEN |
90099-10117 |
— | ||
| replacement | |||||
|
88330B
|
88330B
90099-10133 Bearing, Ball(For Clutch Pully)[03.1979 - 06.1981] RK110..GEN |
90099-10133 |
US $12.15 |
||
|
88330B
|
88330B
90099-10133 Bearing, Ball(For Clutch Pully)[06.1981 - 02.2000] RK110,YK110..GEN |
90099-10133 |
US $12.15 |
||
|
88330C
|
88330C
90099-07094
Ring, Snap (For Magnet Clutch)
[03.1979 - 06.1981] RK110..GEN |
90099-07094 |
— | ||
|
88330C
|
88330C
90099-07114 Ring, Snap (For Magnet Clutch)[06.1981 - 02.2000] RK110,YK110..GEN |
90099-07114 |
from US $1.15 |
||
|
88403
|
88403
88403-14030
Hub Sub-Assy, Magnet Clutch
[06.1981 - 02.2000] RK110,YK110..GEN |
88403-14030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[06.1981 - 02.2000] RK110,YK110..GEN |
88403-12030 |
— | ||
|
88403
|
88403
88403-26030
Hub Sub-Assy, Magnet Clutch
[03.1979 - 06.1981] RK110..GEN |
88403-26030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-30270
Hub Sub-Assy, Magnet Clutch
[03.1979 - 06.1981] RK110..GEN |
88403-30270 |
— | ||
|
88648F
|
88648F
88648-89107
Wire, Magnet Clutch
[01.1982 - 02.2000] RK110,YK110..GEN |
88648-89107 |
— | ||
|
9046315067
|
9046315067
90463-15067
New Genuine Part
|
90463-15067 |
— | ||
