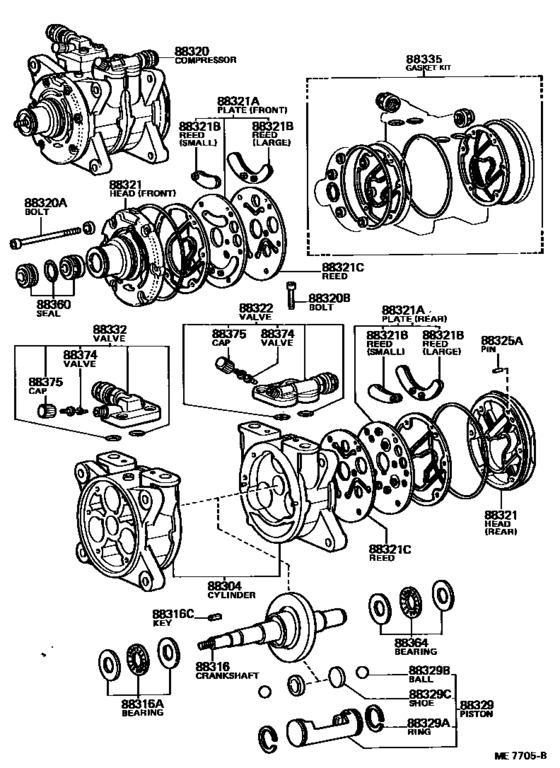

Heating & Air Conditioning - Compressor ([03.1979 - 08.1981] (7903-8108)GEN) Diagram Toyota STOUT
- Year
- 1979 - 1986
- Sales region
- General
- Frame
- RK110
- body
- TW
- ENGINE
- 5R
- DESTINATION
- GEN
- From
- 03.1979
- To
- 09.1986
- Gear Shift Type
- 4H
- Vehicle Model
- STOUT
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-12020
Cylinder Sub-Assy, Cooler Compressor
[03.1979 - 08.1981] RK110..GEN |
88304-12020 |
— | ||
|
88304
|
88304
88304-35030
Cylinder Sub-Assy, Cooler Compressor
[08.1981 - 09.1986] RK110..GEN |
88304-35030 |
— | ||
|
88316
|
88316
88316-12060
Crankshaft, Cooler Compressor
[03.1979 - 08.1981] RK110..GEN |
88316-12060 |
— | ||
|
88316
|
88316
88316-35010
Crankshaft, Cooler Compressor
[08.1981 - 09.1986] RK110..GEN |
88316-35010 |
— | ||
|
88316A
|
88316A
90099-10123
Bearing, Compressor Crankshaft, Front
[03.1979 - 09.1986] RK110..GEN |
90099-10123 |
— | ||
|
88316C
|
88316C
90099-13011
Key, Compressor Crankshaft
[03.1979 - 08.1981] RK110..GEN |
90099-13011 |
— | ||
|
88316C
|
88316C
90099-13019
Key, Compressor Crankshaft
[08.1981 - 09.1986] RK110..GEN |
90099-13019 |
— | ||
|
88320
|
88320
88320-35020
Compressor Assy, Cooler
[03.1979 - 08.1981] RK110..GEN |
88320-35020 |
— | ||
|
88320
|
88320
88320-35021
Compressor Assy, Cooler
[08.1981 - 09.1986] RK110..GEN |
88320-35021 |
— | ||
|
88320A
|
88320A
90099-04923
Bolt, Through
[03.1979 - 08.1981] RK110..GEN |
90099-04923 |
— | ||
| replacement | |||||
|
88320A
|
88320A
90099-04970
Bolt, Through
[03.1979 - 08.1981] RK110..GEN |
90099-04970 |
— | ||
|
88320A
|
88320A
90099-04970
Bolt, Through
[08.1981 - 09.1986] RK110..GEN |
90099-04970 |
— | ||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[03.1979 - 09.1986] RK110..GEN |
90099-04924 |
— | ||
|
88321
|
88321
88321-12030
Head, Cooler Compressor Cylinder
[03.1979 - 08.1981] RK110..GEN FR |
88321-12030 |
— | ||
| replacement | |||||
|
88321
|
88321
88321-12031
Head, Cooler Compressor Cylinder
[03.1979 - 08.1981] RK110..GEN FR |
88321-12031 |
— | ||
|
88321
|
88321
88321-35010
Head, Cooler Compressor Cylinder
[08.1981 - 09.1986] RK110..GEN FR |
88321-35010 |
— | ||
|
88321
|
88321
88322-12010
Head, Cooler Compressor Cylinder
[03.1979 - 08.1981] RK110..GEN RR |
88322-12010 |
— | ||
|
88321
|
88321
88322-35010
Head, Cooler Compressor Cylinder
[08.1981 - 09.1986] RK110..GEN RR |
88322-35010 |
— | ||
|
88321A
|
88321A
88305-12040
Plate Sub-Assy, Valve
[03.1979 - 08.1981] RK110..GEN FR |
88305-12040 |
— | ||
|
88321A
|
88321A
88305-35010
Plate Sub-Assy, Valve
[08.1981 - 09.1986] RK110..GEN FR |
88305-35010 |
— | ||
|
88321A
|
88321A
88306-12010
Plate Sub-Assy, Valve
[03.1979 - 08.1981] RK110..GEN RR |
88306-12010 |
— | ||
|
88321A
|
88321A
88306-35010
Plate Sub-Assy, Valve
[08.1981 - 09.1986] RK110..GEN RR |
88306-35010 |
— | ||
|
88321B
|
88321B
88307-12030
Reed Sub-Assy, Valve
[03.1979 - 08.1981] RK110..GEN LARGE |
88307-12030 |
— | ||
|
88321B
|
88321B
88307-12040
Reed Sub-Assy, Valve
[03.1979 - 08.1981] RK110..GEN SMALL |
88307-12040 |
— | ||
|
88321B
|
88321B
88307-35010
Reed Sub-Assy, Valve
[08.1981 - 09.1986] RK110..GEN LARGE |
88307-35010 |
— | ||
|
88321B
|
88321B
88307-35020
Reed Sub-Assy, Valve
[08.1981 - 09.1986] RK110..GEN SMALL |
88307-35020 |
— | ||
|
88321C
|
88321C
88343-12010
Reed, Suction Valve
[03.1979 - 08.1981] RK110..GEN |
88343-12010 |
— | ||
|
88321C
|
88321C
88343-35010
Reed, Suction Valve
[08.1981 - 09.1986] RK110..GEN |
88343-35010 |
— | ||
|
88322
|
88322
88371-12150
Valve, Cooler Compressor Suction Service
[03.1979 - 09.1986] RK110..GEN |
88371-12150 |
— | ||
|
88325A
|
88325A
90099-08058
Pin, Cylinder Block
[03.1979 - 02.2000] RK110,YK110..GEN |
90099-08058 |
— | ||
|
88329
|
88329
88301-12040
Piston Sub-Assy, Cooler Compressor
[03.1979 - 09.1986] RK110..GEN |
88301-12040 |
— | ||
|
88329A
|
88329A
88317-12010
Ring, Compressor Piston Snap
[03.1979 - 09.1986] RK110..GEN |
88317-12010 |
— | ||
|
88329B
|
88329B
90099-12010
Ball, Speed Control
[03.1979 - 09.1986] RK110..GEN |
90099-12010 |
— | ||
|
88329C
|
88329C
88313-12060
Shoe, Piston
[03.1979 - 09.1986] RK110..GEN |
88313-12060 |
— | ||
|
88332
|
88332
88372-35010
Valve, Cooler Compressor Discharge Service
[03.1979 - 08.1981] RK110..GEN |
88372-35010 |
— | ||
|
88332
|
88332
88372-35040
Valve, Cooler Compressor Discharge Service
[08.1981 - 09.1986] RK110..GEN |
88372-35040 |
— | ||
|
88335
|
88335
04881-35010
Gasket Kit, Cooler Compressor Overhaul
[03.1979 - 08.1981] RK110..GEN |
04881-35010 |
— | ||
|
88335
|
88335
04881-35020
Gasket Kit, Cooler Compressor Overhaul
[08.1981 - 09.1986] RK110..GEN |
04881-35020 |
— | ||
|
88360
|
88360
88360-12070
Seal Assy, Cooler Compressor Shaft
[03.1979 - 08.1981] RK110..GEN |
88360-12070 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-10010
Seal Assy, Cooler Compressor Shaft
[03.1979 - 08.1981] RK110..GEN |
88360-10010 |
— | ||
|
88360
|
88360
88360-12071
Seal Assy, Cooler Compressor Shaft
[08.1981 - 09.1986] RK110..GEN |
88360-12071 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-10010
Seal Assy, Cooler Compressor Shaft
[08.1981 - 09.1986] RK110..GEN |
88360-10010 |
— | ||
|
88364
|
88364
90099-10123
Bearing, Compressor Crankshaft, Front
[03.1979 - 09.1986] RK110..GEN |
90099-10123 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[03.1979 - 02.2000] RK110,YK110..GEN |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[03.1979 - 02.2000] RK110,YK110..GEN |
88374-20020 |
US $5.12 |
||
|
88375
|
88375
88375-30260
Cap, Cooler Compressor Service Valve
[03.1979 - 09.1986] RK110..GEN |
88375-30260 |
— | ||
| replacement | |||||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[03.1979 - 09.1986] RK110..GEN |
88375-30270 |
— | ||
