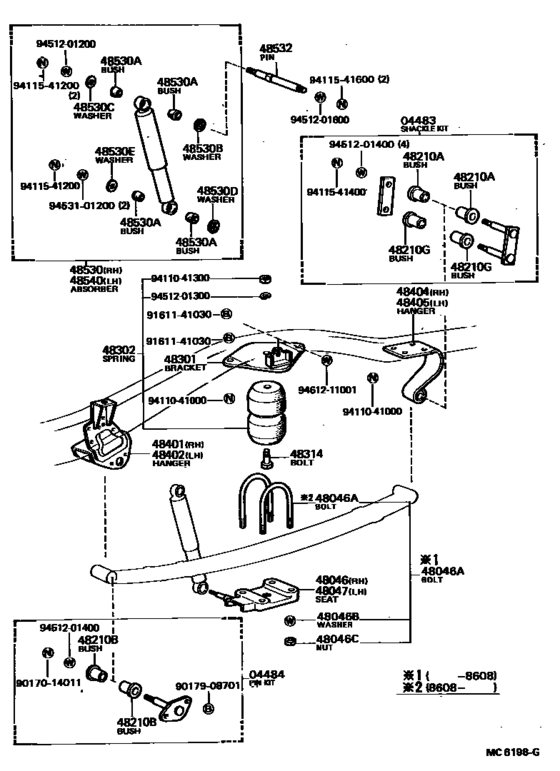

Rear Spring & Shock Absorber ([03.1979 - 03.1997] (7903-9703)) Diagram Toyota STOUT
- Year
- 1979 - 1986
- Sales region
- General
- Frame
- RK110
- body
- TW
- ENGINE
- 5R
- DESTINATION
- GEN
- From
- 03.1979
- To
- 09.1986
- Gear Shift Type
- 4H
- Vehicle Model
- STOUT
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-35020
Shackle Kit, Rear Spring
[03.1979 - 12.1980] RK110 |
04483-35020 |
— | ||
| replacement | |||||
|
04483
|
04483
04483-35030
Shackle Kit, Rear Spring
[03.1979 - 12.1980] RK110 |
04483-35030 |
— | ||
|
04483
|
04483
04483-35030
Shackle Kit, Rear Spring
[12.1980 - 04.1988] RK110 |
04483-35030 |
— | ||
|
04484
|
04484
04484-35020
Pin Kit, Front Spring
[03.1979 - 12.1980] RK110 |
04484-35020 |
— | ||
| replacement | |||||
|
04484
|
04484
04484-35040
Pin Kit, Rear Spring
[03.1979 - 12.1980] RK110 |
04484-35040 |
— | ||
|
04484
|
04484
04484-35040
Pin Kit, Rear Spring
[12.1980 - 04.1988] RK110 |
04484-35040 |
— | ||
|
48046
|
48046
48046-35060 Seat Sub-Assy, Spring U Bolt, RhSPRING U BOLT, RH [03.1979 - 04.1988] RK110..TW;RK110..15T |
48046-35060 |
US $43.97 |
||
|
48046A
|
48046A
90117-14012 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [03.1979 - 09.1986] RK110..TW;RK110..15T |
90117-14012 |
US $22.13 |
||
| replacement | |||||
|
48046A
|
48046A
90117-14004 Bolt, U(For Rear Spring)[03.1979 - 09.1986] RK110..TW;RK110..15T |
90117-14004 |
US $15.52 |
||
|
48046B
|
48046B
94512-01400 Washer(For Rear Spring U Bolt)[03.1979 - 09.1986] RK110..TW;RK110..15T |
94512-01400 |
US $1.60 |
||
|
48046C
|
48046C
94115-51400 Nut, Lock[03.1979 - 09.1986] RK110..TW;RK110..15T |
94115-51400 |
US $3.20 |
||
|
48047
|
48047
48047-35060 Seat Sub-Assy, Spring U Bolt, LhSPRING U BOLT, LH [03.1979 - 04.1988] RK110..TW;RK110..15T |
48047-35060 |
US $48.34 |
||
|
48210A
|
48210A
90385-18025 Bush(For Front Spring Shackle)[03.1979 - 04.1988] RK110 |
90385-18025 |
US $5.28 |
||
|
48210B
|
48210B
90385-18025 Bush(For Front Spring Shackle)[03.1979 - 04.1988] RK110 |
90385-18025 |
US $5.28 |
||
|
48210G
|
48210G
90385-18025 Bush(For Front Spring Shackle)[03.1979 - 04.1988] RK110 |
90385-18025 |
US $5.28 |
||
|
48301
|
48301
48301-35010 Bracket Sub-Assy, Hollow SpringHOLLOW SPRING [03.1979 - 09.1986] RK110 |
48301-35010 |
US $103.38 |
||
| replacement | |||||
|
48301
|
48301
48301-35020 Bracket Sub-Assy, Hollow SpringHOLLOW SPRING [03.1979 - 09.1986] RK110 |
48301-35020 |
US $106.29 |
||
|
48302
|
48302
48302-39035 Spring Sub-Assy, HollowHOLLOW [03.1979 - 04.1988] RK110..TW;RK110..15T |
48302-39035 |
US $47.17 |
||
|
48314
|
48314
48314-35010 Bolt, Hollow Spring SetHOLLOW SPRING SET [03.1979 - 04.1988] RK110 |
48314-35010 |
US $9.17 |
||
|
48401
|
48401
48404-35020
Bracket Sub-Assy, Rear Spring, Front Rh
[03.1979 - 04.1988] RK110..TW |
48404-35020 |
— | ||
|
48402
|
48402
48404-35020
Bracket Sub-Assy, Rear Spring, Front Rh
[03.1979 - 04.1988] RK110..TW |
48404-35020 |
— | ||
|
48404
|
48404
48405-35010 Bracket Sub-Assy, Rear Spring, Rear RhREAR SPRING, REAR RH [03.1979 - 04.1988] RK110 |
48405-35010 |
US $90.27 |
||
|
48405
|
48405
48406-35010 Bracket Sub-Assy, Rear Spring, Rear LhREAR SPRING, REAR LH [03.1979 - 04.1988] RK110 |
48406-35010 |
US $115.02 |
||
|
48530
|
48530
48531-39365 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [03.1979 - 04.1988] RK110 |
48531-39365 |
US $97.55 |
||
| replacement | |||||
|
48530
|
48530
48531-39366 Absorber Assy, Shock, Rear Rh[03.1979 - 04.1988] RK110 |
48531-39366 |
US $63.73 |
||
|
48530A
|
48530A
90385-16007 Cushion, Front Shock Absorber[03.1979 - 04.1988] RK110 |
90385-16007 |
from US $1.91 |
||
|
48530B
|
48530B
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1979 - 04.1988] RK110 |
90948-03004 |
from US $1.42 |
||
|
48530C
|
48530C
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1979 - 04.1988] RK110 |
90948-03003 |
from US $1.31 |
||
|
48530D
|
48530D
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1979 - 04.1988] RK110 |
90948-03004 |
from US $1.42 |
||
|
48530E
|
48530E
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1979 - 04.1988] RK110 |
90948-03003 |
from US $1.31 |
||
|
48532
|
48532
48532-35030 Pin, Rear Shock Absorber PivotREAR SHOCK ABSORBER PIVOT [03.1979 - 04.1988] RK110 |
48532-35030 |
US $16.02 |
||
|
48540
|
48540
48531-39365 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [03.1979 - 04.1988] RK110 |
48531-39365 |
US $97.55 |
||
| replacement | |||||
|
48540
|
48540
48531-39366 Absorber Assy, Shock, Rear Rh[03.1979 - 04.1988] RK110 |
48531-39366 |
US $63.73 |
||
|
9017014011
|
9017014011
90170-14011
New Genuine Part
|
90170-14011 |
— | ||
|
9017908701
|
9017908701
90179-08701
New Genuine Part
|
90179-08701 |
— | ||
|
9161141030
|
9161141030
91611-41030 Bolt (for Transmission Control Cable Bracket) |
91611-41030 |
US $2.33 |
||
| replacement | |||||
|
9161141030
|
9161141030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411041300
|
9411041300
94110-41300 NUT |
94110-41300 |
from US $2.72 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $2.62 |
||
|
9411541600
|
9411541600
94115-41600
Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
|
94115-41600 |
— | ||
| replacement | |||||
|
9411541600
|
9411541600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $1.92 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9451201300
|
9451201300
94512-01300 Washer(For Rear Spring U Bolt) |
94512-01300 |
from US $0.68 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.60 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.80 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
