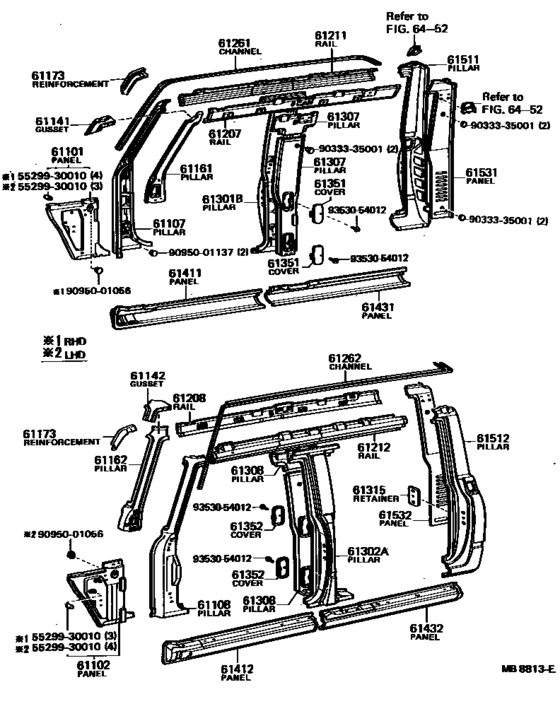

Side Member ([03.1979 - ] (7903- )TW) Diagram Toyota STOUT
- Year
- 1979 - 1986
- Sales region
- General
- Frame
- RK110
- body
- TW
- ENGINE
- 5R
- DESTINATION
- GEN
- From
- 03.1979
- To
- 09.1986
- Gear Shift Type
- 4H
- Vehicle Model
- STOUT
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61101
|
61101
61101-95110
Panel Sub-Assy, Cowl Side, Rh
[03.1979 - 09.1986] RK110..RHD |
61101-95110 |
— | ||
|
61102
|
61102
61102-95110 Panel Sub-Assy, Cowl Side, LhCOWL SIDE, LH [03.1979 - 04.1988] RK110..RHD |
61102-95110 |
US $77.17 |
||
|
61107
|
61107
61027-95110
Pillar Sub-Assy, Front Body Outer, Rh
[03.1979 - 11.1980] RK110 |
61027-95110 |
— | ||
|
61107
|
61107
61027-95116 Pillar Sub-Assy, Front Body Outer, RhFRONT BODY OUTER, RH [08.1981 - 04.1988] RK110..TW |
61027-95116 |
US $340.70 |
||
| replacement | |||||
|
61107
|
61107
61027-95114 Pillar Sub-Assy, Front Body Outer, RhFRONT BODY OUTER, RH [08.1981 - 04.1988] RK110..TW |
61027-95114 |
US $337.79 |
||
|
61108
|
61108
61028-95110
Pillar Sub-Assy, Front Body Outer, Lh
[03.1979 - 11.1980] RK110 |
61028-95110 |
— | ||
|
61108
|
61108
61028-95116 Pillar Sub-Assy, Front Body Outer, LhFRONT BODY OUTER, LH [08.1981 - 04.1988] RK110..TW |
61028-95116 |
US $340.70 |
||
| replacement | |||||
|
61108
|
61108
61028-95114 Pillar Sub-Assy, Front Body Outer, LhFRONT BODY OUTER, LH [08.1981 - 04.1988] RK110..TW |
61028-95114 |
US $337.79 |
||
|
61141
|
61141
61143-95110 Gusset, Front Pillar Upper Corner, RhFRONT PILLAR UPPER CORNER, RH [03.1979 - 11.1980] RK110 |
61143-95110 |
US $21.84 |
||
|
61142
|
61142
61144-95110 Gusset, Front Pillar Upper Corner, LhFRONT PILLAR UPPER CORNER, LH [03.1979 - 11.1980] RK110 |
61144-95110 |
US $21.84 |
||
|
61161
|
61161
61161-89105 Pillar, Front Body, Upper Inner Rh[03.1979 - 04.1988] RK110 |
61161-89105 |
US $59.84 |
||
|
61162
|
61162
61162-89105 Pillar, Front Body, Upper Inner Lh[03.1979 - 04.1988] RK110 |
61162-89105 |
US $59.84 |
||
|
61173
|
61173
61173-89101 Reinforcement, Front Body Pillar, Upper Inner[03.1979 - 04.1988] RK110 RH |
61173-89101 |
US $8.88 |
||
|
61173
|
61173
61174-89101 Reinforcement, Front Body Pillar, Upper Inner[03.1979 - 04.1988] RK110 LH |
61174-89101 |
US $8.88 |
||
|
61207
|
61207
61231-89108 Rail Sub-Assy, Roof Side, Inner Center Rh[03.1979 - 04.1988] RK110..TW |
61231-89108 |
US $44.99 |
||
|
61208
|
61208
61232-89108 Rail Sub-Assy, Roof Side, Inner Center Lh[03.1979 - 04.1988] RK110..TW |
61232-89108 |
US $44.99 |
||
|
61211
|
61211
61211-89104 Rail, Roof Side, Outer Rh[03.1979 - 04.1988] RK110..TW |
61211-89104 |
US $75.71 |
||
|
61212
|
61212
61212-89104 Rail, Roof Side, Outer Lh[03.1979 - 04.1988] RK110..TW |
61212-89104 |
US $75.71 |
||
|
61261
|
61261
61261-89104
Channel, Roof Drip, Rh
[03.1979 - 04.1988] RK110..TW |
61261-89104 |
— | ||
|
61262
|
61262
61262-89104
Channel, Roof Drip, Lh
[03.1979 - 04.1988] RK110..TW |
61262-89104 |
— | ||
|
61301B
|
61301B
61301-89101
Pillar, Center Body, Outer Rh
[03.1979 - 08.1981] RK110..TW |
61301-89101 |
— | ||
| replacements | |||||
|
61301B
|
61301B
61301-89102 Pillar, Center Body, Outer Rh[03.1979 - 08.1981] RK110..TW |
61301-89102 |
US $477.57 |
||
|
61301B
|
61301B
94611-11001 Plate, Rear Seat Back Stopper[03.1979 - 08.1981] RK110..TW |
94611-11001 |
US $1.28 |
||
|
61301B
|
61301B
84231-28010 Switch Assy, Courtesy Lamp[03.1979 - 08.1981] RK110..TW |
84231-28010 |
from US $16.26 |
||
|
61301B
|
61301B
61301-89102 Pillar, Center Body, Outer Rh[08.1981 - 04.1988] RK110..TW |
61301-89102 |
US $477.57 |
||
|
61302A
|
61302A
61302-89101
Pillar, Center Body, Outer Lh
[03.1979 - 08.1981] RK110..TW |
61302-89101 |
— | ||
| replacements | |||||
|
61302A
|
61302A
84231-28010 Switch Assy, Courtesy Lamp[03.1979 - 08.1981] RK110..TW |
84231-28010 |
from US $16.26 |
||
|
61302A
|
61302A
61302-89102 Pillar, Center Body, Outer Lh[03.1979 - 08.1981] RK110..TW |
61302-89102 |
US $477.57 |
||
|
61302A
|
61302A
94611-11001 Plate, Rear Seat Back Stopper[03.1979 - 08.1981] RK110..TW |
94611-11001 |
US $1.28 |
||
|
61302A
|
61302A
61302-89102 Pillar, Center Body, Outer Lh[08.1981 - 04.1988] RK110..TW |
61302-89102 |
US $477.57 |
||
|
61307
|
61307
61341-89101 Pillar Sub-Assy, Center Body, Inner Rh[03.1979 - 04.1988] RK110..TW UPR |
61341-89101 |
US $31.60 |
||
|
61307
|
61307
61343-89101 Pillar Sub-Assy, Center Body, Inner Rh[03.1979 - 04.1988] RK110..TW LWR |
61343-89101 |
US $163.07 |
||
|
61308
|
61308
61342-89101 Pillar Sub-Assy, Center Body, Inner Lh[03.1979 - 04.1988] RK110..TW UPR |
61342-89101 |
US $31.60 |
||
|
61308
|
61308
61344-89101 Pillar Sub-Assy, Center Body, Inner Lh[03.1979 - 04.1988] RK110..TW LWR |
61344-89101 |
US $163.07 |
||
|
61315
|
61315
61309-89101 Retainer, Door Lock Striker Plate[03.1979 - 04.1988] RK110 |
61309-89101 |
US $8.88 |
||
|
61351
|
61351
62429-89101 Cover, Center Body, Inner Rh[03.1979 - 04.1988] RK110..TW |
62429-89101 |
US $9.17 |
||
|
61352
|
61352
62429-89101 Cover, Center Body, Inner Rh[03.1979 - 04.1988] RK110..TW |
62429-89101 |
US $9.17 |
||
|
61411
|
61411
61411-89104
Panel, Rocker, Outer Rh
[03.1979 - 04.1988] RK110 |
61411-89104 |
— | ||
|
61412
|
61412
61412-89104
Panel, Rocker, Outer Lh
[03.1979 - 04.1988] RK110 |
61412-89104 |
— | ||
|
61431
|
61431
61431-89101 Panel, Rocker, Outer Rear Rh[03.1979 - 04.1988] RK110..TW |
61431-89101 |
US $107.74 |
||
|
61432
|
61432
61432-89101 Panel, Rocker, Outer Rear Lh[03.1979 - 04.1988] RK110..TW |
61432-89101 |
US $107.74 |
||
|
61511
|
61511
61511-89106 Pillar, Quarter Lock, Rh[03.1979 - 08.1986] RK110..TW |
61511-89106 |
US $110.66 |
||
| replacement | |||||
|
61511
|
61511
61511-89122 Pillar, Quarter Lock, Rh[03.1979 - 08.1986] RK110..TW |
61511-89122 |
US $107.74 |
||
|
61511
|
61511
61511-89122 Pillar, Quarter Lock, Rh[08.1986 - 04.1988] RK110..TW |
61511-89122 |
US $107.74 |
||
|
61512
|
61512
61512-89110 Pillar, Quarter Lock, Lh[03.1979 - 08.1986] RK110..TW |
61512-89110 |
US $110.66 |
||
| replacement | |||||
|
61512
|
61512
61512-89131 Pillar, Quarter Lock, Lh[03.1979 - 08.1986] RK110..TW |
61512-89131 |
US $107.74 |
||
|
61512
|
61512
61512-89131 Pillar, Quarter Lock, Lh[08.1986 - 04.1988] RK110..TW |
61512-89131 |
US $107.74 |
||
|
61531
|
61531
61531-89107
Panel, Back Corner, Inner Rh
[03.1979 - 08.1986] RK110..TW |
61531-89107 |
— | ||
| replacement | |||||
|
61531
|
61531
61531-89119 Panel, Back Corner, Inner Rh[03.1979 - 08.1986] RK110..TW |
61531-89119 |
US $110.66 |
||
|
61531
|
61531
61531-89119 Panel, Back Corner, Inner Rh[08.1986 - 04.1988] RK110..TW |
61531-89119 |
US $110.66 |
||
|
61532
|
61532
61531-89119 Panel, Back Corner, Inner Rh[08.1986 - 09.1986] RK110..TW |
61531-89119 |
US $110.66 |
||
|
61532
|
61532
61532-89107 Panel, Back Corner, Inner Lh[03.1979 - 08.1986] RK110..TW |
61532-89107 |
US $113.57 |
||
| replacement | |||||
|
61532
|
61532
61532-89119 Panel, Back Corner, Inner Lh[03.1979 - 08.1986] RK110..TW |
61532-89119 |
US $110.66 |
||
|
5529930010
|
5529930010
55299-30010 Cap, Tee Nut(For 6Mm) |
55299-30010 |
US $3.20 |
||
|
9033335001
|
9033335001
90333-35001 New Genuine Part |
90333-35001 |
US $1.76 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001137
|
9095001137
90950-01137 New Genuine Part |
90950-01137 |
US $3.20 |
||
|
9353054012
|
9353054012
93530-54012 New Genuine Part |
93530-54012 |
US $0.70 |
||
