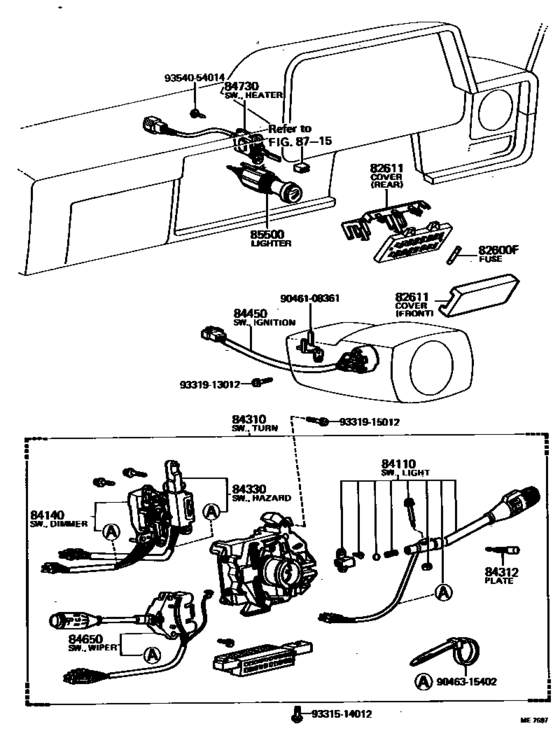

Switch & Relay & Computer ([03.1979 - 08.1981] (7903-8108)) Diagram Toyota STOUT
- Year
- 1979 - 1986
- Sales region
- General
- Frame
- RK110
- body
- T1
- ENGINE
- 5R
- DESTINATION
- GEN
- From
- 03.1979
- To
- 09.1986
- Gear Shift Type
- 4F
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- RHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[08.1981 - 04.1988] RK110 10A,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1981 - 04.1988] RK110 15A,15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1981 - 04.1988] RK110 20A,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1981 - 04.1988] RK110 7.5A,7.5A |
90982-09005 |
from US $0.99 |
||
|
82600F
|
82600F
99118-62005 Fuse, Fuse Block[03.1979 - 08.1981] RK110 5A |
99118-62005 |
US $0.79 |
||
|
82600F
|
82600F
99118-62910 Fuse, Fuse Block[03.1979 - 08.1981] RK110 10A |
99118-62910 |
US $1.60 |
||
|
82600F
|
82600F
99118-62915 Fuse, Fuse Block[03.1979 - 08.1981] RK110 15A,15A |
99118-62915 |
US $1.60 |
||
|
82611
|
82611
82611-89105
Cover, Fuse Block
[03.1979 - 08.1981] RK110 RR |
82611-89105 |
— | ||
|
82611
|
82611
82611-89106
Cover, Fuse Block
[03.1979 - 08.1981] RK110 FR |
82611-89106 |
— | ||
|
82611
|
82611
82611-89108
Cover, Fuse Block
[08.1981 - 09.1986] RK110 FR |
82611-89108 |
— | ||
|
82611
|
82611
82611-89109
Cover, Fuse Block
[08.1981 - 04.1988] RK110 RR |
82611-89109 |
— | ||
|
84110
|
84110
84112-19075 Switch Assy, Light Control, No.1[03.1979 - 08.1980] RK110..RHD |
84112-19075 |
US $78.62 |
||
| replacement | |||||
|
84110
|
84110
84112-19076
Switch Assy, Light Control, No.1
[03.1979 - 08.1980] RK110..RHD |
84112-19076 |
— | ||
|
84110
|
84110
84112-19076
Switch Assy, Light Control, No.1
[08.1980 - 08.1981] RK110..RHD |
84112-19076 |
— | ||
|
84110
|
84110
84112-39135 Switch Assy, Light Control, No.1[08.1981 - 04.1988] RK110..RHD |
84112-39135 |
US $69.89 |
||
| replacement | |||||
|
84110
|
84110
84112-19245
Switch Assy, Light Control, No.1
[08.1981 - 04.1988] RK110..RHD |
84112-19245 |
— | ||
|
84140
|
84140
84140-19015 Switch Assy, Headlamp Dimmer[03.1979 - 08.1981] RK110..RHD |
84140-19015 |
US $74.26 |
||
|
84140
|
84140
84140-39055 Switch Assy, Headlamp Dimmer[08.1981 - 04.1988] RK110..RHD |
84140-39055 |
US $65.96 |
||
| replacement | |||||
|
84140
|
84140
84140-69065
Switch Assy, Headlamp Dimmer
[08.1981 - 04.1988] RK110..RHD |
84140-69065 |
— | ||
|
84310
|
84310
84310-10210 Switch Assy, Turn Signal[03.1979 - 08.1980] RK110..RHD |
84310-10210 |
US $240.24 |
||
| replacement | |||||
|
84310
|
84310
84310-10211
Switch Assy, Turn Signal
[03.1979 - 08.1980] RK110..RHD |
84310-10211 |
— | ||
|
84310
|
84310
84310-10211
Switch Assy, Turn Signal
[08.1980 - 08.1981] RK110..RHD |
84310-10211 |
— | ||
|
84310
|
84310
84310-35120 Switch Assy, Turn Signal[08.1981 - 04.1988] RK110..RHD |
84310-35120 |
US $243.15 |
||
|
84312
|
84312
84312-20011 Plate, Horn Contact[03.1979 - 04.1988] RK110 |
84312-20011 |
from US $5.09 |
||
|
84330
|
84330
84332-19015
Switch Assy, Hazard Warning Signal
[03.1979 - 08.1981] RK110..RHD |
84332-19015 |
— | ||
|
84330
|
84330
84332-39115 Switch Assy, Hazard Warning Signal[08.1981 - 04.1988] RK110..RHD |
84332-39115 |
US $61.01 |
||
| replacement | |||||
|
84330
|
84330
84332-29195 Switch Assy, Hazard Warning Signal[08.1981 - 04.1988] RK110..RHD |
84332-29195 |
US $60.13 |
||
|
84450
|
84450
84450-14021
Switch Assy, Ignition Or Starter
[03.1979 - 04.1988] RK110 |
84450-14021 |
— | ||
|
84650
|
84650
84652-19135 Switch Assy, Windshield Wiper[03.1979 - 08.1980] RK110..RHD |
84652-19135 |
US $112.11 |
||
| replacement | |||||
|
84650
|
84650
84652-19136 Switch Assy, Windshield Wiper[03.1979 - 08.1980] RK110..RHD |
84652-19136 |
US $112.11 |
||
|
84650
|
84650
84652-19136 Switch Assy, Windshield Wiper[08.1980 - 08.1981] RK110..RHD |
84652-19136 |
US $112.11 |
||
|
84650
|
84650
84652-39165 Switch Assy, Windshield Wiper[08.1981 - 04.1988] RK110..RHD |
84652-39165 |
US $106.29 |
||
| replacement | |||||
|
84650
|
84650
84652-19325 Switch Assy, Windshield Wiper[08.1981 - 04.1988] RK110..RHD |
84652-19325 |
US $101.92 |
||
|
84730
|
84730
84732-89104
Switch Assy, Heater Blower
[03.1979 - 08.1981] RK110..RHD |
84732-89104 |
— | ||
|
84730
|
84730
84732-89106
Switch Assy, Heater Blower
[08.1981 - 04.1988] RK110 |
84732-89106 |
— | ||
|
84730
|
84730
84732-89107
Switch Assy, Heater Blower
[08.1981 - 04.1988] RK110..GEN W/COOLER |
84732-89107 |
— | ||
|
85500
|
85500
85500-20042 Lighter Assy, Cigarette[03.1979 - 08.1980] RK110 |
85500-20042 |
from US $61.26 |
||
|
85500
|
85500
85500-30340
Lighter Assy, Cigarette (12V)
[08.1980 - 04.1988] RK110 |
85500-30340 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-16060 Lighter Assy, Cigarette[08.1980 - 04.1988] RK110 |
85500-16060 |
from US $37.30 |
||
|
9046108361
|
9046108361
90461-08361 New Genuine Part |
90461-08361 |
US $3.93 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331913012
|
9331913012
93319-13012 New Genuine Part |
93319-13012 |
US $1.75 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.05 |
||
