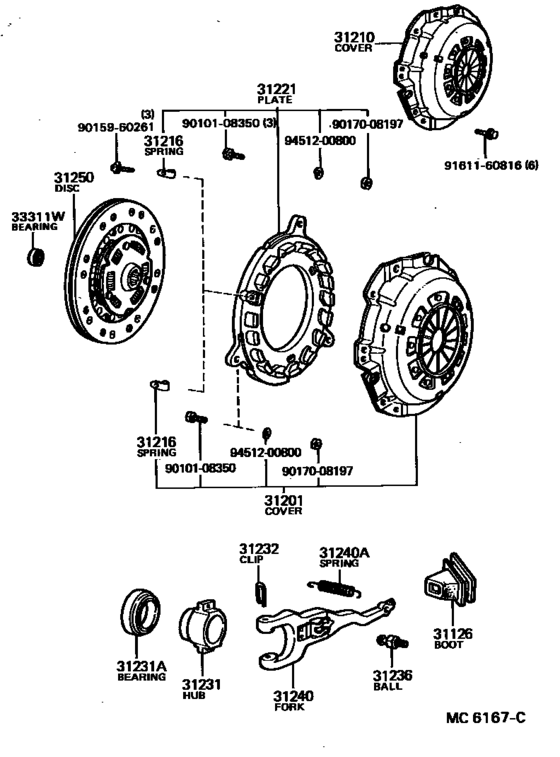

Clutch & Release Fork ([03.1979 - 04.1986] (7903-8604)) Diagram Toyota STOUT
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- RK111
- body
- T1
- ENGINE
- 5R
- From
- 01.1982
- To
- 03.1986
- Vehicle Model
- STOUT
- Loading Capacity
- 20T
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-25021
Boot, Clutch Release Fork
[03.1979 - 03.1986] RK11# |
31126-25021 |
— | ||
|
31201
|
31201
31201-29085
Cover Sub-Assy, Clutch
[01.1981 - 03.1986] RK11# |
31201-29085 |
— | ||
| replacement | |||||
|
31201
|
31201
31201-26010
Cover Sub-Assy, Clutch
[01.1981 - 03.1986] RK11# |
31201-26010 |
— | ||
|
31210
|
31210
31210-36029 Cover Assy, Clutch[01.1981 - 03.1986] RK11# |
31210-36029 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-30221 Cover Assy, Clutch[01.1981 - 03.1986] RK11# |
31210-30221 |
US $199.47 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[03.1979 - 03.1986] RK11# |
31216-30010 |
— | ||
|
31221
|
31221
31221-39056 Spring, Clutch Retracting[03.1979 - 03.1986] RK11# |
31221-39056 |
US $80.08 |
||
| replacement | |||||
|
31221
|
31221
31221-36025
Spring, Clutch Retracting
[03.1979 - 03.1986] RK11# |
31221-36025 |
— | ||
|
31231
|
31231
31231-30080
Hub, Clutch Release Bearing
[09.1980 - 03.1986] RK11# |
31231-30080 |
— | ||
|
31231A
|
31231A
90363-40019
Bearing, Ball(For Clutch Release Hub)
[09.1980 - 11.1982] RK11# |
90363-40019 |
— | ||
| replacement | |||||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[09.1980 - 11.1982] RK11# |
90363-40022 |
from US $41.80 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[11.1982 - 03.1986] RK111 |
90363-40022 |
from US $41.80 |
||
|
31232
|
31232
31232-30020 Clip Or Spring, Release Bearing Hub[09.1980 - 03.1986] RK11# |
31232-30020 |
US $3.06 |
||
|
31236
|
31236
31236-25010 Ball, Release Fork[03.1979 - 03.1986] RK11# |
31236-25010 |
US $10.77 |
||
|
31240
|
31240
31204-25020 Fork Assy, Clutch ReleaseCLUTCH RELEASE [09.1980 - 03.1986] RK11# |
31204-25020 |
US $29.27 |
||
|
31240A
|
31240A
90506-14041 Spring, Tension(For Clutch Release Fork Return)TENSION(FOR CLUTCH RELEASE FORK RETURN) [11.1981 - 03.1986] RK11# |
90506-14041 |
US $3.79 |
||
|
31250
|
31250
31250-22101
Disc Assy, Clutch
[05.1981 - 03.1986] RK11# |
31250-22101 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [05.1981 - 03.1986] RK11# |
31250-35410 |
from US $253.34 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[06.1980 - 03.1986] RK11# |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[06.1980 - 03.1986] RK11# |
90363-12024 |
from US $5.91 |
||
|
9010108350
|
9010108350
90101-08350
Bolt, Clutch Pressure Plate
|
90101-08350 |
— | ||
| replacement | |||||
|
9010108350
|
9010108350
90101-08022
Bolt, Clutch Pressure Plate
|
90101-08022 |
— | ||
|
9015960261
|
9015960261
90159-60261 New Genuine Part |
90159-60261 |
US $1.46 |
||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
