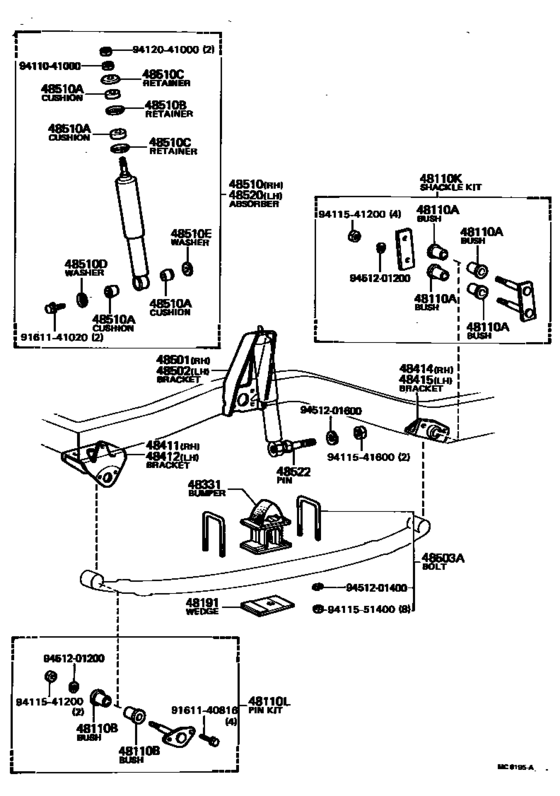

Front Spring & Shock Absorber ([03.1979 - ] (7903- )) Diagram Toyota STOUT
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- RK111
- body
- T1
- ENGINE
- 5R
- From
- 01.1982
- To
- 03.1986
- Vehicle Model
- STOUT
- Loading Capacity
- 20T
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48110A
|
48110A
90385-15016 Bush(For Front Spring Shackle)[03.1979 - 03.1986] RK11# LWR |
90385-15016 |
US $4.32 |
||
|
48110A
|
48110A
90385-15017 Bush(For Front Spring Shackle)[03.1979 - 03.1986] RK11# UPR |
90385-15017 |
US $3.64 |
||
|
48110B
|
48110B
90385-15016 Bush(For Front Spring Shackle)[03.1979 - 03.1986] RK11# |
90385-15016 |
US $4.32 |
||
|
48110K
|
48110K
04481-35031
Shackle Kit, Front Spring
[03.1979 - 03.1986] RK11# |
04481-35031 |
— | ||
|
48110L
|
48110L
04482-60010 Pin Kit, Front SpringFRONT SPRING [03.1979 - 03.1986] RK11# |
04482-60010 |
US $26.60 |
||
|
48191
|
48191
48191-35040 Wedge, Caster(For Front Leaf Spring)CASTER(FOR FRONT LEAF SPRING) [03.1979 - 03.1986] RK11# |
48191-35040 |
US $18.78 |
||
|
48331
|
48331
48331-35010
Bumper, Front Spring, No.1
[03.1979 - 03.1986] RK11# |
48331-35010 |
— | ||
|
48411
|
48411
48411-35030 Bracket, Front Spring(For Front Rh)FRONT SPRING(FOR FRONT RH) [03.1979 - 03.1986] RK11# |
48411-35030 |
US $25.77 |
||
|
48412
|
48412
48412-35010 Bracket, Front Spring(For Front Lh)FRONT SPRING(FOR FRONT LH) [03.1979 - 03.1986] RK11# |
48412-35010 |
US $24.46 |
||
|
48414
|
48414
48403-35020 Bracket, Front Spring(For Rear Rh)FRONT SPRING(FOR REAR RH) [03.1979 - 03.1986] RK11# |
48403-35020 |
US $47.61 |
||
|
48415
|
48415
48403-35020 Bracket, Front Spring(For Rear Rh)FRONT SPRING(FOR REAR RH) [03.1979 - 03.1986] RK11# |
48403-35020 |
US $47.61 |
||
|
48501
|
48501
48501-35010 Bracket Sub-Assy, Front Shock Absorber, Upper RhFRONT SHOCK ABSORBER, UPPER RH [03.1979 - 03.1986] RK11# |
48501-35010 |
US $40.77 |
||
|
48502
|
48502
48502-35010 Bracket Sub-Assy, Front Shock Absorber, Upper LhFRONT SHOCK ABSORBER, UPPER LH [03.1979 - 03.1986] RK11# |
48502-35010 |
US $48.78 |
||
|
48503A
|
48503A
90118-14170 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [03.1979 - 03.1986] RK11# L=75,RR SIDE |
90118-14170 |
US $22.71 |
||
| replacement | |||||
|
48503A
|
48503A
90117-14013 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [03.1979 - 03.1986] RK11# L=75,RR SIDE |
90117-14013 |
US $16.89 |
||
|
48503A
|
48503A
90118-14176 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [03.1979 - 03.1986] RK11# L=90,FR SIDE |
90118-14176 |
US $22.57 |
||
| replacement | |||||
|
48503A
|
48503A
90117-14047 Bolt, U(For Front Shock Absorber Bracket)[03.1979 - 03.1986] RK11# L=90,FR SIDE |
90117-14047 |
US $18.05 |
||
|
48510
|
48510
48511-39255 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [03.1979 - 03.1986] RK11# |
48511-39255 |
US $91.73 |
||
| replacement | |||||
|
48510
|
48510
48511-39256 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [03.1979 - 03.1986] RK11# |
48511-39256 |
US $91.73 |
||
|
48510A
|
48510A
90385-16007 Cushion, Front Shock Absorber[03.1979 - 03.1986] RK11# ABSORBER X I BEAM |
90385-16007 |
from US $2.05 |
||
|
48510A
|
48510A
90948-01003 Rubber Cushion[03.1979 - 03.1986] RK11# ABSORBER X UPR BRACKET |
90948-01003 |
from US $1.85 |
||
|
48510B
|
48510B
90948-02007 Retainer, Steering Damper Cushion[03.1979 - 03.1986] RK11# |
90948-02007 |
US $2.72 |
||
|
48510C
|
48510C
90948-02002 Retainer, Steering Damper Cushion[03.1979 - 03.1986] RK11# |
90948-02002 |
from US $1.29 |
||
|
48510D
|
48510D
90948-03012 Washer, Front Shock Absorber Cushion, No.1[03.1979 - 03.1986] RK11# |
90948-03012 |
US $1.60 |
||
|
48510E
|
48510E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1979 - 03.1986] RK11# |
90948-03004 |
from US $1.42 |
||
|
48520
|
48520
48511-39255 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [03.1979 - 03.1986] RK11# |
48511-39255 |
US $91.73 |
||
| replacement | |||||
|
48520
|
48520
48511-39256 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [03.1979 - 03.1986] RK11# |
48511-39256 |
US $91.73 |
||
|
48522
|
48522
48522-25010 Pin, Front Shock Absorber Lower Pivot[03.1979 - 03.1986] RK11# |
48522-25010 |
US $9.03 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9411541600
|
9411541600
94115-41600
Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
|
94115-41600 |
— | ||
| replacement | |||||
|
9411541600
|
9411541600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $1.92 |
||
|
9411551400
|
9411551400
94115-51400 Nut, Lock |
94115-51400 |
US $3.20 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.60 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
