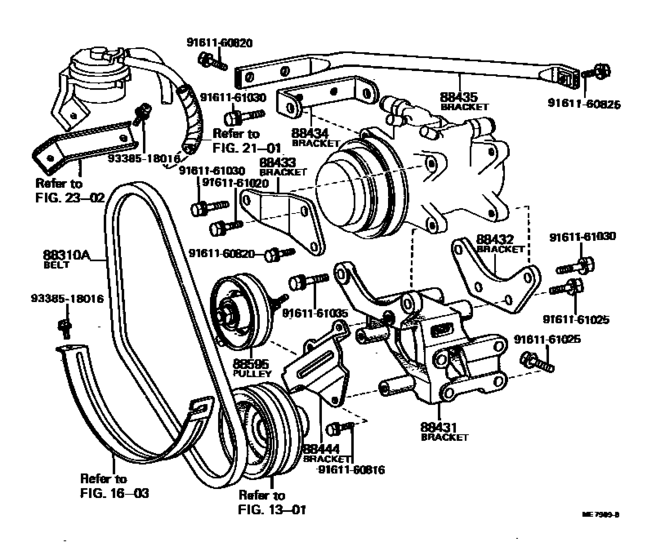

Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )) Diagram Toyota STOUT
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- RK111
- body
- T1
- ENGINE
- 5R
- From
- 01.1982
- To
- 03.1986
- Vehicle Model
- STOUT
- Loading Capacity
- 20T
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310A
|
88310A
99322-01050
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[03.1979 - 03.1986] RK11# 長さ＝１０５０ |
99322-01050 |
— | ||
|
88431
|
88431
88431-25030
Bracket, Compressor Mounting, No.1
[03.1979 - 03.1986] RK11# |
88431-25030 |
— | ||
|
88432
|
88432
88437-25020
Bracket, Compressor Mounting, No.2
[03.1979 - 03.1986] RK11# |
88437-25020 |
— | ||
|
88433
|
88433
88433-25020
Bracket, Compressor Mounting, No.2
[03.1979 - 03.1986] RK11# |
88433-25020 |
— | ||
|
88434
|
88434
88437-25010
Bracket, Compressor Mounting, No.4
[03.1979 - 03.1986] RK11# |
88437-25010 |
— | ||
|
88435
|
88435
88433-25010
Bracket, Compressor Mounting, No.5
[03.1979 - 03.1986] RK11# |
88433-25010 |
— | ||
|
88444
|
88444
88444-25010
Bracket, Idle Pulley
[03.1979 - 03.1986] RK11# |
88444-25010 |
— | ||
|
88595
|
88595
88440-30250 Pulley Assy, Idle[03.1979 - 03.1986] RK11# |
88440-30250 |
US $78.62 |
||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[03.1979 - 03.1986] RK11# |
88440-28050 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
