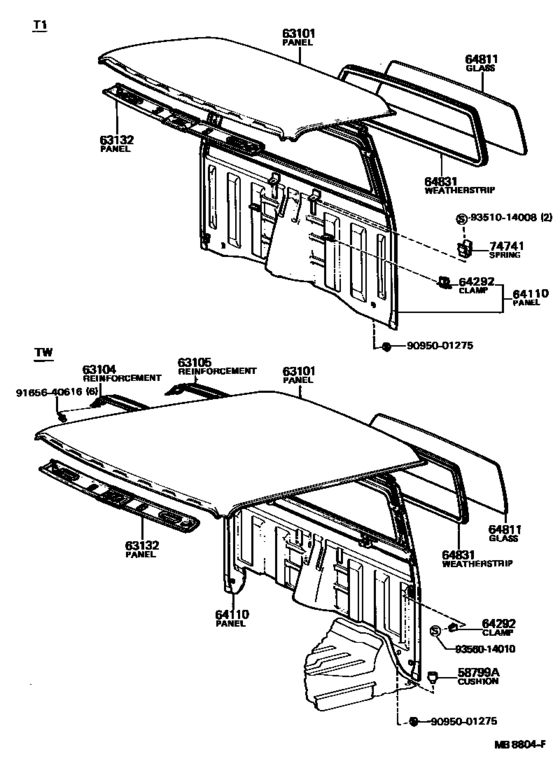

Roof Panel & Back Panel ([03.1979 - ] (7903- )) Diagram Toyota STOUT
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- RK111
- body
- T1
- ENGINE
- 5R
- From
- 01.1982
- To
- 03.1986
- Vehicle Model
- STOUT
- Loading Capacity
- 20T
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63101
|
63101
63111-89105
Panel Sub-Assy, Roof
[03.1979 - 03.1986] RK11#..T1 |
63111-89105 |
— | ||
|
63132
|
63132
63102-89101
Panel, Windshield Header, Inner
[03.1979 - 03.1986] RK11# |
63102-89101 |
— | ||
|
64110
|
64110
64101-95114
Panel Assy, Front Body Back
[03.1979 - 03.1986] RK11#..T1 |
64101-95114 |
— | ||
|
64292
|
64292
58706-89101
Clamp, Jack Handle
[03.1979 - 03.1986] RK11#..T1 |
58706-89101 |
— | ||
|
64811
|
64811
64811-89107
Glass, Back Window
[03.1979 - 03.1986] RK11# *TEM,T=4.0 |
64811-89107 |
— | ||
|
64831
|
64831
64812-89101
Weatherstrip, Back Window Glass
[03.1979 - 03.1986] RK11# |
64812-89101 |
— | ||
| replacement | |||||
|
64831
|
64831
64812-89101-83
Weatherstrip, Back Window Glass
[03.1979 - 03.1986] RK11# |
64812-89101-83 |
— | ||
|
74741
|
74741
74741-95112
Spring, Starting Handle Support
[06.1979 - 03.1986] RK11#..20T |
74741-95112 |
— | ||
|
9095001275
|
9095001275
90950-01275
Plug, Hole(For Rocker Inner Panel)
|
90950-01275 |
— | ||
| replacement | |||||
|
9095001275
|
9095001275
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9351014008
|
9351014008
93510-14008 New Genuine Part |
93510-14008 |
US $2.18 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
