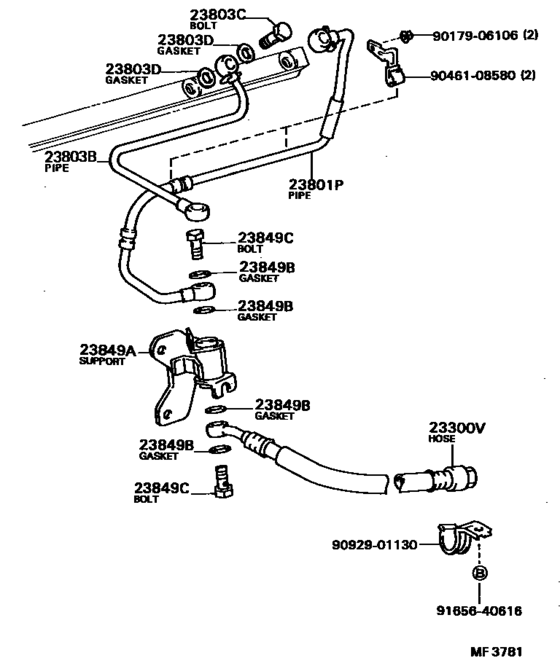

Fuel Injection System ([02.1986 - 01.1987] (8602-8701)1GGEU ; (8602- )1GGTEU) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300V
|
23300V
90923-01341 Hose, Fuel(For Fuel Inlet)[02.1986 - 08.1988] 1GEU..GA70; 1GG#..GA70 |
90923-01341 |
US $132.50 |
||
|
23801P
|
23801P
23801-88303 Pipe Sub-Assy, Fuel, No.1[02.1986 - 08.1988] 1GGEU..GA70 |
23801-88303 |
US $75.71 |
||
|
23803B
|
23803B
23803-88300 Pipe Sub-Assy, Fuel, No.3[02.1986 - 01.1987] 1GGEU..GA70 |
23803-88300 |
US $30.14 |
||
|
23803B
|
23803B
23803-88301 Pipe Sub-Assy, Fuel, No.3[01.1987 - 08.1988] 1GGEU..GA70 |
23803-88301 |
US $43.24 |
||
|
23803C
|
23803C
90401-08003 Bolt, Union[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90401-08003 |
US $2.24 |
||
|
23803D
|
23803D
90430-08005 Gasket[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90430-08005 |
US $2.24 |
||
|
23849A
|
23849A
23849-88340 Support, Fuel Pipe[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
23849-88340 |
US $34.94 |
||
|
23849B
|
23849B
90430-12005 Gasket(For Water Hole)[02.1986 - 08.1988] 1GEU,1GG#..GA70; 7MGTEU..MA70 |
90430-12005 |
from US $0.76 |
||
|
23849C
|
23849C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[02.1986 - 08.1988] 1GEU,1GG#..GA70; 7MGTEU..MA70 |
90401-12097 |
from US $3.08 |
||
|
9017906106
|
9017906106
90179-06106 NUT |
90179-06106 |
US $1.92 |
||
|
9046108580
|
9046108580
90461-08580 New Genuine Part |
90461-08580 |
US $6.99 |
||
|
9092901130
|
9092901130
90929-01130
New Genuine Part
|
90929-01130 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
