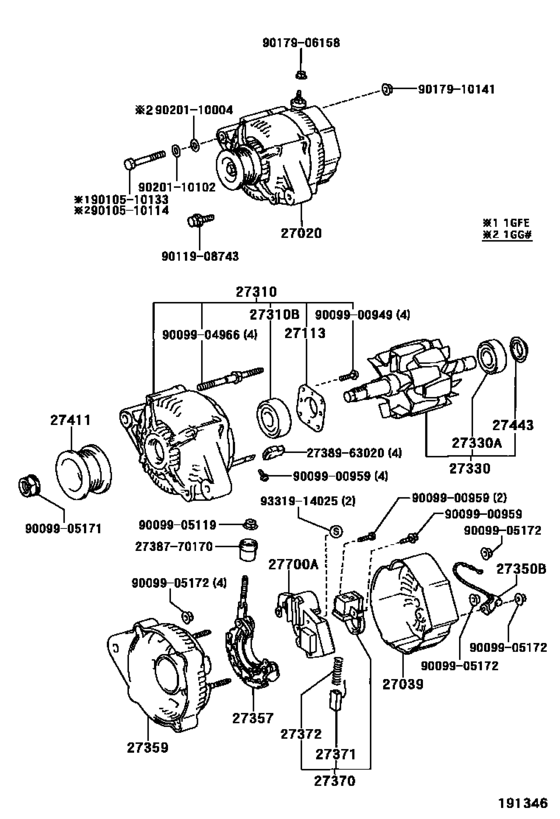

Alternator ([08.1988 - ] 12V 70A (8808- )1GFE,1GG#..5F) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-70270 Alternator Assy[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F １２Ｖ ７０Ａ |
27060-70270 |
US $1,557.92 |
||
|
27039
|
27039
27039-15170
Cover, Alternator Rear End
[09.1991 - 05.1993] 1GG#..GA70..5F |
27039-15170 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[09.1991 - 05.1993] 1GG#..GA70..5F |
27039-15171 |
— | ||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[08.1988 - 09.1991] 1GFE,1GG#..GA70..5F |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[08.1988 - 09.1991] 1GFE,1GG#..GA70..5F |
27039-15171 |
— | ||
|
27113
|
27113
27312-70200
Plate, Bearing Retainer, Alternator
[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
27312-70200 |
— | ||
|
27310
|
27310
27310-70100
Frame Assy, Drive End, Alternator
[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
27310-70100 |
— | ||
|
27310B
|
27310B
90099-10178 Bearing(For Alternator Drive End Frame)[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
90099-10178 |
from US $17.65 |
||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1988 - 05.1993] 1GFE,1GG#,7MGTEU..GA70,MA70 |
90099-10140 |
from US $9.43 |
||
|
27350B
|
27350B
90099-52100 Condenser, Alternator[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
90099-52100 |
US $10.19 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-70260
Frame, Alternator Rectifier End
[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
27359-70260 |
— | ||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[07.1992 - 05.1993] 1GG#..GA70..5F |
27370-35060 |
from US $19.34 |
||
|
27370
|
27370
27370-63021
Holder Assy, Alternator Brush
[08.1988 - 02.1991] 1GFE,1GG#..GA70..5F |
27370-63021 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[08.1988 - 02.1991] 1GFE,1GG#..GA70..5F |
27370-35060 |
from US $19.34 |
||
|
27370
|
27370
27370-70300
Holder Assy, Alternator Brush
[02.1991 - 07.1992] 1GG#..GA70..5F |
27370-70300 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[02.1991 - 07.1992] 1GG#..GA70..5F |
27370-35060 |
from US $19.34 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[08.1988 - 05.1991] 1GFE,1GG#..GA70..5F |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1988 - 05.1991] 1GFE,1GG#..GA70..5F |
27371-70300 |
from US $2.97 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[05.1991 - 05.1993] 1GG#..GA70..5F |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
27372-87501 |
— | ||
|
27411
|
27411
27411-70200
Pulley, Alternator
[08.1988 - 05.1993] 1GFE,1GG#..GA70..5F |
27411-70200 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE,7MGTEU..GA70,JZA70,MA70 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-16010
Regulator Assy, Generator
[01.1990 - 09.1991] 1GFE,1GG#,7MGTEU..GA70,MA70 |
27700-16010 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-66020 Regulator Assy, Generator[01.1990 - 09.1991] 1GFE,1GG#,7MGTEU..GA70,MA70 |
27700-66020 |
US $263.54 |
||
|
27700A
|
27700A
27700-63021 Regulator Assy, Generator[08.1988 - 12.1988] 1GFE,1GG#..GA70..5F |
27700-63021 |
US $285.38 |
||
| replacement | |||||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[08.1988 - 12.1988] 1GFE,1GG#..GA70..5F |
27700-70030 |
US $263.54 |
||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[12.1988 - 01.1990] 1GFE,1GG#..GA70..5F |
27700-70030 |
US $263.54 |
||
|
27700A
|
27700A
27700-76020 Regulator Assy, Generator[09.1991 - 05.1993] 1GG#..GA70..5F |
27700-76020 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-66020 Regulator Assy, Generator[09.1991 - 05.1993] 1GG#..GA70..5F |
27700-66020 |
US $263.54 |
||
|
2738770170
|
2738770170
27387-70170
Insulator, Terminal
|
27387-70170 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900949
|
9009900949
90099-00949
New Genuine Part
|
90099-00949 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010510114
|
9010510114
90105-10114 Bolt(For Alternator) |
90105-10114 |
US $3.36 |
||
|
9010510133
|
9010510133
90105-10133 Bolt(For Alternator) |
90105-10133 |
US $5.53 |
||
|
9011908743
|
9011908743
90119-08743 New Genuine Part |
90119-08743 |
US $1.44 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9020110004
|
9020110004
90201-10004
Washer, Seal(For Air Cleaner)
|
90201-10004 |
— | ||
|
9020110102
|
9020110102
90201-10102 New Genuine Part |
90201-10102 |
US $0.70 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
