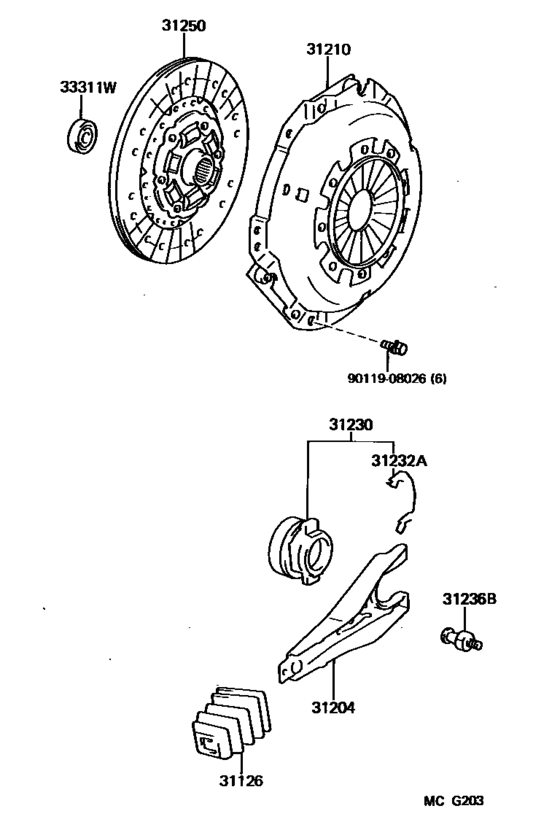

Clutch & Release Fork ([08.1988 - ] (8808- )GA70..5F) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[08.1988 - 05.1993] GA70..5F..(G,GT) |
31126-20070 |
from US $13.81 |
||
|
31204
|
31204
31204-35050 Fork Sub-Assy, Clutch Release[08.1988 - 05.1993] GA70..5F..(G,GT) |
31204-35050 |
from US $16.93 |
||
|
31210
|
31210
31210-22100 Cover Assy, Clutch[08.1988 - 05.1993] GA70..5F..(G,GT) |
31210-22100 |
US $174.72 |
||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[08.1988 - 05.1993] GA70..5F..(G,GT) |
31210-22101 |
from US $155.47 |
||
|
31230
|
31230
31230-35090
Bearing Assy, Clutch Release
[08.1988 - 05.1993] GA70..5F..(G,GT) |
31230-35090 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-35091 Bearing Assy, Clutch Release[08.1988 - 05.1993] GA70..5F..(G,GT) |
31230-35091 |
from US $50.16 |
||
|
31232A
|
31232A
31232-35020 Clip Or Spring, Release Bearing Hub[08.1988 - 11.1989] GA70..5F..(G,GT) |
31232-35020 |
from US $2.62 |
||
|
31232A
|
31232A
31232-35040 Clip Or Spring, Release Bearing Hub[11.1989 - 05.1993] GA70..5F..(G,GT) ＫＯＹＯ |
31232-35040 |
US $3.32 |
||
|
31236B
|
31236B
31236-30060 Ball, Release Fork[08.1988 - 05.1993] GA70..5F..(G,GT) |
31236-30060 |
from US $10.24 |
||
|
31250
|
31250
31250-14171 Disc Assy, Clutch[08.1988 - 05.1993] GA70..5F..(G,GT) |
31250-14171 |
US $206.75 |
||
| replacement | |||||
|
31250
|
31250
31250-35374 Disc Assy, Clutch[08.1988 - 05.1993] GA70..5F..(G,GT) |
31250-35374 |
from US $118.23 |
||
|
33311W
|
33311W
90363-12003 Bearing, Radial Ball(For Crankshaft)[08.1988 - 05.1993] GA70..5F |
90363-12003 |
from US $10.56 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
