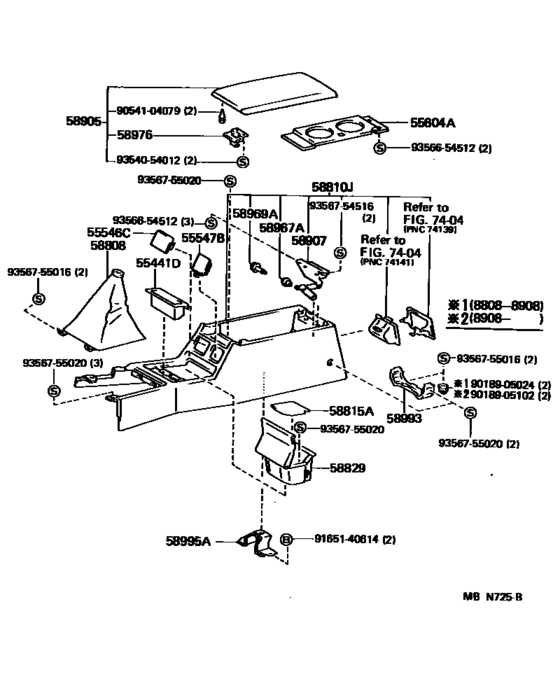

Console Box & Bracket ([08.1988 - ] (8808- )) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55441D
|
55441D
55441-14100-02
Box, Instrument Panel Coin
[08.1988 - 08.1989] GA70 MAROON,TRIM3# |
55441-14100-02 |
— | ||
| replacement | |||||
|
55441D
|
55441D
55441-14101-03
Box, Instrument Panel Coin
[08.1988 - 08.1989] GA70 MAROON,TRIM3# |
55441-14101-03 |
— | ||
|
55441D
|
55441D
55441-14100-03
Box, Instrument Panel Coin
[08.1988 - 08.1989] GA70;MA70..GTTL MEDIUM GRAY,TRIM1# |
55441-14100-03 |
— | ||
| replacement | |||||
|
55441D
|
55441D
55441-14101-03
Box, Instrument Panel Coin
[08.1988 - 08.1989] GA70;MA70..GTTL MEDIUM GRAY,TRIM1# |
55441-14101-03 |
— | ||
|
55441D
|
55441D
55441-14100-04
Box, Instrument Panel Coin
[08.1988 - 08.1989] GA70 DEEP BLUE,TRIM8# |
55441-14100-04 |
— | ||
| replacement | |||||
|
55441D
|
55441D
55441-14101-03
Box, Instrument Panel Coin
[08.1988 - 08.1989] GA70 DEEP BLUE,TRIM8# |
55441-14101-03 |
— | ||
|
55441D
|
55441D
55441-14101-02 Box, Instrument Panel Coin[08.1990 - 05.1993] GA70,JZA70..GT,GTT DEEP RED,TRIM3# |
55441-14101-02 |
US $15 |
||
| replacement | |||||
|
55441D
|
55441D
55441-14101-03
Box, Instrument Panel Coin
[08.1990 - 05.1993] GA70,JZA70..GT,GTT DEEP RED,TRIM3# |
55441-14101-03 |
— | ||
|
55441D
|
55441D
55441-14101-03
Box, Instrument Panel Coin
[08.1990 - 05.1993] GA70,JZA70..GT,GTT,GTTR SHADOW GRAY,TRIM1# |
55441-14101-03 |
— | ||
|
55547B
|
55547B
55547-20020-03 Cover, Remote Control Mirror Hole[08.1990 - 05.1993] GA70,JZA70 SHADOW GRAY,TRIM1# |
55547-20020-03 |
US $11.79 |
||
|
55547B
|
55547B
55547-20020-04 Cover, Remote Control Mirror Hole[08.1988 - 08.1990] GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
55547-20020-04 |
US $11.79 |
||
| replacement | |||||
|
55547B
|
55547B
55547-20020-14 Cover, Remote Control Mirror Hole[08.1988 - 08.1990] GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
55547-20020-14 |
US $11.79 |
||
|
55547B
|
55547B
55547-20020-12 Cover, Remote Control Mirror Hole[08.1988 - 08.1990] GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
55547-20020-12 |
US $11.79 |
||
|
55547B
|
55547B
55547-20020-13 Cover, Remote Control Mirror Hole[08.1988 - 08.1990] GA70,MA70 MEDIUM GRAY,TRIM1# |
55547-20020-13 |
US $11.79 |
||
| replacement | |||||
|
55547B
|
55547B
55547-20020-B0 Cover, Remote Control Mirror Hole[08.1988 - 08.1990] GA70,MA70 MEDIUM GRAY,TRIM1# |
55547-20020-B0 |
US $11.65 |
||
|
55547B
|
55547B
55547-20020-42 Cover, Remote Control Mirror Hole[08.1990 - 05.1993] GA70,JZA70..GT,GTL,GTT DEEP RED,TRIM3# |
55547-20020-42 |
US $11.79 |
||
|
55604A
|
55604A
55604-14010
Holder Sub-Assy, Instrument Panel Cup
[08.1988 - 05.1993] GA70,JZA70,MA70 |
55604-14010 |
— | ||
|
58808
|
58808
58808-14140-01
Cover Sub-Assy, Shifting Hole
[08.1988 - 08.1989] MA70..5F BLACK,BRACK,TRIM1#,3#,8#; GA70..5F BLACK,BRACK,TRIM1#,3#,8# |
58808-14140-01 |
— | ||
|
58810J
|
58810J
58810-14390-02 Box Assy, Console[08.1988 - 08.1990] GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
58810-14390-02 |
US $374.19 |
||
|
58810J
|
58810J
58810-14390-03 Box Assy, Console[08.1988 - 08.1990] GA70,MA70 MEDIUM GRAY,TRIM1# |
58810-14390-03 |
US $374.19 |
||
|
58810J
|
58810J
58810-14390-04 Box Assy, Console[08.1988 - 08.1990] GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
58810-14390-04 |
US $374.19 |
||
|
58810J
|
58810J
58810-14390-12 Box Assy, Console[08.1990 - 05.1993] GA70,JZA70..GT,GTL,GTT DEEP RED,TRIM3# |
58810-14390-12 |
US $374.19 |
||
|
58810J
|
58810J
58810-14390-13 Box Assy, Console[08.1990 - 05.1993] GA70,JZA70 SHADOW GRAY,TRIM1# |
58810-14390-13 |
US $374.19 |
||
|
58810J
|
58810J
58810-14420-02 Box Assy, Console[08.1991 - 05.1993] GA70..NOB;JZA70..GTL,GTT ｱﾘ(*80),DEEP RED,TRIM3# |
58810-14420-02 |
US $346.53 |
||
|
58810J
|
58810J
58810-14420-03 Box Assy, Console[08.1991 - 05.1993] JZA70;GA70..NOB ｱﾘ(*80),SHADOW GRAY,TRIM1# |
58810-14420-03 |
US $346.53 |
||
|
58815A
|
58815A
58815-14030
Carpet, Console Box
[08.1988 - 05.1993] GA70,JZA70,MA70 |
58815-14030 |
— | ||
|
58829
|
58829
58806-14010-02 Pocket, Console Box[08.1988 - 12.1988] GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
58806-14010-02 |
US $45.86 |
||
| replacement | |||||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[08.1988 - 12.1988] GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
58806-14030-13 |
— | ||
|
58829
|
58829
58806-14010-03 Pocket, Console Box[08.1988 - 12.1988] GA70,MA70 MEDIUM GRAY,TRIM1# |
58806-14010-03 |
US $45.86 |
||
| replacements | |||||
|
58829
|
58829
58815-14040
Carpet, Console Box
[08.1988 - 12.1988] GA70,MA70 MEDIUM GRAY,TRIM1# |
58815-14040 |
— | ||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[08.1988 - 12.1988] GA70,MA70 MEDIUM GRAY,TRIM1# |
58806-14030-13 |
— | ||
|
58829
|
58829
58806-14010-04
Pocket, Console Box
[08.1988 - 12.1988] GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
58806-14010-04 |
— | ||
| replacement | |||||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[08.1988 - 12.1988] GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
58806-14030-13 |
— | ||
|
58829
|
58829
58806-14011-02 Pocket, Console Box[12.1988 - 08.1990] GA70,MA70 MAROON,TRIM3# |
58806-14011-02 |
US $45.72 |
||
| replacement | |||||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[12.1988 - 08.1990] GA70,MA70 MAROON,TRIM3# |
58806-14030-13 |
— | ||
|
58829
|
58829
58806-14011-03
Pocket, Console Box
[12.1988 - 08.1990] GA70,MA70 MEDIUM GRAY,TRIM1# |
58806-14011-03 |
— | ||
| replacements | |||||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[12.1988 - 08.1990] GA70,MA70 MEDIUM GRAY,TRIM1# |
58806-14030-13 |
— | ||
|
58829
|
58829
58815-14040
Carpet, Console Box
[12.1988 - 08.1990] GA70,MA70 MEDIUM GRAY,TRIM1# |
58815-14040 |
— | ||
|
58829
|
58829
58806-14011-04 Pocket, Console Box[12.1988 - 08.1990] GA70,MA70 DEEP BLUE,TRIM8# |
58806-14011-04 |
US $45.72 |
||
| replacement | |||||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[12.1988 - 08.1990] GA70,MA70 DEEP BLUE,TRIM8# |
58806-14030-13 |
— | ||
|
58829
|
58829
58806-14011-12 Pocket, Console Box[08.1990 - 05.1993] GA70,JZA70..GT,GTL,GTT DEEP RED,TRIM3# |
58806-14011-12 |
US $45.72 |
||
| replacement | |||||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[08.1990 - 05.1993] GA70,JZA70..GT,GTL,GTT DEEP RED,TRIM3# |
58806-14030-13 |
— | ||
|
58829
|
58829
58806-14011-13
Pocket, Console Box
[08.1990 - 05.1993] GA70,JZA70 SHADOW GRAY,TRIM1# |
58806-14011-13 |
— | ||
| replacements | |||||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[08.1990 - 05.1993] GA70,JZA70 SHADOW GRAY,TRIM1# |
58806-14030-13 |
— | ||
|
58829
|
58829
58815-14040
Carpet, Console Box
[08.1990 - 05.1993] GA70,JZA70 SHADOW GRAY,TRIM1# |
58815-14040 |
— | ||
|
58829
|
58829
58806-14040-02 Pocket, Console Box[08.1991 - 05.1993] GA70..NOB;JZA70..GTL,GTT ｱﾘ(*80),DEEP RED,TRIM3# |
58806-14040-02 |
US $39.89 |
||
|
58829
|
58829
58806-14040-03 Pocket, Console Box[08.1991 - 05.1993] JZA70;GA70..NOB ｱﾘ(*80),SHADOW GRAY,TRIM1# |
58806-14040-03 |
US $39.89 |
||
| replacement | |||||
|
58829
|
58829
58806-14030-13
Pocket, Console Box
[08.1991 - 05.1993] JZA70;GA70..NOB ｱﾘ(*80),SHADOW GRAY,TRIM1# |
58806-14030-13 |
— | ||
|
58905
|
58905
58905-14060-02 Door Sub-Assy, Console Compartment[08.1988 - 12.1988] GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
58905-14060-02 |
US $225.68 |
||
| replacement | |||||
|
58905
|
58905
58905-14061-13
Door Sub-Assy, Console Compartment
[08.1988 - 12.1988] GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
58905-14061-13 |
— | ||
|
58905
|
58905
58905-14060-03
Door Sub-Assy, Console Compartment
[08.1988 - 12.1988] GA70,MA70 MEDIUM GRAY,TRIM1# |
58905-14060-03 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-14061-13
Door Sub-Assy, Console Compartment
[08.1988 - 12.1988] GA70,MA70 MEDIUM GRAY,TRIM1# |
58905-14061-13 |
— | ||
|
58905
|
58905
58905-14060-04 Door Sub-Assy, Console Compartment[08.1988 - 12.1988] GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
58905-14060-04 |
US $225.68 |
||
| replacement | |||||
|
58905
|
58905
58905-14061-13
Door Sub-Assy, Console Compartment
[08.1988 - 12.1988] GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
58905-14061-13 |
— | ||
|
58905
|
58905
58905-14061-02 Door Sub-Assy, Console Compartment[12.1988 - 08.1990] GA70,MA70 MAROON,TRIM3# |
58905-14061-02 |
US $224.22 |
||
| replacement | |||||
|
58905
|
58905
58905-14061-13
Door Sub-Assy, Console Compartment
[12.1988 - 08.1990] GA70,MA70 MAROON,TRIM3# |
58905-14061-13 |
— | ||
|
58905
|
58905
58905-14061-03
Door Sub-Assy, Console Compartment
[12.1988 - 08.1990] GA70,MA70 MEDIUM GRAY,TRIM1# |
58905-14061-03 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-14061-13
Door Sub-Assy, Console Compartment
[12.1988 - 08.1990] GA70,MA70 MEDIUM GRAY,TRIM1# |
58905-14061-13 |
— | ||
|
58905
|
58905
58905-14061-04 Door Sub-Assy, Console Compartment[12.1988 - 08.1990] GA70,MA70 DEEP BLUE,TRIM8# |
58905-14061-04 |
US $224.22 |
||
| replacement | |||||
|
58905
|
58905
58905-14061-13
Door Sub-Assy, Console Compartment
[12.1988 - 08.1990] GA70,MA70 DEEP BLUE,TRIM8# |
58905-14061-13 |
— | ||
|
58905
|
58905
58905-14061-12
Door Sub-Assy, Console Compartment
[08.1990 - 05.1993] GA70,JZA70..GT,GTL,GTT DEEP RED,TRIM3# |
58905-14061-12 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-14061-13
Door Sub-Assy, Console Compartment
[08.1990 - 05.1993] GA70,JZA70..GT,GTL,GTT DEEP RED,TRIM3# |
58905-14061-13 |
— | ||
|
58905
|
58905
58905-14061-13
Door Sub-Assy, Console Compartment
[08.1990 - 05.1993] GA70,JZA70 SHADOW GRAY,TRIM1# |
58905-14061-13 |
— | ||
|
58907
|
58907
58907-14030
Hinge Sub-Assy, Console Compartment Door
[08.1988 - 05.1993] GA70,JZA70,MA70 |
58907-14030 |
— | ||
|
58967A
|
58967A
58967-14030
Spring, Console Door Stopper
[08.1988 - 05.1993] GA70,JZA70,MA70 |
58967-14030 |
— | ||
|
58969A
|
58969A
58969-14010
Retainer, Console Compartment Door Stopper
[08.1988 - 05.1993] GA70,JZA70,MA70 |
58969-14010 |
— | ||
|
58976
|
58976
58976-22020 Lock Sub-Assy, Console Compartment Door[08.1988 - 05.1993] GA70,JZA70,MA70 |
58976-22020 |
from US $12.07 |
||
|
58993
|
58993
58993-14010
Bracket, Console Box Mounting, Rear
[08.1988 - 05.1993] GA70,JZA70,MA70 |
58993-14010 |
— | ||
|
58995A
|
58995A
58995-14010 Bracket, Console Box Mounting, No.1[08.1991 - 05.1993] JZA70;GA70..NOB |
58995-14010 |
US $11.07 |
||
|
9018905024
|
9018905024
90189-05024 NUT |
90189-05024 |
US $2.08 |
||
|
9018905102
|
9018905102
90189-05102 New Genuine Part |
90189-05102 |
US $1.89 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.22 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9356654512
|
9356654512
93566-54512
SCREW
|
93566-54512 |
— | ||
| replacement | |||||
|
9356654512
|
9356654512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9356754516
|
9356754516
93567-54516
SCREW TAPPING
|
93567-54516 |
— | ||
| replacement | |||||
|
9356754516
|
9356754516
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.76 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.12 |
||
