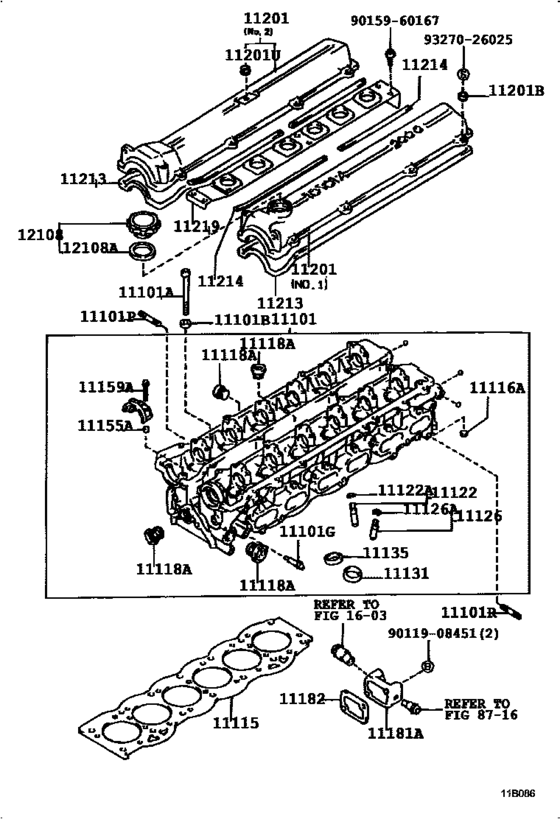

Cylinder Head ([08.1988 - ] (8808- )1GGEU) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-70023 Head Sub-Assy, Cylinder[08.1988 - 08.1989] 1GGEU..GA70 *53 |
11101-70023 |
US $2,416.96 |
||
| replacement | |||||
|
11101
|
11101
11101-70025 Head Sub-Assy, Cylinder[08.1988 - 08.1989] 1GGEU..GA70 *53 |
11101-70025 |
US $2,373.28 |
||
|
11101
|
11101
11101-70024 Head Sub-Assy, Cylinder[08.1989 - 03.1990] 1GGEU..GA70 *53 |
11101-70024 |
US $2,431.52 |
||
| replacement | |||||
|
11101
|
11101
11101-70025 Head Sub-Assy, Cylinder[08.1989 - 03.1990] 1GGEU..GA70 *53 |
11101-70025 |
US $2,373.28 |
||
|
11101
|
11101
11101-70025 Head Sub-Assy, Cylinder[03.1990 - 05.1993] 1GGEU..GA70 *53 |
11101-70025 |
US $2,373.28 |
||
|
11101
|
11101
11101-88301 Head Sub-Assy, Cylinder[08.1988 - 05.1990] 1GGEU..GA70 *54 |
11101-88301 |
US $2,533.44 |
||
| replacement | |||||
|
11101
|
11101
11101-88302 Head Sub-Assy, Cylinder[08.1988 - 05.1990] 1GGEU..GA70 *54 |
11101-88302 |
US $2,373.28 |
||
|
11101
|
11101
11101-88302 Head Sub-Assy, Cylinder[05.1990 - 05.1993] 1GGEU..GA70 *54 |
11101-88302 |
US $2,373.28 |
||
|
11101A
|
11101A
90110-10003 Bolt(For Cylinder Head Set)[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
90110-10003 |
from US $4.23 |
||
|
11101B
|
11101B
90201-10050 Washer, Plate(For Cylinder Head Set)[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
90201-10050 |
US $2.72 |
||
|
11101G
|
11101G
90072-40625
Union(For Cylinder Head)
[08.1988 - 05.1990] 1GGEU..GA70 *54 & (8808-8908)*53 |
90072-40625 |
— | ||
|
11101G
|
11101G
90406-08011 Union(For Cylinder Head)[08.1989 - 05.1993] 1GFE,1GGEU..GA70 *53 & (9005-9305)*54 |
90406-08011 |
from US $1.05 |
||
|
11101P
|
11101P
90116-08115 Bolt, Stud(For Distributor)[08.1988 - 05.1993] 1GG#..GA70 |
90116-08115 |
US $1.31 |
||
|
11101R
|
11101R
90116-06063 Bolt, Stud(For Fuel Pipe)[08.1988 - 05.1993] 1GGEU..GA70 *53 |
90116-06063 |
US $1.92 |
||
|
11101R
|
11101R
92132-60614 Bolt, Stud(For Fuel Pipe)[08.1988 - 05.1993] 1GGEU..GA70 *54 |
92132-60614 |
US $2.62 |
||
|
11115
|
11115
11115-88302 Gasket, Cylinder Head[08.1988 - 05.1993] 1GGEU..GA70 厚さ＝１．２５ |
11115-88302 |
US $99.16 |
||
|
11116A
|
11116A
96411-41800 Plug, Tight, No.1[08.1988 - 05.1993] 1GG#..GA70 |
96411-41800 |
from US $1.72 |
||
|
11118A
|
11118A
90341-27003 Plug, W/head Taper Screw, No.1[08.1988 - 05.1993] 1GG#..GA70 |
90341-27003 |
from US $7.16 |
||
|
11122
|
11122
11122-16020 Bush, Intake Valve Guide[08.1988 - 05.1993] 1GGEU..GA70 ＳＴＤ |
11122-16020 |
from US $12.46 |
||
|
11122
|
11122
11123-16020 Bush, Intake Valve Guide[08.1988 - 05.1993] 1GGEU..GA70 Ｏ／Ｓ ０．０５ |
11123-16020 |
US $11.18 |
||
|
11122A
|
11122A
90520-10004
Ring, Shaft Snap (For Valve Guide Bush)
[08.1988 - 07.1989] 1GG#..GA70; 7MGTEU..MA70 |
90520-10004 |
— | ||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[08.1988 - 05.1993] 1GGEU..GA70 ＳＴＤ; 7MGTEU..MA70 ＳＴＤ |
11122-16020 |
from US $12.46 |
||
|
11126
|
11126
11123-16020 Bush, Intake Valve Guide[08.1988 - 05.1993] 1GGEU..GA70 Ｏ／Ｓ ０．０５; 7MGTEU..MA70 Ｏ／Ｓ ０．０５ |
11123-16020 |
US $11.18 |
||
|
11126A
|
11126A
90520-10004
Ring, Shaft Snap (For Valve Guide Bush)
[08.1988 - 07.1989] 1GG#..GA70; 7MGTEU..MA70 |
90520-10004 |
— | ||
|
11131
|
11131
11131-70010 Seat, Intake Valve[08.1988 - 05.1993] 1GG#..GA70 ＳＴＤ |
11131-70010 |
US $15.87 |
||
|
11131
|
11131
11132-70010 Seat, Intake Valve[08.1988 - 05.1993] 1GG#..GA70 Ｏ／Ｓ ０．０３ |
11132-70010 |
US $16.89 |
||
|
11135
|
11135
11135-70021 Seat, Exhaust Valve[08.1988 - 05.1993] 1GFE,1GG#..GA70 ＳＴＤ |
11135-70021 |
US $18.05 |
||
|
11135
|
11135
11136-70021 Seat, Exhaust Valve[08.1988 - 05.1993] 1GFE,1GG#..GA70 Ｏ／Ｓ ０．０３ |
11136-70021 |
US $18.78 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[08.1988 - 05.1993] 1GG#..GA70 *54 |
90253-10004 |
US $1.92 |
||
|
11155A
|
11155A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[03.1990 - 05.1993] 1GFE,1GGEU..GA70 |
90253-10006 |
US $0.79 |
||
|
11159A
|
11159A
90119-07002 Bolt(For Head To Camshaft Bearing Cap)[08.1988 - 05.1993] 1GG#..GA70 *54 & (8808-9210)*53 |
90119-07002 |
US $3.20 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[10.1992 - 05.1993] 1GGEU..GA70 *53 |
90119-07009 |
from US $0.86 |
||
|
11181A
|
11181A
11181-88300 Cover, Cylinder Head, Rear[08.1988 - 05.1993] 1GG#..GA70 |
11181-88300 |
US $46.59 |
||
|
11182
|
11182
11182-88300
Gasket, Cylinder Head Rear Plate
[08.1988 - 05.1993] 1GG#..GA70 |
11182-88300 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-70030 Gasket, Cylinder Head Rear Plate[08.1988 - 05.1993] 1GG#..GA70 |
11182-70030 |
US $4.96 |
||
|
11201
|
11201
11201-70060 Cover Sub-Assy, Cylinder Head[08.1988 - 05.1993] 1GGEU..GA70 ＮＯ．１ |
11201-70060 |
US $205.30 |
||
|
11201
|
11201
11202-70020 Cover Sub-Assy, Cylinder Head[08.1988 - 05.1993] 1GGEU..GA70 ＮＯ．２ |
11202-70020 |
US $205.30 |
||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[08.1988 - 11.1990] 1GG#..GA70 *54 & (8808-9002)*53; 1JZGTE..JZA70 *54 & (8808-9002)*53 |
90210-07001 |
from US $2.52 |
||
|
11201B
|
11201B
90210-07004
Washer, Seal(For Cylinder Head Cover)
[02.1990 - 11.1990] 1GGEU..GA70 *53 |
90210-07004 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[02.1990 - 11.1990] 1GGEU..GA70 *53 |
90210-07001 |
from US $2.52 |
||
|
11201U
|
11201U
90385-07001 Bush(For Cylinder Head Cover)[08.1988 - 05.1993] 1GGEU..GA70 |
90385-07001 |
US $9.46 |
||
|
11213
|
11213
11213-88302 Gasket, Cylinder Head Cover[08.1988 - 05.1993] 1GGEU..GA70 |
11213-88302 |
US $40.43 |
||
|
11214
|
11214
11214-88300 Gasket, Cylinder Head Cover, No.2[08.1988 - 05.1993] 1GGEU..GA70 フロント |
11214-88300 |
US $8.59 |
||
|
11214
|
11214
11229-88300
Gasket, Cylinder Head Cover, No.2
[08.1988 - 05.1993] 1GGEU..GA70 リヤ |
11229-88300 |
— | ||
|
11219
|
11219
11219-88300
Cover, Cylinder Head, No.3
[08.1988 - 05.1993] 1GGEU..GA70 |
11219-88300 |
— | ||
|
12108
|
12108
12180-70020 Cap Sub-Assy, Oil Filler[08.1988 - 05.1993] 1GGEU..GA70 |
12180-70020 |
from US $15.19 |
||
|
12108A
|
12108A
12195-70010 Gasket(For Oil Filler Cap)[08.1988 - 05.1993] 1GGEU..GA70 |
12195-70010 |
from US $2.83 |
||
|
9011908451
|
9011908451
90119-08451 New Genuine Part |
90119-08451 |
US $1.89 |
||
|
9015960167
|
9015960167
90159-60167
New Genuine Part
|
90159-60167 |
— | ||
|
9327026025
|
9327026025
93270-26025 SCREW |
93270-26025 |
US $1.92 |
||
