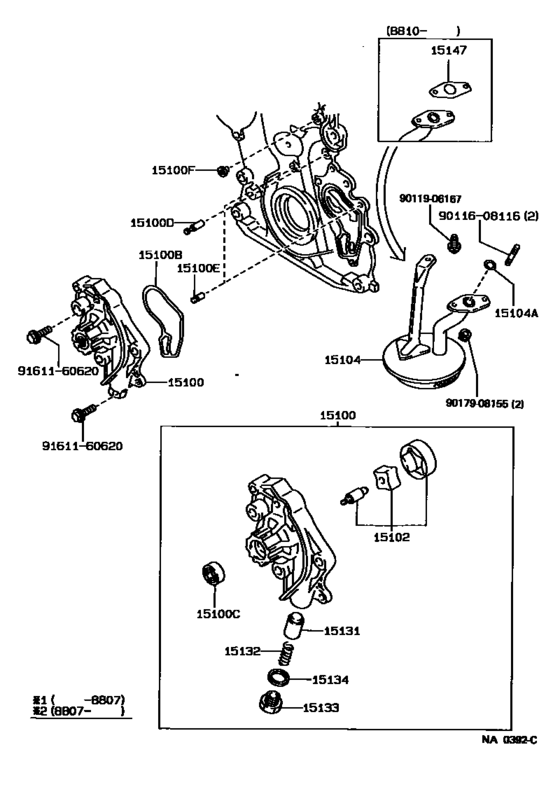

Engine Oil Pump ([08.1988 - ] (8808- )1GG#) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-88300
Pump Assy, Oil
[08.1988 - 05.1993] 1GGEU..GA70 |
15100-88300 |
— | ||
|
15100B
|
15100B
15188-70010 Ring, O(For Oil Pump)[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
15188-70010 |
from US $15.41 |
||
|
15100C
|
15100C
15165-70010 Seal(For Oil Pump)[08.1988 - 05.1993] 1GGEU..GA70 |
15165-70010 |
from US $7.64 |
||
|
15100D
|
15100D
15182-70010 Pin(For Oil Pump Set)[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
15182-70010 |
US $4.51 |
||
|
15100E
|
15100E
15181-70010 Pin, Straight (For Oil Pump Set)[08.1988 - 05.1993] 1GFE,1GGEU..GA70 |
15181-70010 |
US $4.22 |
||
|
15100F
|
15100F
90029-38300 Bush (For Oil Pump)[08.1988 - 10.1989] 1GFE,1GG#..GA70 |
90029-38300 |
US $3.20 |
||
| replacement | |||||
|
15100F
|
15100F
90029-38302 Bush (For Oil Pump)[08.1988 - 10.1989] 1GFE,1GG#..GA70 |
90029-38302 |
US $2.62 |
||
|
15100F
|
15100F
90029-38302 Bush (For Oil Pump)[10.1989 - 05.1993] 1GFE,1GG#..GA70 |
90029-38302 |
US $2.62 |
||
|
15102
|
15102
15102-88300
Rotor Set, Oil Pump
[08.1988 - 05.1993] 1GGEU..GA70 |
15102-88300 |
— | ||
|
15104
|
15104
15104-70030 Strainer Sub-Assy, Oil[08.1988 - 10.1988] 1GG#..GA70 |
15104-70030 |
US $63.34 |
||
| replacements | |||||
|
15104
|
15104
15104-70050 Strainer Sub-Assy, Oil[08.1988 - 10.1988] 1GG#..GA70 |
15104-70050 |
US $63.04 |
||
|
15104
|
15104
15147-70021 Gasket, Oil Strainer[08.1988 - 10.1988] 1GG#..GA70 |
15147-70021 |
US $3.72 |
||
|
15104
|
15104
15104-70050 Strainer Sub-Assy, Oil[10.1988 - 05.1993] 1GFE,1GG#..GA70 *54 & (8909-9305)*53 |
15104-70050 |
US $63.04 |
||
|
15104A
|
15104A
96732-19020
Ring, O(For Oil Strainer)
[08.1988 - 10.1988] 1GG#..GA70 |
96732-19020 |
— | ||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[08.1988 - 05.1993] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
15131-24010 |
from US $4.19 |
||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
15132-40010 |
from US $2.96 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
15133-20010 |
US $6.56 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[08.1988 - 05.1993] 1GG#..GA70 |
15134-20010 |
from US $2.03 |
||
|
15147
|
15147
15147-70020 Gasket, Oil Strainer[10.1988 - 07.1990] 1GFE,1GG#..GA70 |
15147-70020 |
US $6.70 |
||
| replacement | |||||
|
15147
|
15147
15147-70021 Gasket, Oil Strainer[10.1988 - 07.1990] 1GFE,1GG#..GA70 |
15147-70021 |
US $3.72 |
||
|
15147
|
15147
15147-70021 Gasket, Oil Strainer[09.1990 - 08.1991] 1GGEU..GA70 *53 |
15147-70021 |
US $3.72 |
||
|
9011608116
|
9011608116
90116-08116 STUD |
90116-08116 |
US $1.05 |
||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.75 |
||
|
9017908155
|
9017908155
90179-08155 New Genuine Part |
90179-08155 |
US $1.16 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
