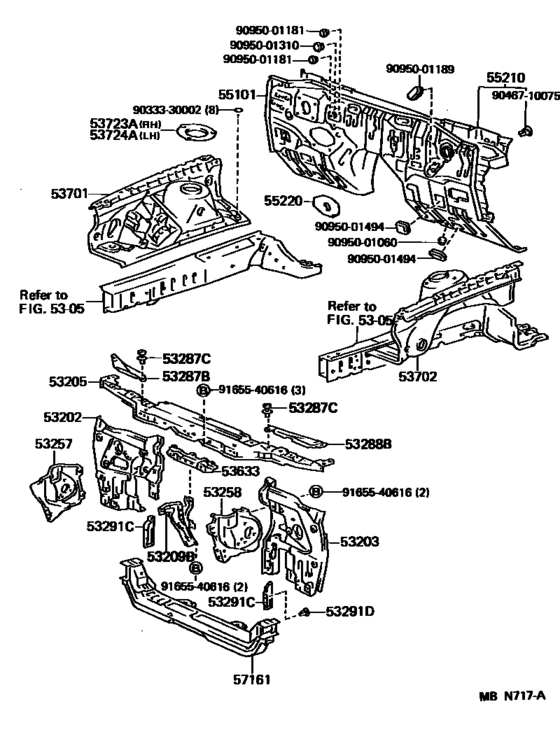

Front Fender Apron & Dash Panel ([08.1988 - ] (8808- )) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53211-14220
Support Sub-Assy, Radiator, Rh
[08.1988 - 08.1990] GA70,MA70..G,GT,GTL,GTT |
53211-14220 |
— | ||
| replacement | |||||
|
53202
|
53202
53211-14221
Support Sub-Assy, Radiator, Rh
[08.1988 - 08.1990] GA70,MA70..G,GT,GTL,GTT |
53211-14221 |
— | ||
|
53202
|
53202
53211-14221
Support Sub-Assy, Radiator, Rh
[08.1990 - 05.1993] GA70,JZA70 |
53211-14221 |
— | ||
|
53203
|
53203
53212-14200
Support Sub-Assy, Radiator, Lh
[08.1988 - 08.1990] GA70,MA70 |
53212-14200 |
— | ||
| replacements | |||||
|
53203
|
53203
53212-14201
Support Sub-Assy, Radiator, Lh
[08.1988 - 08.1990] GA70,MA70 |
53212-14201 |
— | ||
|
53203
|
53203
53292-14020
Seal, Radiator Support To Frame
[08.1988 - 08.1990] GA70,MA70 |
53292-14020 |
— | ||
|
53203
|
53203
88467-14080
Cushion, Cooler Condenser, No.1
[08.1988 - 08.1990] GA70,MA70 |
88467-14080 |
— | ||
|
53203
|
53203
53212-14201
Support Sub-Assy, Radiator, Lh
[08.1990 - 05.1993] GA70,JZA70 |
53212-14201 |
— | ||
|
53205
|
53205
53205-14100
Support Sub-Assy, Radiator, Upper
[08.1988 - 05.1993] GA70,JZA70,MA70 |
53205-14100 |
— | ||
|
53209B
|
53209B
53209-14091
Brace Sub-Assy, Hood Lock Support
[08.1988 - 05.1993] GA70,MA70..G,GT,GTL,GTT |
53209-14091 |
— | ||
|
53257
|
53257
53035-14020 Bracket, Front End Panel Mounting, Rh[08.1988 - 08.1990] GA70,MA70 |
53035-14020 |
US $32.76 |
||
| replacement | |||||
|
53257
|
53257
53035-14030 Bracket, Front End Panel Mounting, Rh[08.1988 - 08.1990] GA70,MA70 |
53035-14030 |
US $30.87 |
||
|
53257
|
53257
53035-14030 Bracket, Front End Panel Mounting, Rh[08.1990 - 05.1993] GA70,JZA70 |
53035-14030 |
US $30.87 |
||
|
53258
|
53258
53036-14020 Bracket, Front End Panel Mounting, Lh[08.1988 - 08.1990] GA70,MA70 |
53036-14020 |
US $31.30 |
||
| replacement | |||||
|
53258
|
53258
53036-14030
Bracket, Front End Panel Mounting, Lh
[08.1988 - 08.1990] GA70,MA70 |
53036-14030 |
— | ||
|
53258
|
53258
53036-14030
Bracket, Front End Panel Mounting, Lh
[08.1990 - 05.1993] GA70,JZA70 |
53036-14030 |
— | ||
|
53287B
|
53287B
53287-14050 Extension, Radiator Support, Rh[08.1988 - 05.1993] GA70,JZA70,MA70 |
53287-14050 |
US $21.69 |
||
|
53287C
|
53287C
90467-07030-01 Clip(For Radiator Sopport Extension)[08.1988 - 08.1989] MA70..GTTL BLACK,TRIM1#; GA70,MA70..G,GT,GTL,GTT BLACK,TRIM1#,3#,8# |
90467-07030-01 |
from US $1.92 |
||
|
53288B
|
53288B
53288-14060
Extension, Radiator Support, Lh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
53288-14060 |
— | ||
|
53291C
|
53291C
53291-14040
Seal, Radiator Support To Frame
[08.1988 - 05.1993] GA70,JZA70,MA70 右側 |
53291-14040 |
— | ||
|
53291C
|
53291C
53292-14010
Seal, Radiator Support To Frame
[08.1988 - 08.1990] GA70,MA70 左側 |
53292-14010 |
— | ||
|
53291C
|
53291C
53292-14020
Seal, Radiator Support To Frame
[08.1990 - 05.1993] GA70,JZA70 左側 |
53292-14020 |
— | ||
|
53291D
|
53291D
90467-06017-01 Clip(For Front Bumper Retainer)[08.1990 - 05.1993] JZA70..GTTR BLACK,TRIM1#,UPPER; GA70,JZA70..GT,GTL,GTT BLACK,TRIM1#,3#,UPPER |
90467-06017-01 |
US $0.96 |
||
|
53291D
|
53291D
90467-06017-11
Clip(For Front Bumper Retainer)
[08.1988 - 10.1989] MA70..GTTL BLACK,TRIM1#,UPPER; GA70,MA70..G,GT,GTL,GTT BLACK,TRIM1#,3#,8#,UPPER |
90467-06017-11 |
— | ||
| replacement | |||||
|
53291D
|
53291D
90467-06017-B7 Clip(For Deck Trim Side Cover)[08.1988 - 10.1989] MA70..GTTL BLACK,TRIM1#,UPPER; GA70,MA70..G,GT,GTL,GTT BLACK,TRIM1#,3#,8#,UPPER |
90467-06017-B7 |
US $1.92 |
||
|
53291D
|
53291D
90467-08099 Clip, Radiator Support To Frame[08.1988 - 05.1993] GA70,JZA70,MA70 LOWER |
90467-08099 |
US $1.60 |
||
|
53633
|
53633
53633-14050
Shield, Hood Lock Control Cable
[08.1990 - 05.1993] GA70,JZA70 |
53633-14050 |
— | ||
|
53633
|
53633
53633-22030
Shield, Hood Lock Control Cable
[08.1988 - 08.1990] GA70,MA70 |
53633-22030 |
— | ||
|
53701
|
53701
53701-14930 Apron Sub-Assy, Front Fender, Rh[08.1988 - 08.1990] GA70,MA70 |
53701-14930 |
US $464.46 |
||
| replacement | |||||
|
53701
|
53701
53701-14935 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [08.1988 - 08.1990] GA70,MA70 |
53701-14935 |
US $463.01 |
||
|
53701
|
53701
53701-14934 Apron Sub-Assy, Front Fender, Rh[08.1990 - 05.1993] GA70,JZA70 |
53701-14934 |
US $463.01 |
||
| replacement | |||||
|
53701
|
53701
53701-14935 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [08.1990 - 05.1993] GA70,JZA70 |
53701-14935 |
US $463.01 |
||
|
53702
|
53702
53702-14936 Apron Sub-Assy, Front Fender, Lh[08.1988 - 08.1990] GA70,MA70 |
53702-14936 |
US $464.46 |
||
| replacement | |||||
|
53702
|
53702
53702-14937 Apron Sub-Assy, Front Fender, Lh[08.1988 - 08.1990] GA70,MA70 |
53702-14937 |
US $463.01 |
||
|
53702
|
53702
53702-14937 Apron Sub-Assy, Front Fender, Lh[08.1990 - 05.1993] GA70,JZA70 |
53702-14937 |
US $463.01 |
||
|
53723A
|
53723A
53723-14060
Reinforcement, Front Spring Support, Rh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
53723-14060 |
— | ||
|
53724A
|
53724A
53723-14060
Reinforcement, Front Spring Support, Rh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
53723-14060 |
— | ||
|
55101
|
55101
55101-14540 Panel Sub-Assy, Dash[08.1988 - 05.1993] MA70..GTTL;GA70,JZA70..G,GT,GTT,GTTR |
55101-14540 |
US $439.71 |
||
|
55210
|
55210
55210-14370 Insulator Assy, Dash Panel[08.1988 - 05.1993] GA70,JZA70,MA70 |
55210-14370 |
US $324.69 |
||
|
55220
|
55220
55220-14050 Insulator Assy, Dash Panel, No.2[08.1988 - 05.1993] GA70,JZA70,MA70 |
55220-14050 |
US $19.95 |
||
|
57161
|
57161
57104-14120
Member Sub-Assy, Front Cross
[08.1988 - 05.1993] GA70,JZA70,MA70..G,GT,GTL,GTT,GTTR |
57104-14120 |
— | ||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9046710075
|
9046710075
90467-10075 New Genuine Part |
90467-10075 |
US $3.49 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001181
|
9095001181
90950-01181 Plug, Hole(For Front Fender Apron) |
90950-01181 |
US $3.52 |
||
|
9095001189
|
9095001189
90950-01189 Plug, Hole, No.3(For Dash Panel) |
90950-01189 |
US $3.14 |
||
|
9095001310
|
9095001310
90950-01310 Plug, Hole |
90950-01310 |
from US $7.68 |
||
|
9095001494
|
9095001494
90950-01494 New Genuine Part |
90950-01494 |
US $5.39 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
