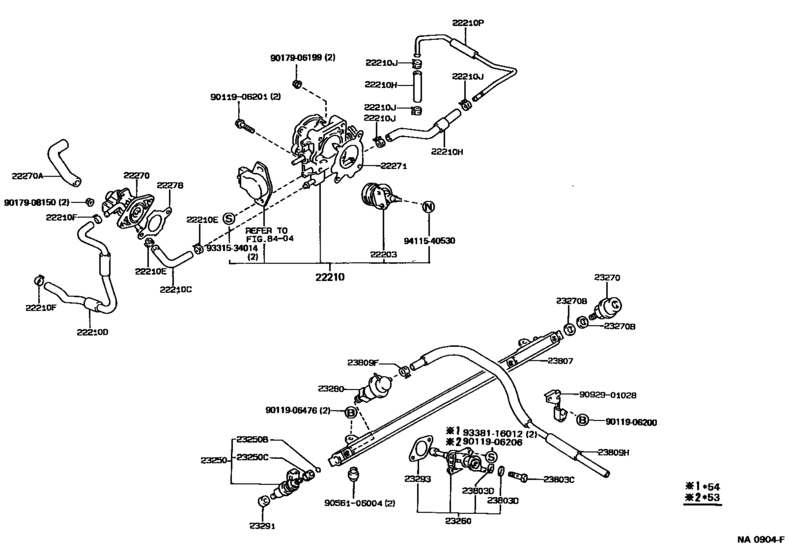

Fuel Injection System ([08.1988 - ] (8808- )1GGEU) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-70050 Dash Pot Sub-Assy(For Throttle Body)[08.1988 - 05.1993] 1GGEU..GA70 |
22203-70050 |
US $90.27 |
||
|
22210
|
22210
22210-70260 Body Assy, Throttle[08.1988 - 05.1993] 1GGEU..GA70 |
22210-70260 |
US $679.95 |
||
|
22210C
|
22210C
16267-88302 Hose, Water By-Pass, No.3[08.1988 - 05.1993] 1GGEU..GA70 |
16267-88302 |
US $9.17 |
||
|
22210D
|
22210D
16264-88302 Hose, Water By-Pass, No.2[08.1988 - 05.1993] 1GGEU..GA70 |
16264-88302 |
US $18.35 |
||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 12.1990] 1GGEU..GA70 *53 |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1988 - 12.1990] 1GGEU..GA70 *53 |
96135-51300 |
from US $1.92 |
||
|
22210E
|
22210E
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 05.1993] 1GGEU..GA70 *54 & (9012-9305)*53 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1988 - 05.1993] 1GGEU..GA70 *54 & (9012-9305)*53 |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 12.1990] 1GGEU..GA70 *53 |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1988 - 12.1990] 1GGEU..GA70 *53 |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 05.1993] 1GGEU..GA70 *54 & (9012-9305)*53 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1988 - 05.1993] 1GGEU..GA70 *54 & (9012-9305)*53 |
96135-51300 |
from US $1.92 |
||
|
22210H
|
22210H
16281-88302 Hose, Water By-Pass, No.3[08.1988 - 05.1993] 1GGEU..GA70 THROTTLE BODY SIDE |
16281-88302 |
US $9.90 |
||
|
22210H
|
22210H
16283-70020 Hose, Water By-Pass, No.6[08.1988 - 05.1993] 1GGEU..GA70 PIPE SIDE |
16283-70020 |
US $7.72 |
||
|
22210J
|
22210J
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 12.1990] 1GGEU..GA70 *53 |
90467-13001 |
— | ||
| replacement | |||||
|
22210J
|
22210J
96135-51300 Clamp, Hose[08.1988 - 12.1990] 1GGEU..GA70 *53 |
96135-51300 |
from US $1.92 |
||
|
22210J
|
22210J
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 05.1993] 1GGEU..GA70 *54 & (9012-9305)*53 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
22210J
|
22210J
96135-51300 Clamp, Hose[08.1988 - 05.1993] 1GGEU..GA70 *54 & (9012-9305)*53 |
96135-51300 |
from US $1.92 |
||
|
22210P
|
22210P
16279-88307 Pipe, Water By-Pass[08.1988 - 06.1990] 1GGEU..GA70 |
16279-88307 |
US $29.27 |
||
| replacement | |||||
|
22210P
|
22210P
16279-88308 Pipe, Water By-Pass[08.1988 - 06.1990] 1GGEU..GA70 |
16279-88308 |
US $28.83 |
||
|
22210P
|
22210P
16279-88308 Pipe, Water By-Pass[06.1990 - 05.1993] 1GGEU..GA70 |
16279-88308 |
US $28.83 |
||
|
22270
|
22270
22270-70090
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1988 - 05.1993] 1GGEU..GA70 |
22270-70090 |
— | ||
|
22270A
|
22270A
17344-88301 Hose, Air, No.1(For Idle Speed Control Valve)[08.1988 - 05.1993] 1GGEU..GA70 |
17344-88301 |
US $18.64 |
||
|
22271
|
22271
22271-88301
Gasket, Throttle Body
[08.1988 - 05.1993] 1GGEU..GA70 |
22271-88301 |
— | ||
|
22278
|
22278
22278-88340
Gasket, Idle Speed Control Valve
[08.1988 - 05.1993] 1GG#..GA70 |
22278-88340 |
— | ||
|
23250
|
23250
23209-70090 Injector Assy, Fuel[08.1988 - 05.1993] 1GGEU..GA70 |
23209-70090 |
US $275.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1988 - 05.1993] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1988 - 05.1993] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-79125 Injector Assy, Cold Start Fuel[08.1988 - 08.1990] 1GGEU..GA70 |
23260-79125 |
US $142.69 |
||
| replacement | |||||
|
23260
|
23260
23260-79126 Injector Assy, Cold Start Fuel[08.1988 - 08.1990] 1GGEU..GA70 |
23260-79126 |
US $138.32 |
||
|
23260
|
23260
23260-79126 Injector Assy, Cold Start Fuel[08.1990 - 05.1993] 1GGEU..GA70 |
23260-79126 |
US $138.32 |
||
|
23270
|
23270
23270-52011
Damper Assy, Fuel Pressure Pulsation
[08.1988 - 05.1993] 1GGEU..GA70 |
23270-52011 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-16020
Damper Assy, Fuel Pressure Pulsation
[08.1988 - 05.1993] 1GGEU..GA70 |
23207-16020 |
— | ||
|
23270B
|
23270B
23232-28010
Gasket(For Fuel Pump Hose)
[08.1988 - 02.1990] 1GFE,1GG#..GA70 DAMPER SIDE |
23232-28010 |
— | ||
| replacement | |||||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.1988 - 02.1990] 1GFE,1GG#..GA70 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[02.1990 - 08.1990] 1GFE,1GGEU..GA70 DAMPER SIDE,*53 |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12005 Gasket(For Water Hole)[08.1988 - 02.1990] 1GFE,1GG#..GA70 DELIVERY SIDE |
90430-12005 |
from US $0.76 |
||
|
23270B
|
23270B
90430-12026 Gasket[02.1990 - 05.1993] 1JZGTE..JZA70 FILTER SIDE; 1GFE,1GGEU..GA70 DELIVERY SIDE,*53 & (9008-9305)*54 |
90430-12026 |
from US $0.88 |
||
|
23280
|
23280
23280-70030 Regulator Assy, Fuel Pressure[08.1988 - 05.1993] 1GGEU..GA70 |
23280-70030 |
US $131.04 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1988 - 05.1993] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
23291-41010 |
from US $2.77 |
||
|
23293
|
23293
23293-62020
Gasket(For Surge Tank Cover)
[01.1990 - 05.1993] 1GGEU..GA70 *54 |
23293-62020 |
— | ||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[08.1988 - 12.1989] 1GGEU..GA70; 7MGTEU..MA70 |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[08.1988 - 12.1989] 1GGEU..GA70; 7MGTEU..MA70 |
23293-42010 |
US $5.60 |
||
|
23803C
|
23803C
90401-08003 Bolt, Union[04.1989 - 05.1993] 1GFE,1GG#..GA70 |
90401-08003 |
US $2.24 |
||
|
23803C
|
23803C
90401-08006 Bolt, Union[08.1988 - 04.1989] 1GFE,1GG#..GA70 |
90401-08006 |
US $2.18 |
||
| replacement | |||||
|
23803C
|
23803C
90401-08003 Bolt, Union[08.1988 - 04.1989] 1GFE,1GG#..GA70 |
90401-08003 |
US $2.24 |
||
|
23803D
|
23803D
90430-08005 Gasket[08.1988 - 02.1990] 1GFE,1GG#..GA70 |
90430-08005 |
US $2.24 |
||
|
23803D
|
23803D
90430-08012 Gasket[02.1990 - 08.1990] 1GFE,1GGEU..GA70 *53 |
90430-08012 |
US $1.92 |
||
|
23807
|
23807
23807-88301 Pipe Sub-Assy, Fuel Delivery[08.1988 - 05.1993] 1GGEU..GA70 |
23807-88301 |
US $270.82 |
||
|
23809F
|
23809F
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
96135-51300 |
from US $1.92 |
||
|
23809H
|
23809H
90447-15010 Hose, Fuel Pipe Support To Regulator[08.1988 - 05.1993] 1GG#..GA70 *53 |
90447-15010 |
US $33.20 |
||
|
23809H
|
23809H
90447-15028 Hose, Fuel Pipe Support To Regulator[04.1989 - 05.1993] 1GGEU..GA70 |
90447-15028 |
US $33.78 |
||
|
9011906200
|
9011906200
90119-06200 New Genuine Part |
90119-06200 |
from US $2.91 |
||
|
9011906201
|
9011906201
90119-06201 New Genuine Part |
90119-06201 |
US $1.89 |
||
|
9011906206
|
9011906206
90119-06206 New Genuine Part |
90119-06206 |
US $2.24 |
||
|
9011906476
|
9011906476
90119-06476 New Genuine Part |
90119-06476 |
US $1.89 |
||
| replacement | |||||
|
9011906476
|
9011906476
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9017906199
|
9017906199
90179-06199 NUT |
90179-06199 |
US $1.12 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.05 |
||
|
9056106004
|
9056106004
90561-06004 New Genuine Part |
90561-06004 |
US $6.99 |
||
|
9092901028
|
9092901028
90929-01028 New Genuine Part |
90929-01028 |
US $12.52 |
||
|
9331534014
|
9331534014
93315-34014
New Genuine Part
|
93315-34014 |
— | ||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9411540530
|
9411540530
94115-40530 New Genuine Part |
94115-40530 |
US $1.46 |
||
