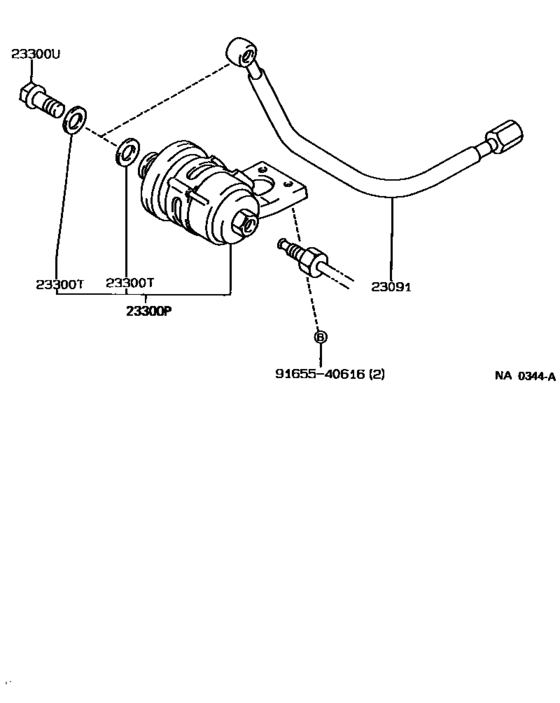

Fuel Injection System ([08.1988 - ] (8808- )1GFE,1GG#) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-42010
Tube Sub-Assy, Fuel Pump
[08.1988 - 05.1993] 1JZGTE..JZA70; 7MGTEU..MA70; 1GFE,1GG#..GA70 |
23091-42010 |
— | ||
|
23300P
|
23300P
23300-79135
Filter, Fuel(For Efi)
[08.1988 - 08.1990] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
23300-79135 |
— | ||
| replacement | |||||
|
23300P
|
23300P
23300-49155 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.1988 - 08.1990] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
23300-49155 |
US $105.08 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1988 - 05.1993] 1JZGTE..JZA70; 7MGTEU..MA70; 1GFE,1GG#..GA70 |
90430-12005 |
from US $0.76 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
