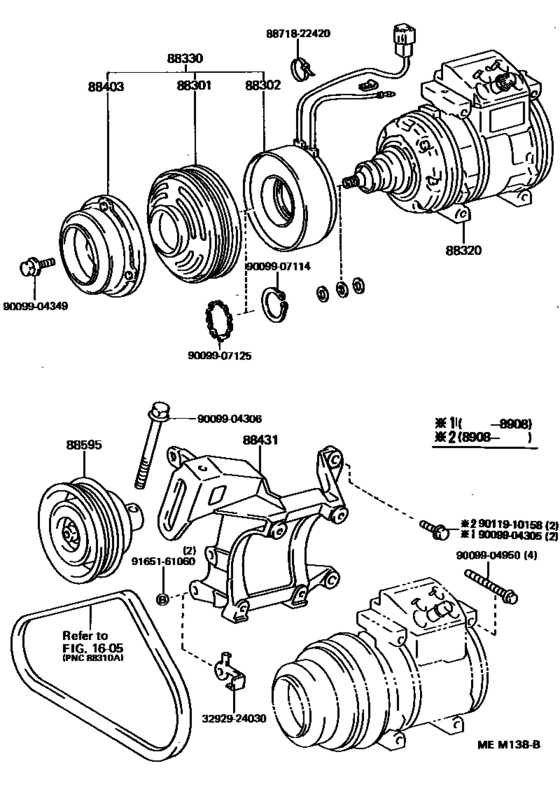

Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )GA70) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-12160
Rotor Sub-Assy, Magnet Clutch
[08.1988 - 05.1993] GA70,MA70 |
88412-12160 |
— | ||
|
88302
|
88302
88411-14111 Stator Sub-Assy, Magnet Clutch[08.1988 - 08.1989] GA70,MA70 |
88411-14111 |
US $115.02 |
||
| replacement | |||||
|
88302
|
88302
88411-14120
Stator Sub-Assy, Magnet Clutch
[08.1988 - 08.1989] GA70,MA70 |
88411-14120 |
— | ||
|
88302
|
88302
88411-14120
Stator Sub-Assy, Magnet Clutch
[09.1991 - 05.1993] GA70..NOB; GA70..WIB |
88411-14120 |
— | ||
|
88320
|
88320
88320-14532
Compressor Assy, Cooler
[08.1991 - 05.1993] GA70 |
88320-14532 |
— | ||
|
88320
|
88320
88320-14541
Compressor Assy, Cooler
[08.1988 - 06.1991] GA70..NOB |
88320-14541 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-22H91 Compressor Assy, Cooler[08.1988 - 06.1991] GA70..NOB |
88320-22H91 |
from US $993.21 |
||
|
88330
|
88330
88410-14181 Clutch Assy, Magnet[08.1988 - 08.1989] GA70,MA70 |
88410-14181 |
US $556.19 |
||
| replacement | |||||
|
88330
|
88330
88410-14210 Clutch Assy, Magnet[08.1988 - 08.1989] GA70,MA70 |
88410-14210 |
US $554.74 |
||
|
88330
|
88330
88410-14210 Clutch Assy, Magnet[09.1992 - 05.1993] GA70 |
88410-14210 |
US $554.74 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[08.1988 - 05.1993] GA70,MA70 |
88403-16011 |
US $82.47 |
||
|
88431
|
88431
88431-24060
Bracket, Compressor Mounting, No.1
[08.1988 - 05.1993] GA70 |
88431-24060 |
— | ||
|
88595
|
88595
88440-17010 Pulley Assy, Idle[08.1988 - 05.1993] GA70,MA70 |
88440-17010 |
US $94.72 |
||
|
3292924030
|
3292924030
32929-24030 Clamp, Flexible Hose, No.2 |
32929-24030 |
US $9.76 |
||
|
8871822420
|
8871822420
88718-22420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-22420 |
— | ||
|
9009904305
|
9009904305
90099-04305
New Genuine Part
|
90099-04305 |
— | ||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.11 |
||
|
9011910158
|
9011910158
90119-10158 New Genuine Part |
90119-10158 |
US $2.48 |
||
|
9165161060
|
9165161060
91651-61060 New Genuine Part |
91651-61060 |
US $0.96 |
||
