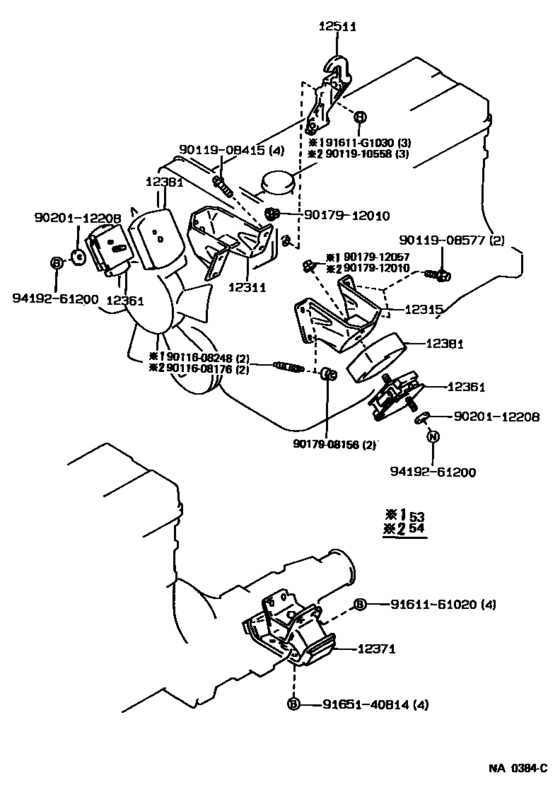

Mounting ([08.1988 - 12.1988] (8808-8812)1GG#) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-70070 Bracket, Engine Mounting, Front No.1 Rh[08.1988 - 12.1988] 1GGEU..GA70 ブルー |
12311-70070 |
US $33.63 |
||
|
12311
|
12311
12311-70080 Bracket, Engine Mounting, Front No.1 Rh[08.1988 - 12.1988] 1GGEU..GA70 WHITE; 1GGTEU..GA70 |
12311-70080 |
US $33.63 |
||
|
12311
|
12311
12311-70110 Bracket, Engine Mounting, Front No.1 Rh[12.1988 - 01.1989] 1GG#..GA70 |
12311-70110 |
US $74.26 |
||
|
12315
|
12315
12315-70050 Bracket, Engine Mounting, Front No.1 Lh[08.1988 - 12.1988] 1GFE,1GG#..GA70 |
12315-70050 |
US $33.63 |
||
|
12315
|
12315
12315-70080 Bracket, Engine Mounting, Front No.1 Lh[12.1988 - 01.1989] 1GG#..GA70 |
12315-70080 |
US $74.26 |
||
|
12361
|
12361
12361-42050 Insulator, Engine Mounting, Front[12.1988 - 01.1989] 1GG#..GA70 |
12361-42050 |
from US $185.76 |
||
|
12361
|
12361
12361-70060
Insulator, Engine Mounting, Front
[08.1988 - 12.1988] 1GFE,1GG#..GA70 |
12361-70060 |
— | ||
|
12371
|
12371
12371-42020 Insulator, Engine Mounting, Rear No.1[12.1988 - 01.1989] 1GG#..GA70 |
12371-42020 |
US $90.28 |
||
|
12371
|
12371
12371-70020
Insulator, Engine Mounting, Rear No.1
[08.1988 - 12.1988] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
12371-70020 |
— | ||
|
12381
|
12381
12381-42010
Stabilizer, Engine Mounting
[08.1988 - 12.1988] 7MGTEU..MA70; 1GFE,1GG#..GA70 |
12381-42010 |
— | ||
|
12381
|
12381
12381-42030
Stabilizer, Engine Mounting
[12.1988 - 01.1989] 1GG#..GA70 |
12381-42030 |
— | ||
|
12511
|
12511
12511-88301 Bracket, Alternator, No.1[08.1988 - 05.1993] 1GG#..GA70 |
12511-88301 |
US $68.43 |
||
|
91611G1030
|
91611G1030
91611-G1030 New Genuine Part |
91611-G1030 |
US $2.62 |
||
|
9011608176
|
9011608176
90116-08176 New Genuine Part |
90116-08176 |
US $3.64 |
||
|
9011608248
|
9011608248
90116-08248 Bolt(For Intake Manifold To Exhaust Manifold) |
90116-08248 |
US $0.87 |
||
|
9011908415
|
9011908415
90119-08415 New Genuine Part |
90119-08415 |
US $1.44 |
||
|
9011908577
|
9011908577
90119-08577 New Genuine Part |
90119-08577 |
US $2.33 |
||
|
9011910558
|
9011910558
90119-10558 New Genuine Part |
90119-10558 |
US $2.48 |
||
|
9017908156
|
9017908156
90179-08156 New Genuine Part |
90179-08156 |
US $2.33 |
||
| replacement | |||||
|
9017908156
|
9017908156
90179-08067 New Genuine Part |
90179-08067 |
US $1.75 |
||
|
9017912010
|
9017912010
90179-12010 NUT |
90179-12010 |
US $3.04 |
||
|
9017912057
|
9017912057
90179-12057
New Genuine Part
|
90179-12057 |
— | ||
|
9020112208
|
9020112208
90201-12208 WASHER |
90201-12208 |
US $3.04 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9419261200
|
9419261200
94192-61200 New Genuine Part |
94192-61200 |
US $2.48 |
||
| replacement | |||||
|
9419261200
|
9419261200
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
