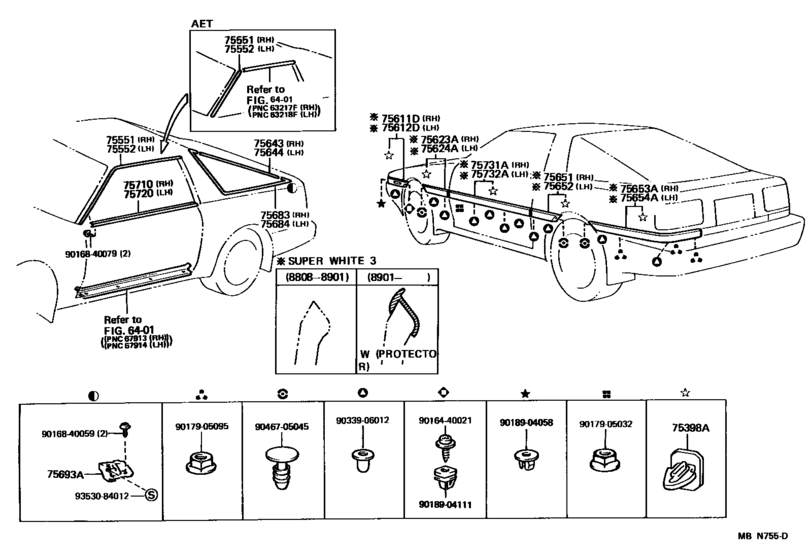

Side Moulding ([08.1988 - ] (8808- )NOB) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75398A
|
75398A
75398-14010
Clip, Outside Moulding, No.5
[08.1988 - 05.1993] GA70..NOB |
75398-14010 |
— | ||
|
75551
|
75551
75551-14140
Moulding, Roof Drip Side Finish, Rh
[08.1988 - 05.1993] GA70,JZA70,MA70..LB |
75551-14140 |
— | ||
|
75552
|
75552
75552-14140
Moulding, Roof Drip Side Finish, Lh
[08.1988 - 05.1993] GA70,JZA70,MA70..LB |
75552-14140 |
— | ||
|
75611D
|
75611D
75611-14110-01 Moulding, Front Fender, Outside Front Rh[08.1988 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75611-14110-01 |
US $71.20 |
||
|
75612D
|
75612D
75612-14080 Moulding, Front Fender, Outside Front Lh[08.1988 - 02.1989] GA70 |
75612-14080 |
US $71.20 |
||
| replacement | |||||
|
75612D
|
75612D
75612-14080-01 Moulding, Front Fender, Outside Front Lh[08.1988 - 02.1989] GA70 |
75612-14080-01 |
US $71.20 |
||
|
75612D
|
75612D
75612-14080-01 Moulding, Front Fender, Outside Front Lh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75612-14080-01 |
US $71.20 |
||
|
75623A
|
75623A
75623-14080 Moulding, Front Fender, Outside Rear Rh[08.1988 - 02.1989] GA70 |
75623-14080 |
US $71.20 |
||
| replacement | |||||
|
75623A
|
75623A
75623-14080-01 Moulding, Front Fender, Outside Rear Rh[08.1988 - 02.1989] GA70 |
75623-14080-01 |
US $71.20 |
||
|
75623A
|
75623A
75623-14080-01 Moulding, Front Fender, Outside Rear Rh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75623-14080-01 |
US $71.20 |
||
|
75624A
|
75624A
75624-14080 Moulding, Front Fender, Outside Rear Lh[08.1988 - 02.1989] GA70 |
75624-14080 |
US $71.20 |
||
| replacement | |||||
|
75624A
|
75624A
75624-14080-01 Moulding, Front Fender, Outside Rear Lh[08.1988 - 02.1989] GA70 |
75624-14080-01 |
US $71.20 |
||
|
75624A
|
75624A
75624-14080-01 Moulding, Front Fender, Outside Rear Lh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75624-14080-01 |
US $71.20 |
||
|
75643
|
75643
75643-14041
Moulding, Quarter Window, Outside Upper Rh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
75643-14041 |
— | ||
|
75644
|
75644
75644-14041
Moulding, Quarter Window, Outside Upper Lh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
75644-14041 |
— | ||
|
75651
|
75651
75651-14190 Moulding, Quarter, Outside Rh[08.1988 - 02.1989] GA70 |
75651-14190 |
US $59.26 |
||
| replacement | |||||
|
75651
|
75651
75651-14190-01 Moulding, Quarter, Outside Rh[08.1988 - 02.1989] GA70 |
75651-14190-01 |
US $59.26 |
||
|
75651
|
75651
75651-14190-01 Moulding, Quarter, Outside Rh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75651-14190-01 |
US $59.26 |
||
|
75652
|
75652
75652-14160 Moulding, Quarter, Outside Lh[08.1988 - 02.1989] GA70 |
75652-14160 |
US $59.26 |
||
| replacement | |||||
|
75652
|
75652
75652-14160-01 Moulding, Quarter, Outside Lh[08.1988 - 02.1989] GA70 |
75652-14160-01 |
US $59.26 |
||
|
75652
|
75652
75652-14160-01 Moulding, Quarter, Outside Lh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75652-14160-01 |
US $59.26 |
||
|
75653A
|
75653A
75653-14160 Moulding, Quarter, Outside Rear Rh[08.1988 - 02.1989] GA70 |
75653-14160 |
US $109.20 |
||
| replacement | |||||
|
75653A
|
75653A
75653-14160-01 Moulding, Quarter, Outside Rear Rh[08.1988 - 02.1989] GA70 |
75653-14160-01 |
US $109.20 |
||
|
75653A
|
75653A
75653-14160-01 Moulding, Quarter, Outside Rear Rh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75653-14160-01 |
US $109.20 |
||
|
75654A
|
75654A
75654-14190 Moulding, Quarter, Outside Rear Lh[08.1988 - 02.1989] GA70 |
75654-14190 |
US $109.20 |
||
| replacement | |||||
|
75654A
|
75654A
75654-14190-01 Moulding, Quarter, Outside Rear Lh[08.1988 - 02.1989] GA70 |
75654-14190-01 |
US $109.20 |
||
|
75654A
|
75654A
75654-14190-01 Moulding, Quarter, Outside Rear Lh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75654-14190-01 |
US $109.20 |
||
|
75683
|
75683
75608-14010
Moulding, Quarter Belt, Rear Rh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
75608-14010 |
— | ||
|
75684
|
75684
75609-14010
Moulding, Quarter Belt, Rear Lh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
75609-14010 |
— | ||
|
75693A
|
75693A
75695-14010
Retainer, Quarter Belt Moulding
[08.1988 - 05.1993] GA70,JZA70,MA70 右側 |
75695-14010 |
— | ||
|
75693A
|
75693A
75696-14010
Retainer, Quarter Belt Moulding
[08.1988 - 05.1993] GA70,JZA70,MA70 左側 |
75696-14010 |
— | ||
|
75710
|
75710
75710-14240
Moulding Assy, Front Door Belt, Rh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
75710-14240 |
— | ||
|
75720
|
75720
75720-14240
Moulding Assy, Front Door Belt, Lh
[08.1988 - 05.1993] GA70,JZA70,MA70 |
75720-14240 |
— | ||
|
75731A
|
75731A
75731-14210 Moulding, Front Door, Outside Rh[08.1988 - 02.1989] GA70 |
75731-14210 |
US $163.07 |
||
| replacement | |||||
|
75731A
|
75731A
75731-14210-01 Moulding, Front Door, Outside Rh[08.1988 - 02.1989] GA70 |
75731-14210-01 |
US $163.07 |
||
|
75731A
|
75731A
75731-14210-01 Moulding, Front Door, Outside Rh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75731-14210-01 |
US $163.07 |
||
|
75732A
|
75732A
75732-14190 Moulding, Front Door, Outside Lh[08.1988 - 02.1989] GA70 |
75732-14190 |
US $163.07 |
||
| replacement | |||||
|
75732A
|
75732A
75732-14190-01 Moulding, Front Door, Outside Lh[08.1988 - 02.1989] GA70 |
75732-14190-01 |
US $163.07 |
||
|
75732A
|
75732A
75732-14190-01 Moulding, Front Door, Outside Lh[02.1989 - 08.1989] GA70 BLACK,043 ,167 ,206 ,3H4 ,8E3 |
75732-14190-01 |
US $163.07 |
||
|
9016440021
|
9016440021
90164-40021 Screw |
90164-40021 |
US $1.92 |
||
|
9016840059
|
9016840059
90168-40059 Screw, Headlamp |
90168-40059 |
US $1.12 |
||
|
9016840079
|
9016840079
90168-40079 New Genuine Part |
90168-40079 |
US $1.75 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9018904058
|
9018904058
90189-04058 Grommet |
90189-04058 |
US $1.92 |
||
|
9018904111
|
9018904111
90189-04111
New Genuine Part
|
90189-04111 |
— | ||
|
9033906012
|
9033906012
90339-06012 CAP |
90339-06012 |
US $2.88 |
||
|
9046705045
|
9046705045
90467-05045
Clip(For Front Fender Seal)
|
90467-05045 |
— | ||
| replacement | |||||
|
9046705045
|
9046705045
90467-05045-22 Clip(For Front Fender Seal) |
90467-05045-22 |
US $1.44 |
||
|
9353084012
|
9353084012
93530-84012 Screw |
93530-84012 |
US $0.52 |
||
