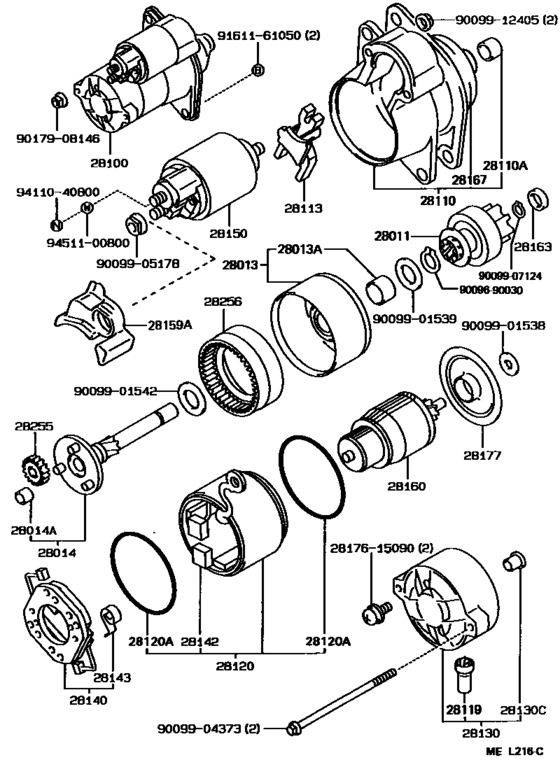

Starter ([08.1988 - ] 12V 0.8KW (8808- )1GFE,1GG#,1JZGTE) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- GA70
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[08.1988 - 05.1993] 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28011-26042 |
— | ||
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28011-70020 |
US $43.51 |
||
|
28013
|
28013
28013-70020 Bearing, Starter Center & Shock Absorber, No.1[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28013-70020 |
US $29.12 |
||
| replacement | |||||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28013-70030 |
US $24.32 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
90099-10181 |
— | ||
|
28014
|
28014
28014-70020 Shaft Sub-Assy, Planet Carrier[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28014-70020 |
US $23.15 |
||
|
28014A
|
28014A
90099-10180
Bush Or Bearing, Planet Carrier Shaft
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
90099-10180 |
— | ||
|
28100
|
28100
28100-15040 Starter Assy[08.1988 - 05.1993] 1GFE,1GG#..GA70 １２Ｖ １．０ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ |
28100-15040 |
US $1,275.46 |
||
|
28100
|
28100
28100-70020 Starter Assy[08.1988 - 05.1993] 1GFE,1GG#..GA70 １２Ｖ ０．８ＫＷ |
28100-70020 |
US $898.35 |
||
|
28110
|
28110
28110-15040 Housing Assy, Starter Drive[08.1988 - 05.1993] 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28110-15040 |
US $52.56 |
||
|
28110
|
28110
28110-70020 Housing Assy, Starter Drive[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
28110-70020 |
US $80.08 |
||
|
28110A
|
28110A
90099-10182
Bearing(For Starter Housing)
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
90099-10182 |
— | ||
|
28113
|
28113
28113-70020 Lever, Starter Pinion Drive[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28113-70020 |
US $12.23 |
||
|
28119
|
28119
28199-46080 Cover, Starter End Frame[08.1990 - 05.1993] 1GG#,1JZGTE..GA70,JZA70 |
28199-46080 |
from US $2.97 |
||
|
28119
|
28119
28199-70020
Cover, Starter End Frame
[08.1988 - 08.1989] 1GFE,1GG#..GA70 |
28199-70020 |
— | ||
| replacement | |||||
|
28119
|
28119
28199-46080 Cover, Starter End Frame[08.1988 - 08.1989] 1GFE,1GG#..GA70 |
28199-46080 |
from US $2.97 |
||
|
28119
|
28119
28199-70021
Cover, Starter End Frame
[08.1989 - 08.1990] 1GFE,1GG#..GA70 |
28199-70021 |
— | ||
| replacement | |||||
|
28119
|
28119
28199-46080 Cover, Starter End Frame[08.1989 - 08.1990] 1GFE,1GG#..GA70 |
28199-46080 |
from US $2.97 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[08.1988 - 05.1993] 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28120-26071 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28120-70020 |
from US $103.95 |
||
|
28120A
|
28120A
90099-14092
Ring, O(For Starter Yoke)
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
90099-14092 |
— | ||
|
28130
|
28130
28130-15040 Frame Assy, Starter Commutator End[08.1988 - 05.1993] 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28130-15040 |
US $21.11 |
||
|
28130
|
28130
28130-70020 Frame Assy, Starter Commutator End[08.1988 - 05.1993] 1GFE,1GG#..GA70 |
28130-70020 |
US $31.45 |
||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
90099-10183 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1988 - 05.1993] 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28140-26070 |
from US $16.77 |
||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28140-70020 |
from US $22.19 |
||
|
28142
|
28142
28142-70020 Brush, Starter[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28142-70020 |
from US $2.81 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28143-70020 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 ｶﾝﾚｲﾁ ｼﾖｳ |
90099-17112 |
— | ||
|
28150
|
28150
28150-15040 Switch Assy, Magnet Starter[10.1991 - 05.1993] 1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28150-15040 |
US $350.90 |
||
| replacement | |||||
|
28150
|
28150
28150-15070 Switch Assy, Magnet Starter[10.1991 - 05.1993] 1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28150-15070 |
US $230.05 |
||
|
28150
|
28150
28150-15070 Switch Assy, Magnet Starter[08.1988 - 10.1991] 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28150-15070 |
US $230.05 |
||
|
28150
|
28150
28150-46080 Switch Assy, Magnet Starter[08.1990 - 05.1993] 1GG#,1JZGTE..GA70,JZA70 |
28150-46080 |
US $125.22 |
||
|
28150
|
28150
28150-70020 Switch Assy, Magnet Starter[08.1988 - 08.1990] 1GFE,1GG#..GA70 |
28150-70020 |
US $116.48 |
||
| replacement | |||||
|
28150
|
28150
28150-46080 Switch Assy, Magnet Starter[08.1988 - 08.1990] 1GFE,1GG#..GA70 |
28150-46080 |
US $125.22 |
||
|
28159A
|
28159A
28159-46080
Cover, Starter Protector
[08.1990 - 06.1992] 1GG#,1JZGTE..GA70,JZA70 |
28159-46080 |
— | ||
|
28160
|
28160
28160-26070 Armature Assy, Starter[08.1988 - 08.1989] 7MGTEU..MA70; 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1988 - 08.1989] 7MGTEU..MA70; 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28160-26071 |
— | ||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1989 - 05.1993] 1GFE,1GG#..GA70 ｶﾝﾚｲﾁ ｼﾖｳ |
28160-26071 |
— | ||
|
28160
|
28160
28160-70020 Armature Assy, Starter[08.1988 - 12.1988] 1GFE,1GG#..GA70 |
28160-70020 |
US $208.21 |
||
| replacement | |||||
|
28160
|
28160
28160-70021 Armature Assy, Starter[08.1988 - 12.1988] 1GFE,1GG#..GA70 |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[12.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28160-70021 |
US $131.04 |
||
|
28163
|
28163
28163-70020
Nut Or Collar, Pinion Stop, Starter
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28163-70020 |
— | ||
|
28167
|
28167
28167-46080
Cover, Housing
[08.1990 - 06.1992] 1GG#,1JZGTE..GA70,JZA70 |
28167-46080 |
— | ||
|
28177
|
28177
28177-70020
Plate(For Starter Armature)
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28177-70020 |
— | ||
|
28255
|
28255
28255-70020
Gear, Planet
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28255-70020 |
— | ||
|
28256
|
28256
28256-70020
Gear, Starter Internal
[08.1988 - 05.1993] 1GFE,1GG#,1JZGTE..GA70,JZA70 |
28256-70020 |
— | ||
|
2817615090
|
2817615090
28176-15090
Screw, Starter
|
28176-15090 |
— | ||
| replacement | |||||
|
2817615090
|
2817615090
28176-87701
Screw, Starter
|
28176-87701 |
— | ||
|
9009690030
|
9009690030
90096-90030
Ring, Snap, Starter Clutch Housing Disc
|
90096-90030 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009901539
|
9009901539
90099-01539
New Genuine Part
|
90099-01539 |
— | ||
|
9009901542
|
9009901542
90099-01542
New Genuine Part
|
90099-01542 |
— | ||
|
9009904373
|
9009904373
90099-04373
BOLTTHROUGH
|
90099-04373 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.29 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
