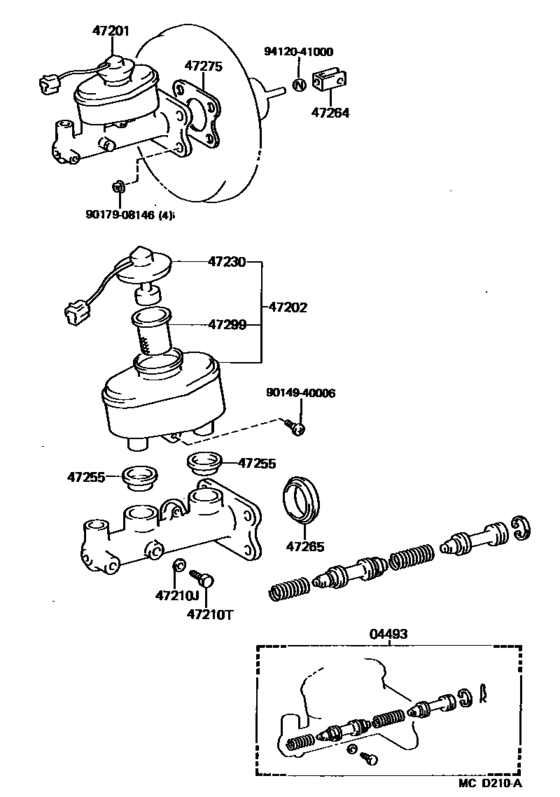

Brake Master Cylinder ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-14110
Cylinder Kit, Brake Master
[02.1986 - 08.1988] GA70..G,S |
04493-14110 |
— | ||
|
47201
|
47201
47201-14520 Cylinder Sub-Assy, Brake Master[02.1986 - 08.1988] GA70..G,S |
47201-14520 |
US $439.71 |
||
|
47202
|
47202
47202-14280 Reservoir Sub-Assy, Brake Master Cylinder[02.1986 - 08.1988] GA70..G,GT,S |
47202-14280 |
US $136.86 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[02.1986 - 08.1988] GA70,MA70 |
90430-06104 |
from US $1.60 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[02.1986 - 08.1988] GA70,MA70 |
90109-06008 |
US $0.44 |
||
|
47230
|
47230
84460-14060 Cap Assy, Brake Master Cylinder Reservoir Filler[02.1986 - 08.1988] GA70,MA70 |
84460-14060 |
US $67.85 |
||
|
47255
|
47255
47255-10010 Grommet, Master Cylinder Reservoir[02.1986 - 08.1988] GA70,MA70 |
47255-10010 |
US $9.43 |
||
|
47264
|
47264
47264-22010 Clevis, Master Cylinder Push Rod[02.1986 - 08.1988] GA70..G,S |
47264-22010 |
US $6.12 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[02.1986 - 08.1988] GA70,MA70 |
47265-20050 |
from US $4.80 |
||
|
47275
|
47275
47275-24010 Gasket, Brake Master Cylinder[02.1986 - 08.1988] GA70,MA70 |
47275-24010 |
from US $1.38 |
||
|
47299
|
47299
47299-32010 Strainer, Brake Master Cylinder Reservoir[02.1986 - 08.1988] GA70,MA70 |
47299-32010 |
US $4.89 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
from US $1.44 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
