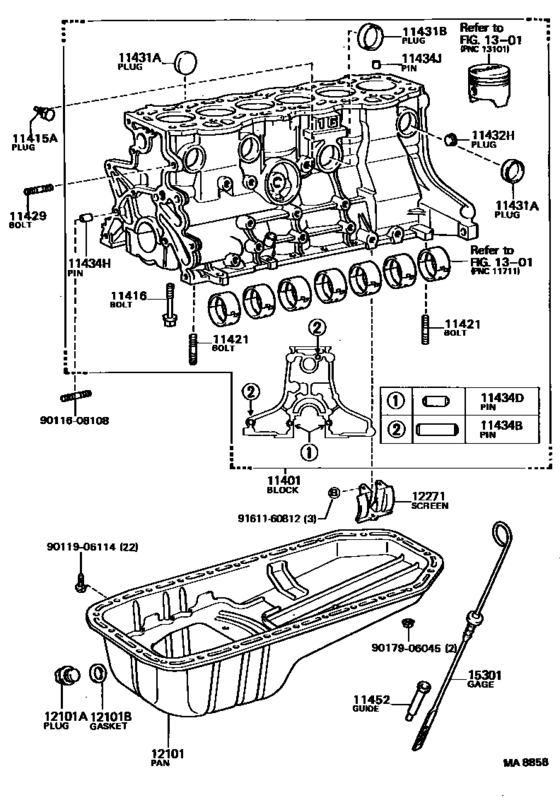

Cylinder Block ([02.1986 - ] (8602- )1GEU) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-79157 Block Sub-Assy, Cylinder[02.1986 - 04.1986] 1GEU..GA70 |
11401-79157 |
US $3,130.40 |
||
| replacements | |||||
|
11401
|
11401
11401-80021 Block Sub-assy, Cylinder[02.1986 - 04.1986] 1GEU..GA70 |
11401-80021 |
US $3,086.72 |
||
|
11401
|
11401
32921-14162 Tube, Oil Cooler Inlet, No.1[02.1986 - 04.1986] 1GEU..GA70 |
32921-14162 |
US $25.63 |
||
|
11401
|
11401
32921-22321 Tube, Oil Cooler Inlet, No.1[02.1986 - 04.1986] 1GEU..GA70 |
32921-22321 |
US $21.84 |
||
|
11401
|
11401
11401-79158 Block Sub-Assy, Cylinder[04.1986 - 01.1988] 1GEU..GA70 |
11401-79158 |
US $3,115.84 |
||
| replacements | |||||
|
11401
|
11401
11401-80021 Block Sub-assy, Cylinder[04.1986 - 01.1988] 1GEU..GA70 |
11401-80021 |
US $3,086.72 |
||
|
11401
|
11401
32921-14162 Tube, Oil Cooler Inlet, No.1[04.1986 - 01.1988] 1GEU..GA70 |
32921-14162 |
US $25.63 |
||
|
11401
|
11401
32921-22321 Tube, Oil Cooler Inlet, No.1[04.1986 - 01.1988] 1GEU..GA70 |
32921-22321 |
US $21.84 |
||
|
11401
|
11401
11401-79395 Block Sub-Assy, Cylinder[01.1988 - 07.1988] 1GEU..GA70 |
11401-79395 |
US $3,115.84 |
||
| replacements | |||||
|
11401
|
11401
11401-80025 Block Sub-Assy, Cylinder[01.1988 - 07.1988] 1GEU..GA70 |
11401-80025 |
US $3,101.28 |
||
|
11401
|
11401
32921-22321 Tube, Oil Cooler Inlet, No.1[01.1988 - 07.1988] 1GEU..GA70 |
32921-22321 |
US $21.84 |
||
|
11401
|
11401
11401-79396 Block Sub-Assy, Cylinder[07.1988 - 08.1988] 1GEU..GA70 |
11401-79396 |
US $3,115.84 |
||
| replacement | |||||
|
11401
|
11401
11401-80025 Block Sub-Assy, Cylinder[07.1988 - 08.1988] 1GEU..GA70 |
11401-80025 |
US $3,101.28 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
96431-23814 |
from US $7.29 |
||
|
11416
|
11416
90105-10028 Bolt(For Crankshaft Bearing Cap Set)[02.1986 - 08.1988] 1GEU,1GG#..GA70 *10-1.25PX67-18 |
90105-10028 |
US $3.84 |
||
|
11421
|
11421
90116-06014 Bolt, Stud(For Oil Pan)[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90116-06014 |
US $1.05 |
||
|
11429
|
11429
90116-10051 Bolt, Stud(For Alternator Bracket)[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90116-10051 |
US $2.91 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[02.1986 - 08.1988] 1GEU,1GG#..GA70 OD=35 |
96411-43500 |
from US $3.88 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[02.1986 - 08.1988] 1GEU,1GG#..GA70 OD=40 |
96411-44000 |
from US $4.17 |
||
|
11432H
|
11432H
90344-53015 Plug, W/head Taper Screw, No.1[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90344-53015 |
US $4.80 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[02.1986 - 08.1988] 1GEU,1GG#..GA70 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.03 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[02.1986 - 08.1988] 1GEU,1GG#..GA70 長さ＝１４，外径＝６ |
90250-06003 |
from US $1.05 |
||
|
11434H
|
11434H
90253-11021 Pin, Ring[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90253-11021 |
from US $1.50 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90253-13017 |
from US $1.62 |
||
|
11452
|
11452
11452-22011
Guide, Oil Level Gage
[02.1986 - 08.1988] 1GEU..GA70 |
11452-22011 |
— | ||
|
12101
|
12101
12101-70050 Pan Sub-Assy, Oil[02.1986 - 08.1988] 1GEU,1GGEU..GA70 |
12101-70050 |
US $247.52 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004
Plug(For Oil Pan Drain)
[02.1986 - 08.1988] 1GEU,1GG#..GA70 |
90341-T0004 |
— | ||
|
12101B
|
12101B
90430-12011
Gasket(For Oil Pan Drain Plug)
[02.1986 - 11.1987] 1GEU,1GG#..GA70 |
90430-12011 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[02.1986 - 11.1987] 1GEU,1GG#..GA70 |
90430-12028 |
from US $1.11 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[03.1988 - 08.1988] 1GEU..GA70 |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[03.1988 - 08.1988] 1GEU..GA70 |
90430-12028 |
from US $1.11 |
||
|
12271
|
12271
12271-70010 Screen, Oil Separator[02.1986 - 08.1988] 1GEU..GA70 |
12271-70010 |
US $19.80 |
||
|
15301
|
15301
15301-70040 Gage Sub-Assy, Oil Level[02.1986 - 08.1988] 1GEU..GA70 |
15301-70040 |
US $11.50 |
||
|
9011608108
|
9011608108
90116-08108
New Genuine Part
|
90116-08108 |
— | ||
|
9011906114
|
9011906114
90119-06114
New Genuine Part
|
90119-06114 |
— | ||
| replacement | |||||
|
9011906114
|
9011906114
90119-06206 New Genuine Part |
90119-06206 |
US $2.24 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
