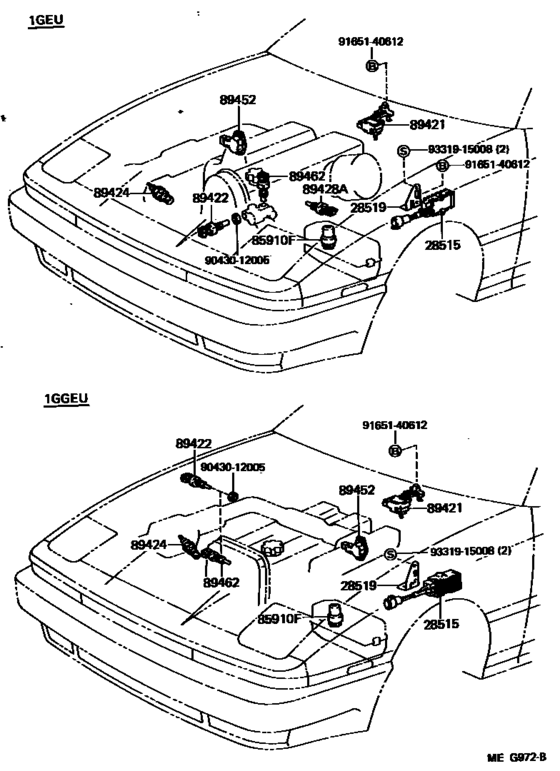

Electronic Fuel Injection System ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-70010
Resistor, Solenoid
[02.1986 - 08.1988] 1GEU,1GGTEU..GA70 |
28515-70010 |
— | ||
|
28519
|
28519
28519-70020 Bracket, Solenoid Resistor[02.1986 - 08.1988] 1GEU,1GGTEU,7MGTEU..GA70,MA70 |
28519-70020 |
US $6.26 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[02.1986 - 08.1988] GA70,MA70 |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [02.1986 - 08.1988] GA70,MA70 |
909870200483 |
US $53.75 |
||
|
89421
|
89421
89420-14030
Sensor Assy, Vacuum (For E.f.i.)
[02.1986 - 02.1988] GA70..G,GT,S |
89420-14030 |
— | ||
| replacement | |||||
|
89421
|
89421
89420-24020
Sensor Assy, Vacuum (For E.f.i.)
[02.1986 - 02.1988] GA70..G,GT,S |
89420-24020 |
— | ||
|
89421
|
89421
89420-24020
Sensor Assy, Vacuum (For E.f.i.)
[02.1988 - 08.1988] GA70..G,GT,S |
89420-24020 |
— | ||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[02.1986 - 08.1988] GA70,MA70 |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[02.1986 - 08.1988] GA70,MA70 |
89422-12010 |
from US $61.10 |
||
|
89424
|
89424
89424-28010
Sensor, Inlet Air Temperature (For E.f.i.)
[02.1986 - 08.1988] GA70..G,GT,S |
89424-28010 |
— | ||
|
89428A
|
89428A
89428-14070
Switch, Water Temperature (For E.f.i)
[02.1986 - 08.1988] GA70..G,S |
89428-14070 |
— | ||
|
89452
|
89452
89452-28040 Sensor, Throttle Position (For E.f.i.)[02.1986 - 01.1987] GA70..G,GT,S |
89452-28040 |
US $182 |
||
| replacement | |||||
|
89452
|
89452
89452-20060
Sensor, Throttle Position (For E.f.i.)
[02.1986 - 01.1987] GA70..G,GT,S |
89452-20060 |
— | ||
|
89462
|
89462
89462-40010
Switch, Start Injector Time
[02.1986 - 08.1988] GA70,MA70 |
89462-40010 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
