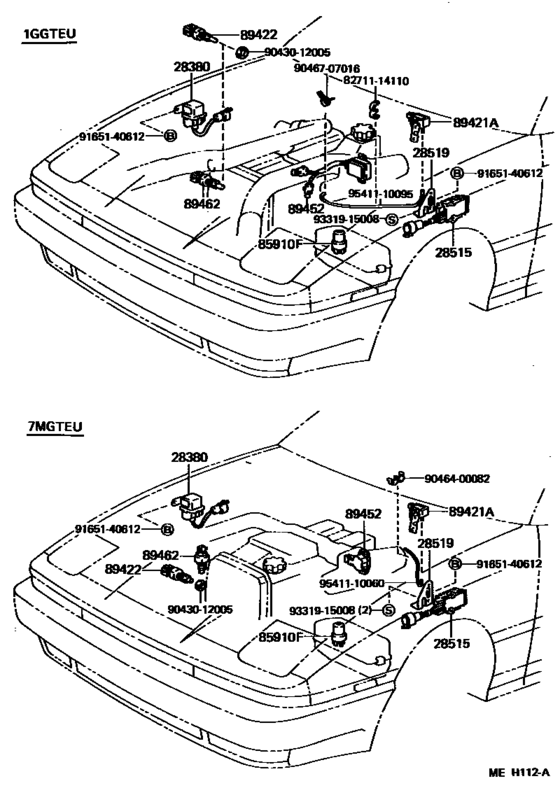

Electronic Fuel Injection System ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-70010
Resistor, Solenoid
[02.1986 - 08.1988] 1GEU,1GGTEU..GA70 |
28515-70010 |
— | ||
|
28519
|
28519
28519-70020 Bracket, Solenoid Resistor[02.1986 - 08.1988] 1GEU,1GGTEU,7MGTEU..GA70,MA70 |
28519-70020 |
US $6.26 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[02.1986 - 08.1988] GA70,MA70 |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [02.1986 - 08.1988] GA70,MA70 |
909870200483 |
US $53.75 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[02.1986 - 08.1988] GA70,MA70 |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[02.1986 - 08.1988] GA70,MA70 |
89422-12010 |
from US $61.10 |
||
|
89452
|
89452
89452-28040 Sensor, Throttle Position (For E.f.i.)[02.1986 - 01.1987] GA70..G,GT,S |
89452-28040 |
US $182 |
||
| replacement | |||||
|
89452
|
89452
89452-20060
Sensor, Throttle Position (For E.f.i.)
[02.1986 - 01.1987] GA70..G,GT,S |
89452-20060 |
— | ||
|
89462
|
89462
89462-40010
Switch, Start Injector Time
[02.1986 - 08.1988] GA70,MA70 |
89462-40010 |
— | ||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046707016
|
9046707016
90467-07016
Clip, Hose Fuel(For Injection Pump)
|
90467-07016 |
— | ||
| replacement | |||||
|
9046707016
|
9046707016
90467-07094 Clip, Hose Fuel(For Injection Pump) |
90467-07094 |
US $1.92 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9541110060
|
9541110060
95411-10060 Hose, Vacuum |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
9541110060
|
9541110060
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110095
|
9541110095
95411-10095
Hose, Vacuum, No.6 (For Front Drive Shift)
|
95411-10095 |
— | ||
| replacement | |||||
|
9541110095
|
9541110095
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $9.13 |
||
