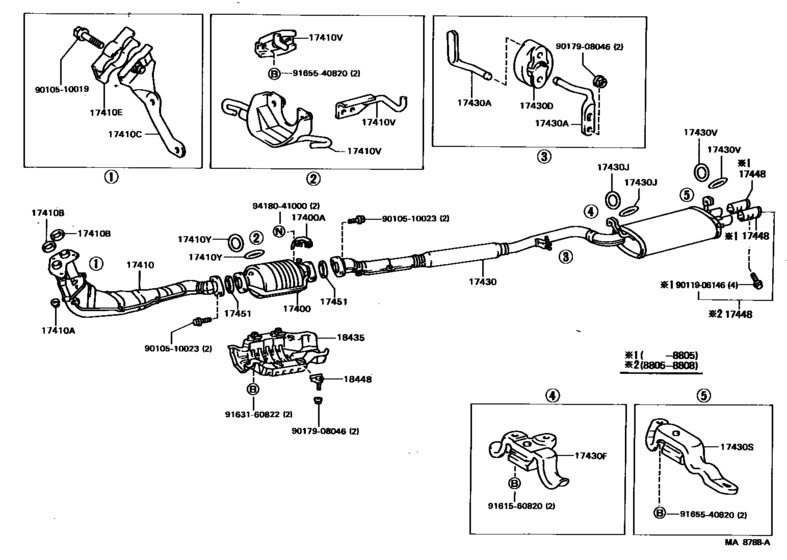

Exhaust Pipe ([02.1986 - ] (8602- )1GEU,1GGEU) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-70050 Converter Assy, W/catalyst[02.1986 - 09.1987] 1GEU,1GGEU..GA70 |
18450-70050 |
US $1,572.48 |
||
| replacement | |||||
|
17400
|
17400
18450-70070 Converter Assy, W/catalyst[02.1986 - 09.1987] 1GEU,1GGEU..GA70 |
18450-70070 |
US $1,499.68 |
||
|
17400
|
17400
18450-70060 Converter Assy, W/catalyst[09.1987 - 08.1988] 1GEU,1GGEU..GA70 |
18450-70060 |
US $1,616.16 |
||
| replacement | |||||
|
17400
|
17400
18450-70070 Converter Assy, W/catalyst[09.1987 - 08.1988] 1GEU,1GGEU..GA70 |
18450-70070 |
US $1,499.68 |
||
|
17400A
|
17400A
18491-63010 Flange, Thermosenser Inlet[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
18491-63010 |
US $11.68 |
||
|
17410
|
17410
17410-70160 Pipe Assy, Exhaust, Front[02.1986 - 08.1988] 1GEU..GA70;1GGEU..GA70..5F |
17410-70160 |
US $413.50 |
||
| replacement | |||||
|
17410
|
17410
17410-70180 Pipe Assy, Exhaust, Front[02.1986 - 08.1988] 1GEU..GA70;1GGEU..GA70..5F |
17410-70180 |
US $410.59 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[02.1986 - 08.1988] 1GEU,1GGEU..GA70 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[02.1986 - 08.1988] 1GEU,1GGEU..GA70 |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-70030 Bracket, Exhaust Pipe Front (For Front)[02.1986 - 08.1988] 1GEU,1GGEU..GA70 |
17571-70030 |
US $14.27 |
||
|
17410E
|
17410E
90917-04041 Clamp No.1, Exhaust Pipe Front (For Front)[02.1986 - 08.1988] 1GEU,1GGEU..GA70 |
90917-04041 |
US $11.79 |
||
|
17410V
|
17410V
17503-70110 Bracket, Exhaust Pipe Front (For Rear)[02.1986 - 08.1988] 1GEU,1GGEU..GA70 CCO SUPPORT |
17503-70110 |
US $41.20 |
||
|
17410V
|
17410V
17504-70030 Bracket, Exhaust Pipe Front (For Rear)[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 SIDE MEMBER |
17504-70030 |
US $18.20 |
||
|
17410V
|
17410V
17505-70080 Bracket, Exhaust Pipe Front (For Rear)[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70..4FC ENGINE REAR MOUNTING |
17505-70080 |
US $18.20 |
||
|
17410Y
|
17410Y
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
90301-36001 |
from US $5.05 |
||
|
17430
|
17430
17430-70300 Pipe Assy, Exhaust, Tail[02.1986 - 01.1987] 1GEU,1GGEU..GA70 |
17430-70300 |
US $694.51 |
||
| replacement | |||||
|
17430
|
17430
17430-70350 Pipe Assy, Exhaust, Tail[02.1986 - 01.1987] 1GEU,1GGEU..GA70 |
17430-70350 |
US $666.85 |
||
|
17430A
|
17430A
17561-70020
Bracket, Exhaust Tail Pipe(For Front)
[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 LWR |
17561-70020 |
— | ||
|
17430A
|
17430A
17572-70030
Bracket, Exhaust Tail Pipe(For Front)
[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 UPR |
17572-70030 |
— | ||
|
17430D
|
17430D
17565-16020 Bolt Or Ring, Exhaust Pipe Front (For Front)[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
17565-16020 |
US $16.95 |
||
|
17430F
|
17430F
17508-13010
Bracket, Exhaust Tail Pipe(For Center)
[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
17508-13010 |
— | ||
|
17430J
|
17430J
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
90301-36001 |
from US $5.05 |
||
|
17430S
|
17430S
17508-26100
Bracket, Exhaust Tail Pipe (For Rear)
[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
17508-26100 |
— | ||
|
17430V
|
17430V
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
90301-36001 |
from US $5.05 |
||
|
17448
|
17448
17448-74030
Baffle, Tail Pipe
[02.1986 - 05.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
17448-74030 |
— | ||
| replacement | |||||
|
17448
|
17448
17448-79015 Baffle, Tail Pipe[02.1986 - 05.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
17448-79015 |
US $53.99 |
||
|
17448
|
17448
17448-79015 Baffle, Tail Pipe[05.1988 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
17448-79015 |
US $53.99 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[02.1986 - 08.1988] 1GEU,1GGEU..GA70 RR |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[02.1986 - 08.1988] 1GEU,1GGEU..GA70 RR |
90917-06045 |
from US $1.70 |
||
|
17451
|
17451
90917-06023
Gasket, Exhaust Pipe
[02.1986 - 08.1988] 1GEU,1GGEU..GA70 FR |
90917-06023 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06041 Gasket, Exhaust Pipe[02.1986 - 08.1988] 1GEU,1GGEU..GA70 FR |
90917-06041 |
from US $6.20 |
||
|
18435
|
18435
18407-28011 Protector, Catalytic Converter[02.1986 - 01.1987] 1GEU,1GGEU..GA70 |
18407-28011 |
US $46.88 |
||
|
18435
|
18435
18407-70010 Protector, Catalytic Converter[01.1987 - 08.1988] 1GEU,1GGEU..GA70 |
18407-70010 |
US $68.72 |
||
| replacement | |||||
|
18435
|
18435
18407-42010 Protector, Catalytic Converter[01.1987 - 08.1988] 1GEU,1GGEU..GA70 |
18407-42010 |
US $69.77 |
||
|
18448
|
18448
18448-43010 Bracket, Converter Protector, Center[02.1986 - 08.1988] 1GEU,1GG#,7MGTEU..GA70,MA70 |
18448-43010 |
US $7.68 |
||
|
9010510019
|
9010510019
90105-10019 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90105-10019 |
US $4.80 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906146
|
9011906146
90119-06146 New Genuine Part |
90119-06146 |
US $1.02 |
||
|
9017908046
|
9017908046
90179-08046 New Genuine Part |
90179-08046 |
US $3.20 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9163160822
|
9163160822
91631-60822 BOLT |
91631-60822 |
US $1.12 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
