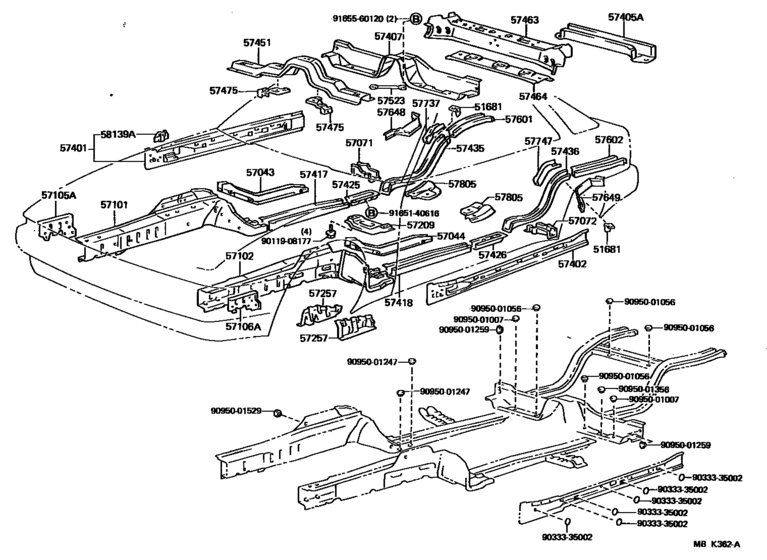

Floor Side Member ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51681
|
51681
51681-14010 Bracket, Flexible Hose[02.1986 - 08.1988] GA70,MA70 |
51681-14010 |
US $8.30 |
||
|
57071
|
57071
57071-14040 Box Sub-Assy, Torque, Rear Rh[02.1986 - 08.1988] GA70,MA70 |
57071-14040 |
US $132.50 |
||
|
57072
|
57072
57072-14040 Box Sub-Assy, Torque, Rear Lh[02.1986 - 08.1988] GA70,MA70 |
57072-14040 |
US $132.50 |
||
|
57101
|
57101
57101-14902 Member Sub-Assy, Front Side, Rh[02.1986 - 08.1988] GA70,MA70..LB |
57101-14902 |
US $457.18 |
||
|
57102
|
57102
57102-14902 Member Sub-Assy, Front Side, Lh[02.1986 - 08.1988] GA70,MA70..LB |
57102-14902 |
US $463.01 |
||
| replacement | |||||
|
57102
|
57102
57102-14905 Member Sub-Assy, Front Side, Lh[02.1986 - 08.1988] GA70,MA70..LB |
57102-14905 |
US $487.76 |
||
|
57105A
|
57105A
57105-14020 Plate Sub-Assy, Front Side Member, Rh[02.1986 - 08.1988] GA70,MA70 |
57105-14020 |
US $45.72 |
||
|
57106A
|
57106A
57106-14010 Plate Sub-Assy, Front Side Member, Lh[02.1986 - 08.1988] GA70,MA70 |
57106-14010 |
US $45.72 |
||
|
57209
|
57209
57209-14320 Member Sub-Assy, Engine Rear Support[02.1986 - 08.1988] MA70; GA70..4FC |
57209-14320 |
US $74.26 |
||
|
57257
|
57257
57257-14060 Bracket, Engine Rear Support Member[02.1986 - 08.1988] GA70,MA70 RH |
57257-14060 |
US $24.90 |
||
|
57257
|
57257
57258-14060 Bracket, Engine Rear Support Member[02.1986 - 08.1988] GA70,MA70 LH |
57258-14060 |
US $24.90 |
||
|
57401
|
57401
57401-14230 Member Sub-Assy, Main Floor Side, Rh[02.1986 - 08.1988] GA70,MA70..LB |
57401-14230 |
US $301.39 |
||
|
57402
|
57402
57402-14210 Member Sub-Assy, Main Floor Side, Lh[02.1986 - 08.1988] GA70,MA70..LB |
57402-14210 |
US $301.39 |
||
|
57405A
|
57405A
57405-14070 Member Sub-Assy, Center Floor Cross, No.2[02.1986 - 08.1988] GA70,MA70 |
57405-14070 |
US $88.82 |
||
|
57407
|
57407
57407-14020
Cross Member Sub-Assy, Center Floor, No.1
[02.1986 - 08.1988] GA70,MA70 |
57407-14020 |
— | ||
|
57417
|
57417
57417-14060
Reinforcement, Front Floor Under, Rh
[02.1986 - 08.1988] GA70,MA70 |
57417-14060 |
— | ||
|
57418
|
57418
57418-14060
Reinforcement, Front Floor Under, Lh
[02.1986 - 08.1988] GA70,MA70 |
57418-14060 |
— | ||
|
57425
|
57425
57426-14030
Reinforcement, Front Floor, No.2 Rh
[02.1986 - 08.1988] GA70,MA70 |
57426-14030 |
— | ||
|
57426
|
57426
57426-14030
Reinforcement, Front Floor, No.2 Rh
[02.1986 - 08.1988] GA70,MA70 |
57426-14030 |
— | ||
|
57435
|
57435
57435-14060 Member, Center Floor Side, Rh[02.1986 - 08.1988] GA70,MA70 |
57435-14060 |
US $147.06 |
||
|
57436
|
57436
57436-14050 Member, Center Floor Side, Lh[02.1986 - 08.1988] GA70,MA70 |
57436-14050 |
US $147.06 |
||
|
57451
|
57451
57451-14040 Member, Front Floor Cross[02.1986 - 08.1988] GA70,MA70 |
57451-14040 |
US $90.27 |
||
|
57463
|
57463
57463-14050 Member, Center Floor Cross, No.3[02.1986 - 08.1988] GA70,MA70 |
57463-14050 |
US $171.81 |
||
|
57464
|
57464
57464-14020 Strength, Center Floor Crossmember[02.1986 - 08.1988] GA70,MA70 |
57464-14020 |
US $69.01 |
||
|
57475
|
57475
58103-14010 Plate, Front Floor Crossmember[02.1986 - 08.1988] GA70,MA70 RH |
58103-14010 |
US $19.22 |
||
|
57475
|
57475
58104-14010 Plate, Front Floor Crossmember[02.1986 - 08.1988] GA70,MA70 LH |
58104-14010 |
US $27.23 |
||
|
57523
|
57523
57523-14010 Brace, Center Floor Crossmember[02.1986 - 08.1988] GA70,MA70 |
57523-14010 |
US $18.93 |
||
|
57601
|
57601
57601-14150 Member Sub-Assy, Rear Floor Side, Rh[08.1986 - 08.1988] GA70,MA70 |
57601-14150 |
US $254.80 |
||
|
57601
|
57601
57601-14160 Member Sub-Assy, Rear Floor Side, Rh[02.1986 - 08.1986] GA70,MA70 |
57601-14160 |
US $253.34 |
||
| replacement | |||||
|
57601
|
57601
57601-14150 Member Sub-Assy, Rear Floor Side, Rh[02.1986 - 08.1986] GA70,MA70 |
57601-14150 |
US $254.80 |
||
|
57602
|
57602
57602-14140 Member Sub-Assy, Rear Floor Side, Lh[08.1986 - 08.1988] GA70,MA70 |
57602-14140 |
US $254.80 |
||
|
57602
|
57602
57602-14150 Member Sub-Assy, Rear Floor Side, Lh[02.1986 - 08.1986] GA70,MA70 |
57602-14150 |
US $253.34 |
||
| replacement | |||||
|
57602
|
57602
57602-14140 Member Sub-Assy, Rear Floor Side, Lh[02.1986 - 08.1986] GA70,MA70 |
57602-14140 |
US $254.80 |
||
|
57648
|
57648
57648-14010 Gusset, Quarter Wheel House, No.1 Rh[02.1986 - 08.1988] GA70,MA70 |
57648-14010 |
US $31.74 |
||
|
57649
|
57649
57649-14010 Gusset, Quarter Wheel House, No.1 Lh[02.1986 - 08.1988] GA70,MA70 |
57649-14010 |
US $31.74 |
||
|
57737
|
57737
57737-14020 Reinforcement, Differential Support Member Mounting, Rh[02.1986 - 08.1988] GA70,MA70 |
57737-14020 |
US $67.70 |
||
|
57747
|
57747
57747-14020 Reinforcement, Differential Support Member Mounting, Lh[02.1986 - 08.1988] GA70,MA70 |
57747-14020 |
US $67.70 |
||
|
57805
|
57805
57805-14040 Reinforcement Sub-Assy, Belt Anchor[02.1986 - 08.1988] GA70,MA70 RH |
57805-14040 |
US $34.94 |
||
|
57805
|
57805
57806-14040 Reinforcement Sub-Assy, Belt Anchor[02.1986 - 08.1988] GA70,MA70 LH |
57806-14040 |
US $34.94 |
||
|
58139A
|
58139A
58139-14010 Plate, Front Floor Side, Rear Rh[02.1986 - 08.1988] GA70,MA70 |
58139-14010 |
US $6.26 |
||
|
9011908177
|
9011908177
90119-08177
New Genuine Part
|
90119-08177 |
— | ||
| replacement | |||||
|
9011908177
|
9011908177
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.96 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9095001007
|
9095001007
90950-01007 New Genuine Part |
90950-01007 |
US $3.35 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001247
|
9095001247
90950-01247 New Genuine Part |
90950-01247 |
US $1.31 |
||
|
9095001259
|
9095001259
90950-01259 PLUG |
90950-01259 |
from US $1.92 |
||
|
9095001356
|
9095001356
90950-01356
New Genuine Part
|
90950-01356 |
— | ||
| replacement | |||||
|
9095001356
|
9095001356
90950-01976 New Genuine Part |
90950-01976 |
US $1.60 |
||
|
9095001529
|
9095001529
90950-01529 New Genuine Part |
90950-01529 |
US $5.53 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165560120
|
9165560120
91655-60120
New Genuine Part
|
91655-60120 |
— | ||
