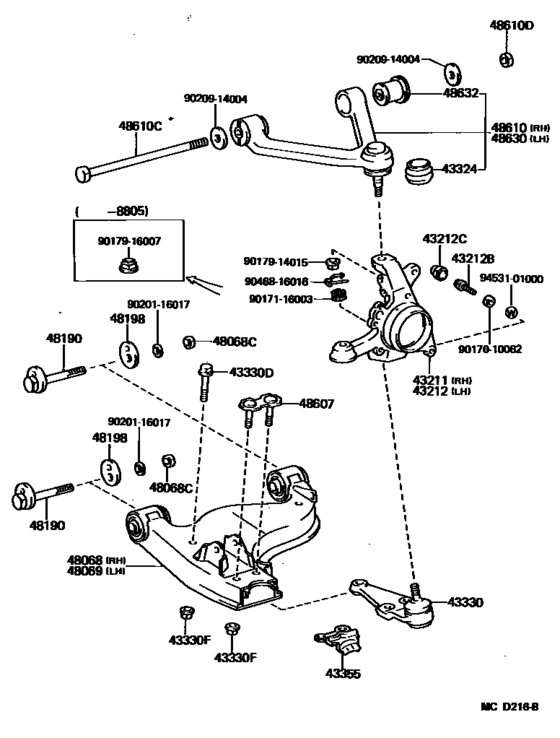

Front Axle Arm & Steering Knuckle ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-14061 Knuckle, Steering, Rh[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S |
43211-14061 |
US $224.22 |
||
|
43212
|
43212
43212-14031
Knuckle, Steering, Lh
[02.1986 - 08.1988] GA70,MA70..G,GT,GTT,S |
43212-14031 |
— | ||
|
43212B
|
43212B
90106-10002
Bolt (For Front Knuckle Stopper)
[02.1986 - 08.1988] GA70,MA70 |
90106-10002 |
— | ||
|
43212C
|
43212C
45619-14020 Cover, Front Knuckle Stopper[02.1986 - 08.1988] GA70,MA70 |
45619-14020 |
from US $5.11 |
||
|
43324
|
43324
43324-14010 Cover, Upper Joint Dust[02.1986 - 08.1988] GA70,MA70 |
43324-14010 |
US $10.72 |
||
|
43330
|
43330
43330-19055 Joint Assy, Lower Ball, Front[02.1986 - 05.1988] GA70,MA70 |
43330-19055 |
US $85.90 |
||
| replacement | |||||
|
43330
|
43330
43330-19057 Joint Assy, Lower Ball, Front[02.1986 - 05.1988] GA70,MA70 |
43330-19057 |
US $106.56 |
||
|
43330
|
43330
43330-19056
Joint Assy, Lower Ball, Front
[05.1988 - 08.1988] GA70,MA70 |
43330-19056 |
— | ||
| replacement | |||||
|
43330
|
43330
43330-19057 Joint Assy, Lower Ball, Front[05.1988 - 08.1988] GA70,MA70 |
43330-19057 |
US $106.56 |
||
|
43330D
|
43330D
90105-14045
Bolt (For Front Lower Ball Joint)
[02.1986 - 08.1988] GA70,MA70 |
90105-14045 |
— | ||
|
43330F
|
43330F
90179-14025 Nut (For Front Lower Ball Joint Setting)[02.1986 - 08.1988] GA70,MA70 |
90179-14025 |
from US $1.92 |
||
|
43355
|
43355
43355-14020 Deflector, Lower Arm Ice, Rh[02.1986 - 08.1988] GA70,MA70 |
43355-14020 |
US $15 |
||
|
48068
|
48068
48068-14040 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[02.1986 - 01.1988] GA70..G,GT,S |
48068-14040 |
US $256.26 |
||
| replacement | |||||
|
48068
|
48068
48068-14041
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[02.1986 - 01.1988] GA70..G,GT,S |
48068-14041 |
— | ||
|
48068
|
48068
48068-14041
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[01.1988 - 08.1988] GA70..G,GT,S |
48068-14041 |
— | ||
|
48068C
|
48068C
94115-71600
Nut(For Front Suspension Lower Arm)
[02.1986 - 08.1988] GA70,MA70 |
94115-71600 |
— | ||
| replacement | |||||
|
48068C
|
48068C
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)[02.1986 - 08.1988] GA70,MA70 |
94130-01602 |
from US $1.05 |
||
|
48069
|
48069
48069-14040
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[02.1986 - 01.1988] GA70..G,GT,S |
48069-14040 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-14041
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[02.1986 - 01.1988] GA70..G,GT,S |
48069-14041 |
— | ||
|
48069
|
48069
48069-14041
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[01.1988 - 08.1988] GA70..G,GT,S |
48069-14041 |
— | ||
|
48190
|
48190
48190-14020 Cam Assy, Camber Adjust[02.1986 - 08.1988] GA70,MA70 RR |
48190-14020 |
from US $16.26 |
||
|
48190
|
48190
48190-14030 Cam Assy, Camber Adjust[02.1986 - 08.1988] GA70,MA70 FR |
48190-14030 |
US $16.26 |
||
|
48198
|
48198
48198-14020 Cam, Camber Adjust, No.2[02.1986 - 08.1988] GA70,MA70 RR |
48198-14020 |
from US $4.16 |
||
|
48198
|
48198
48198-14030 Cam, Camber Adjust, No.2[02.1986 - 08.1988] GA70,MA70 FR |
48198-14030 |
US $4.80 |
||
|
48607
|
48607
48607-14011
Plate Sub-Assy, Lower Arm Attachment
[02.1986 - 08.1988] GA70,MA70 |
48607-14011 |
— | ||
|
48610
|
48610
48610-14010
Arm Assy, Front Suspension Upper, Rh
[02.1986 - 08.1988] GA70,MA70 |
48610-14010 |
— | ||
| replacement | |||||
|
48610
|
48610
48610-19015
Arm Assy, Front Suspension Upper, Rh
[02.1986 - 08.1988] GA70,MA70 |
48610-19015 |
— | ||
|
48610C
|
48610C
90101-14029
Bolt(For Suspension Upper Arm)
[02.1986 - 08.1988] GA70,MA70 |
90101-14029 |
— | ||
|
48610D
|
48610D
90170-14006 Nut[02.1986 - 08.1988] GA70,MA70 |
90170-14006 |
from US $1.92 |
||
|
48630
|
48630
48630-14010 Arm Assy, Front Suspension, Upper Lh[02.1986 - 08.1988] GA70,MA70 |
48630-14010 |
US $429.52 |
||
| replacement | |||||
|
48630
|
48630
48630-19015
Arm Assy, Front Suspension, Upper Lh
[02.1986 - 08.1988] GA70,MA70 |
48630-19015 |
— | ||
|
48632
|
48632
48632-14010 Bush, Upper Arm[02.1986 - 08.1988] GA70,MA70 |
48632-14010 |
US $21.13 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9017116003
|
9017116003
90171-16003 Nut, Castle (For Front Lower Ball Joint Setting) |
90171-16003 |
US $2.56 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.09 |
||
|
9017916007
|
9017916007
90179-16007 New Genuine Part |
90179-16007 |
US $3.64 |
||
|
9020116017
|
9020116017
90201-16017 WASHER |
90201-16017 |
from US $2.63 |
||
|
9020914004
|
9020914004
90209-14004 New Genuine Part |
90209-14004 |
US $6.84 |
||
|
9046816016
|
9046816016
90468-16016 CLIP |
90468-16016 |
from US $1.12 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
