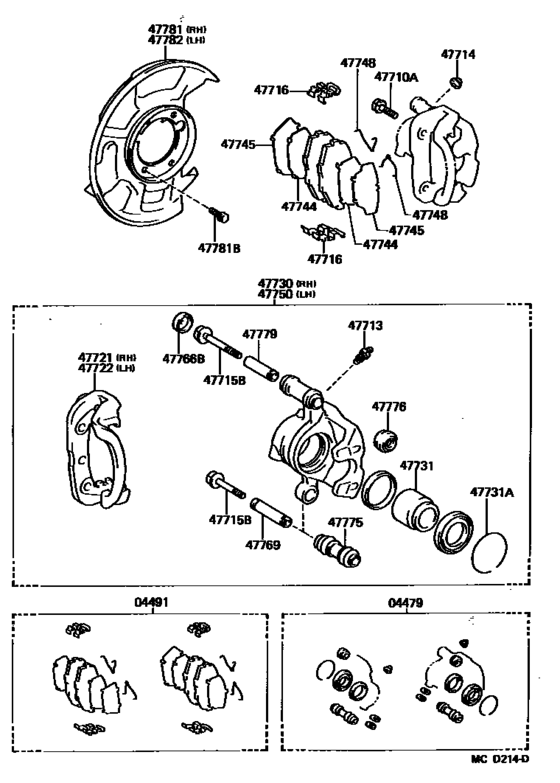

Front Disc Brake Caliper & Dust Cover ([02.1986 - ] (8602- )) Diagram Toyota SUPRA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- GA70
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- Model
- SUPRA 70
- From
- 02.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-14100 Cylinder Kit, Disc Brake, Front[02.1986 - 08.1988] GA70,MA70 |
04479-14100 |
US $36.48 |
||
|
04491
|
04491
04491-14220 Pad Kit, Disc Brake, Front[02.1986 - 06.1987] GA70..G,S |
04491-14220 |
US $151.42 |
||
| replacement | |||||
|
04491
|
04491
04465-14370 Pad Kit, Disc Brake, Front[02.1986 - 06.1987] GA70..G,S |
04465-14370 |
US $109.78 |
||
|
04491
|
04491
04491-14221 Pad Kit, Disc Brake, Front[06.1987 - 03.1988] GA70..G,S |
04491-14221 |
US $163.07 |
||
| replacement | |||||
|
04491
|
04491
04465-14370 Pad Kit, Disc Brake, Front[06.1987 - 03.1988] GA70..G,S |
04465-14370 |
US $109.78 |
||
|
04491
|
04491
04491-14250 Pad Kit, Disc Brake, Front[03.1988 - 08.1988] GA70..G,S |
04491-14250 |
US $151.42 |
||
| replacement | |||||
|
04491
|
04491
04465-14370 Pad Kit, Disc Brake, Front[03.1988 - 08.1988] GA70..G,S |
04465-14370 |
US $109.78 |
||
|
47710A
|
47710A
90119-12058 Bolt, Hexagon(For Front Disc Brake Caliper)[02.1986 - 08.1988] GA70,MA70 ＊１２−１．２５ＰＸ３１−２０ |
90119-12058 |
from US $2.22 |
||
|
47713
|
47713
47547-20010 Plug, Bleeder(For Release Cylinder)[02.1986 - 08.1988] GA70,MA70 |
47547-20010 |
from US $3.20 |
||
|
47714
|
47714
31478-30010 Bleeder Plug Cap[02.1986 - 08.1988] GA70,MA70 |
31478-30010 |
from US $1.66 |
||
|
47715B
|
47715B
90105-10141 Bolt(For Front Disc Brake Cylinder Slide)[02.1986 - 08.1988] GA70,MA70 UPR |
90105-10141 |
US $3.32 |
||
|
47715B
|
47715B
90119-10403
Bolt(For Front Disc Brake Cylinder Slide)
[02.1986 - 08.1988] GA70,MA70 LWR |
90119-10403 |
— | ||
|
47716
|
47716
47716-14110 Plate, Pad Support, No.1(For Front Disc Brake)[02.1986 - 08.1988] GA70..G,S |
47716-14110 |
US $8.01 |
||
|
47721
|
47721
47721-14090 Mounting, Front Disc Brake Cylinder, Rh[02.1986 - 08.1988] GA70..G,S |
47721-14090 |
US $149.97 |
||
|
47722
|
47722
47721-14090 Mounting, Front Disc Brake Cylinder, Rh[02.1986 - 08.1988] GA70..G,S |
47721-14090 |
US $149.97 |
||
|
47730
|
47730
47730-14160 Cylinder Assy, Front Disc Brake, Rh[02.1986 - 08.1988] GA70..G,S |
47730-14160 |
US $647.92 |
||
|
47731
|
47731
47731-28020 Piston, Front Disc Brake[02.1986 - 08.1988] GA70,MA70 |
47731-28020 |
US $48.03 |
||
|
47731A
|
47731A
90522-67001 Ring, Set(For Front Disc Brake Piston)[02.1986 - 08.1988] GA70,MA70 |
90522-67001 |
US $3.32 |
||
|
47744
|
47744
47744-14100
Shim, Anti-Squeal, No.1(For Front Disc Brake)
[02.1986 - 06.1987] GA70,MA70 |
47744-14100 |
— | ||
|
47744
|
47744
47744-14120
Shim, Anti-Squeal, No.1(For Front Disc Brake)
[06.1987 - 08.1988] GA70,MA70 |
47744-14120 |
— | ||
|
47745
|
47745
47745-14030
Shim, Anti-Squeal, No.1(For Front Disc Brake)
[02.1986 - 06.1987] GA70,MA70 |
47745-14030 |
— | ||
|
47745
|
47745
47745-14050
Shim, Anti-Squeal, No.1(For Front Disc Brake)
[06.1987 - 08.1988] GA70,MA70 |
47745-14050 |
— | ||
|
47748
|
47748
47748-14070 Spring, Anti-Rattle, No.1(For Front Disc Brake)[02.1986 - 08.1988] GA70,MA70 |
47748-14070 |
US $4.80 |
||
|
47750
|
47750
47750-14180 Cylinder Assy, Disc Brake, Lh[02.1986 - 08.1988] GA70..G,S |
47750-14180 |
US $647.92 |
||
|
47766B
|
47766B
47766-14010 Cap, Cylinder Slide Pin[02.1986 - 08.1988] GA70,MA70 |
47766-14010 |
US $4.80 |
||
|
47769
|
47769
47769-28020 Bush, Cylinder Slide, No.1(For Front Disc Brake)[02.1986 - 08.1988] GA70,MA70 |
47769-28020 |
from US $7.04 |
||
|
47775
|
47775
47775-28020 Boot, Bush Dust(For Front Disc Brake)[02.1986 - 08.1988] GA70,MA70 |
47775-28020 |
from US $6.61 |
||
|
47776
|
47776
47776-14020 Boot, Main Pin(For Front Disc Brake)[02.1986 - 03.1987] GA70,MA70 |
47776-14020 |
US $5.53 |
||
|
47776
|
47776
47776-20010 Boot, Pin[03.1987 - 08.1988] GA70,MA70 |
47776-20010 |
US $8.30 |
||
|
47779
|
47779
47779-14020 Bush, Cylinder Slide, No.1(For Front Disc Brake)[02.1986 - 08.1988] GA70,MA70 |
47779-14020 |
US $11.53 |
||
|
47781
|
47781
47781-14100
Cover, Disc Brake Dust, Front Rh
[02.1986 - 08.1988] GA70,MA70 |
47781-14100 |
— | ||
|
47781B
|
47781B
90119-08571 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[02.1986 - 08.1988] GA70,MA70 ＊８−１．２５ＰＸ１８−５．５ |
90119-08571 |
US $1.92 |
||
|
47782
|
47782
47782-14100
Cover, Disc Brake Dust, Front Lh
[02.1986 - 08.1988] GA70,MA70 |
47782-14100 |
— | ||
